Chenbro RM238 Series - Air Baffle Removal and Installation

RM238 Series
System Components Removal and Installation │ 36

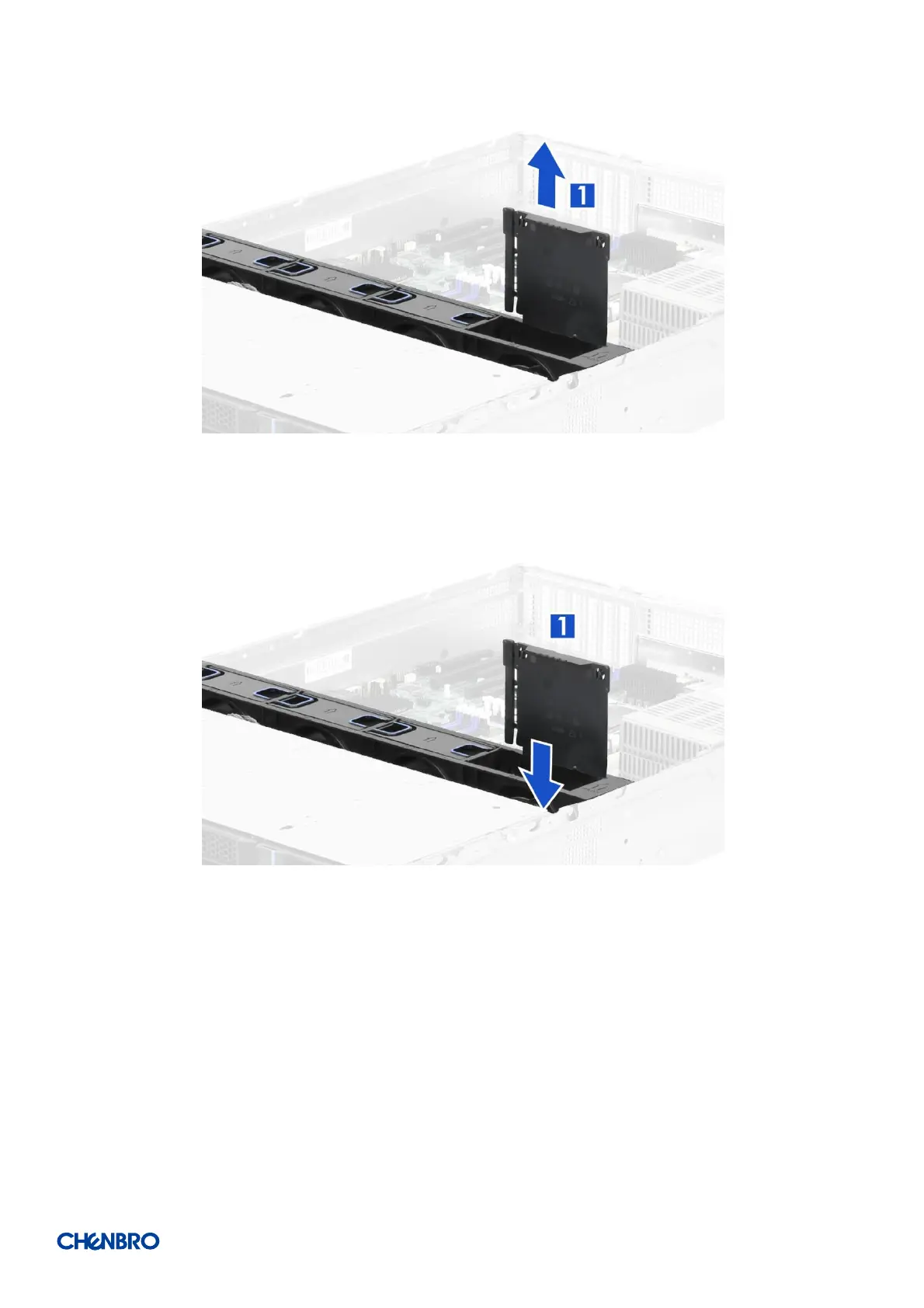

Figure 52 Air baffle removal
1. Pull out the air baffle from the fan cage.
Figure 53 Air baffle installation
1. Insert the air baffle into the fan cage until it is secured into place.
