RM238 Series
System Components Removal and Installation ā 39
2-9 Full-height PCIe Card Installation

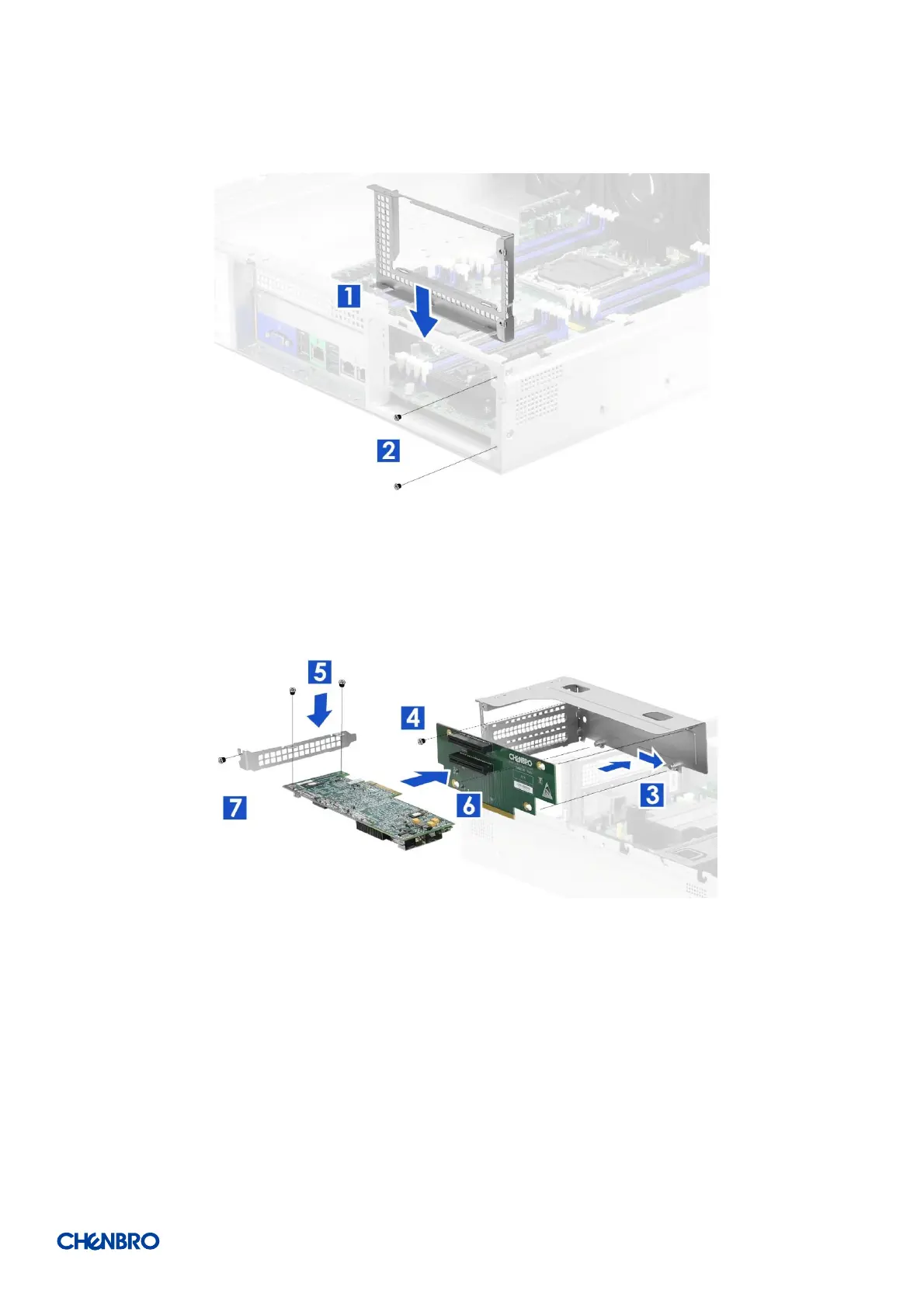

Figure 57 Full-height back panel bracket installation
1. Replace the low-profile back panel bracket with the full-height one.
2. Secure the bracket with two screws as shown.
Figure 58 Cards and brackets installation
3. Align the three screw holes of the riser card with T nails on the bracket, and slide the riser card into place as shown.
4. Secure the riser card with one screw.
5. Ensure the alignment of the two screw holes of PCIe slot bracket with the PCIe card matched, and secure them with screws.
6. Insert the PCIe card into the slot on the riser card.
7. Secure the PCIe slot bracket and the riser card bracket by one screw.
