Table 28 Expander board specifications
Specification
Host Interface
SFF-8680
Device Interface
Mini-SAS HD (to 8-port BP)/Board docking (to 16-port BP)
Hot-Swap
Yes, allows users to replace storage devices online
Environment Monitor
Temperature sensor TMP75 (U3)
Connector
1. 5 x Mini-SAS HD
2. 1 x 8-pin ATX Mini-Fit power connector for +12V only
3. 5 x 4-pin fan
4. 2 x 4-pin I2C
5. 1 x 8-pin SMD switch
Dimension (L x W x H)
250.0 x 67.8 x 1.6 (mm)
Material
FR4 8 layers

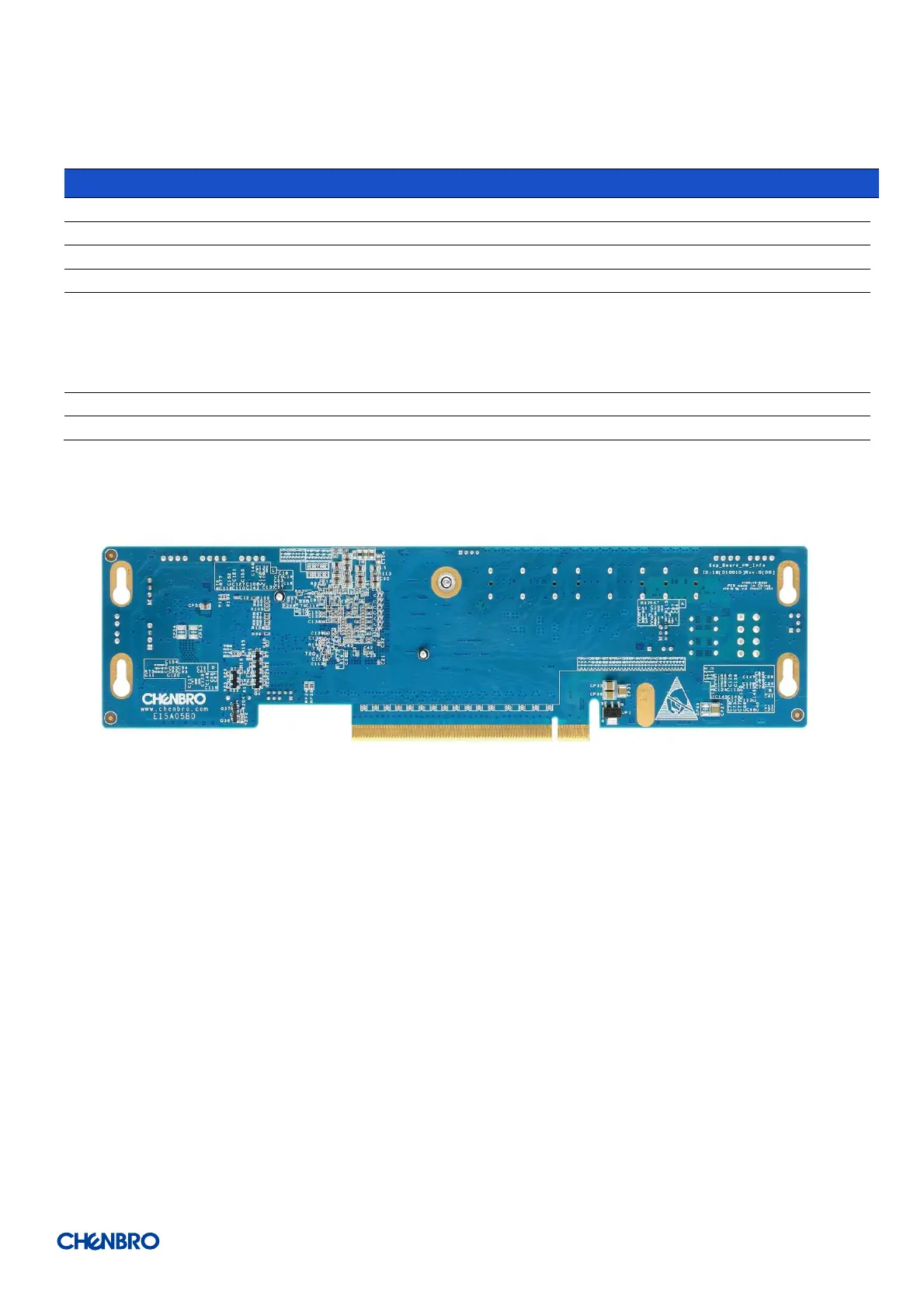

Figure 84 Expander board rear view
