2.1 Site and Utility
Requirements
Figure 2-1 shows the clearances required for
the spreader/feeder. The dimensions noted are the
minimums recommended for efficient production
and service, as well as maintenance access. It is
strongly recommended that enough clear space
be provided around the spreader/feeder to allow
for efficient access.
NOTE: The correct location of
the spreader/feeder is of extreme
importance.
The site must have a level, sturdy floor capable
of supporting the spreader/feeder’s weight without
significant flexing. For weight specifications
and other technical information refer to the
APPENDIX, Technical Specifications.
No special foundation, floor grouting, or
installation of anchors is required. Generally, the
locking floor pads will hold the spreader/feeder
in position and still allow for repositioning when
necessary.
Floor grouting or installation of anchors
may be required to comply with local codes or
conditions, or aboard a ship.
NOTE: The floor
must be level
for the optional Easi-Glide to
function properly.

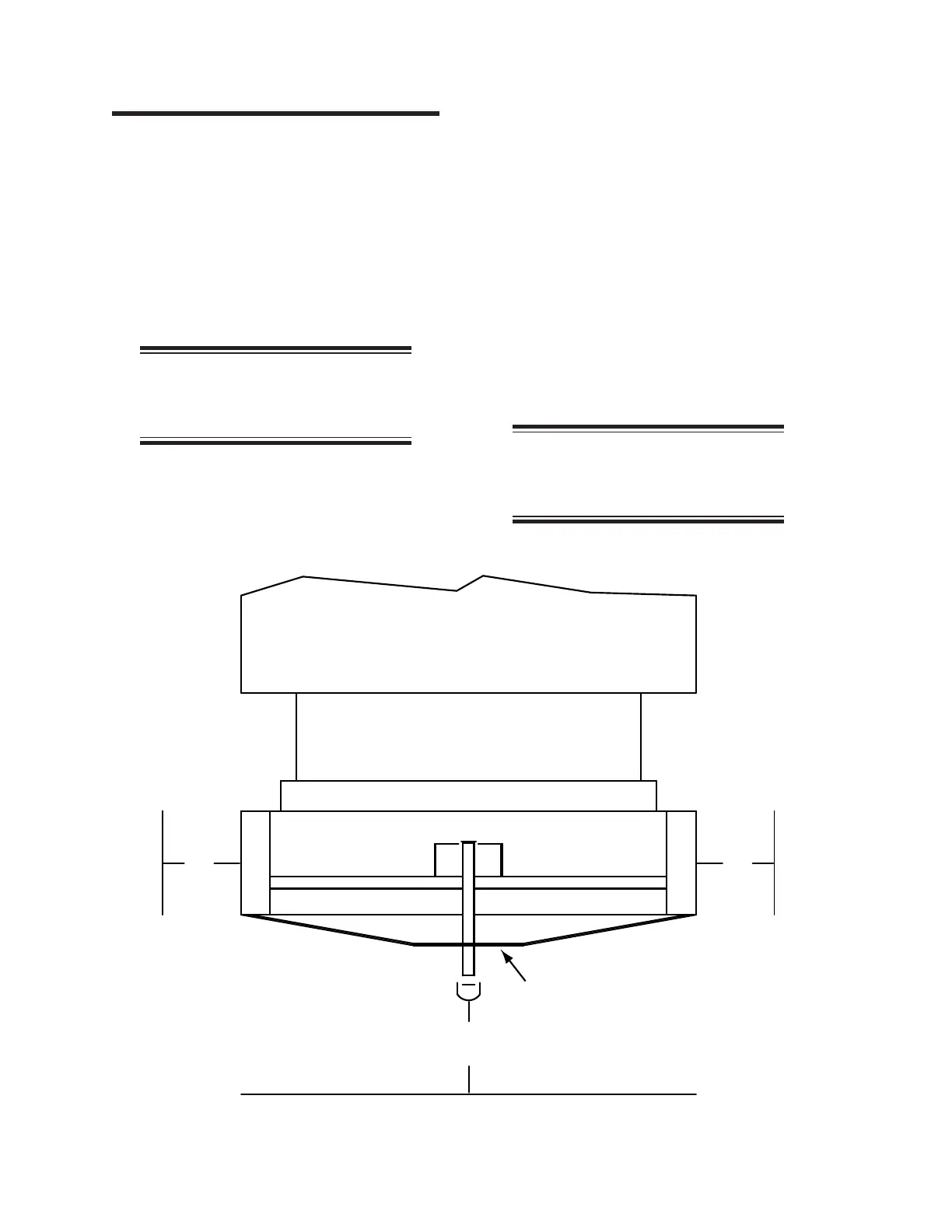

Figure 2-1: Recommended clearances for installation of the Edge/Edge Blanket
Ironer/Folder
Chicago Edge/Edge Blanket
36”
915 mm
36”
915 mm
72”
1830 mm
Input
