Edge/Edge Blanket Preventive Maintenance
4-11
Clean Air Filter/Regulator/Drain
The air filter/regulator with auto drain requires
periodic cleaning to maintain maximum filtering
efficiency and to avoid excessive pressure drop.
The cleaner the compressed air supply, the less
maintenance will be required. A visible coating
of dirt or condensate on the filter element surface
or excessive pressure drop is an indication that
cleaning is necessary.
WARNING
Before disassembling the air
filter/regulator, turn off the air
supply and depressurize the
system and filter.
Required Tools
compressed air, mild detergent
solution, alcohol
Perform only when the unit is OFF
with power disconnected.
Turn off the compressed air supply and
depressurize the unit.
Turn the power OFF at the main discon
-
nect switch.
Press the tab on the side of the plastic
case (Figure 4-14, A) and rotate it 1/4
turn to the left to remove it from the base
(Figure 4-14, B). The base does not need
to be removed from the machine.
Unscrew the polyurethane bowl (Figure
4-15, B) and rinse with ONLY water and
household soap.
Unscrew the filter assembly and separate
the components (Figure 4-15, D, E, F).
Remove the filter element (Figure 4-15,
E), wash it in alcohol, and blow it out
from the inside.
1.
2.
3.
4.
5.
6.
Clean the other components (Figure 4-15,
A, D, F) with alcohol.
Assemble the clean components and in
-
stall the air filter assembly (Figure 4-15,
D, E, F) back on to the base (C).
Attach the clean polyurethane bowl
(Figure 4-15, B).
Screw the plastic case (Figure 4-15, A)
back on to the assembly.
7.
8.
9.
10.

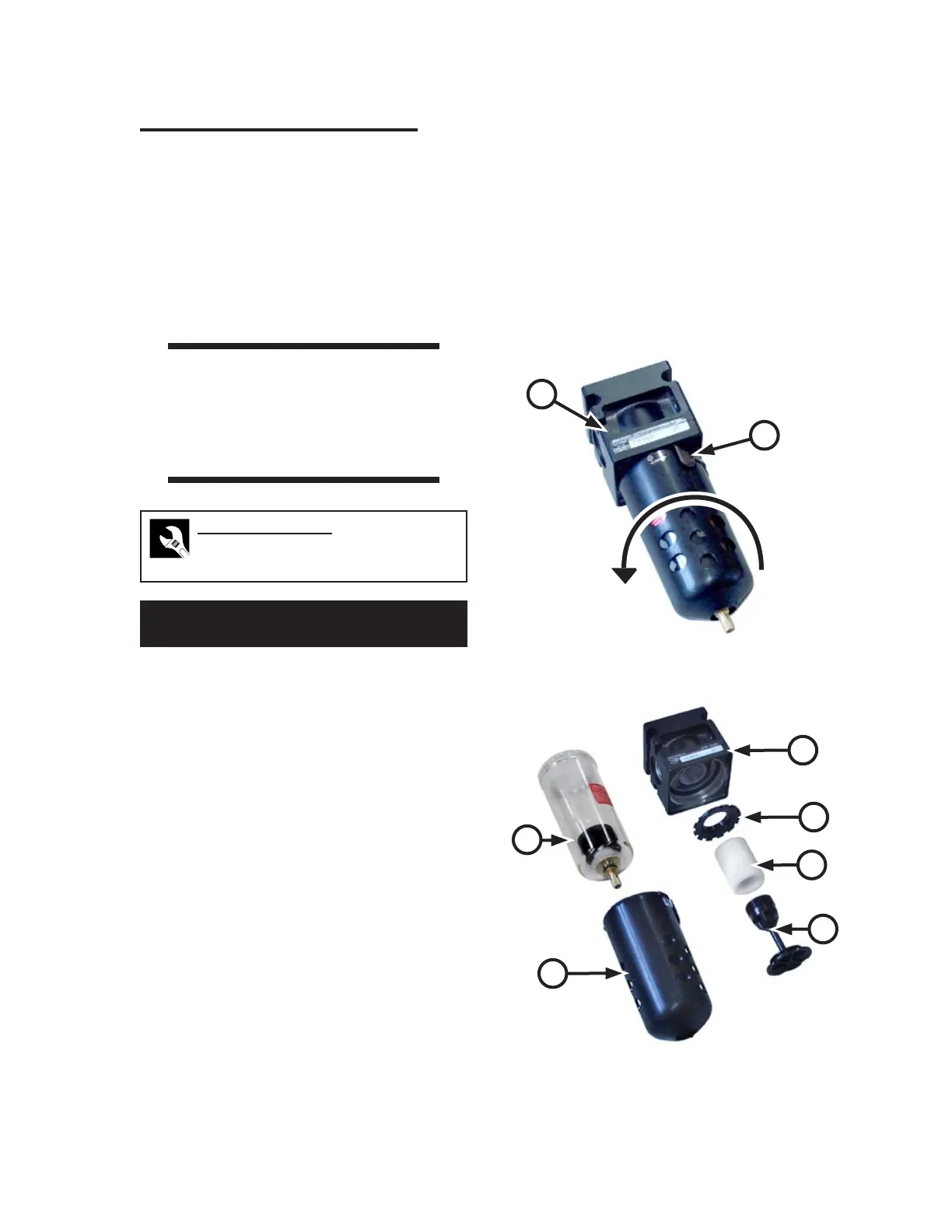

Figure 4-14: Press the metal tab and twist the casing
to the left to remove it from the base.
A
B
Figure 4-15: All components in the air filter
assembly can be washed with alcohol,
EXCEPT the bowl (B).
A
B
C
D
E
F
