Edge/Edge Blanket Preventive Maintenance
4-7
Looking in from the rear of the machine,
locate the low pressure gauge of the ma-
chine at the right center (Figure 4-8). The
air pressure gauge should be set at 60 pci
(415 kPa).
NOTE: These settings are pre-
set at the factory. Air pressures
can be changed to meet the needs
of different weights of flatwork.
Press a red safety STOP button.
Figure 4-9 shows the remaining air pressure
valve for the Left Spread Clamp, located inside
the body of the machine at the left rear. The air
pressure factory default settings is 30 psi (205
kPa).
Remember, this remaining pressure regulator
only needs to be checked and/or adjusted in the
case of a specific machine performance problem.
Refer to the REPAIR chapter, Compressed
Air System section, Left Spread Clamp Air
Pressure Adjustment procedure.
8.
9.

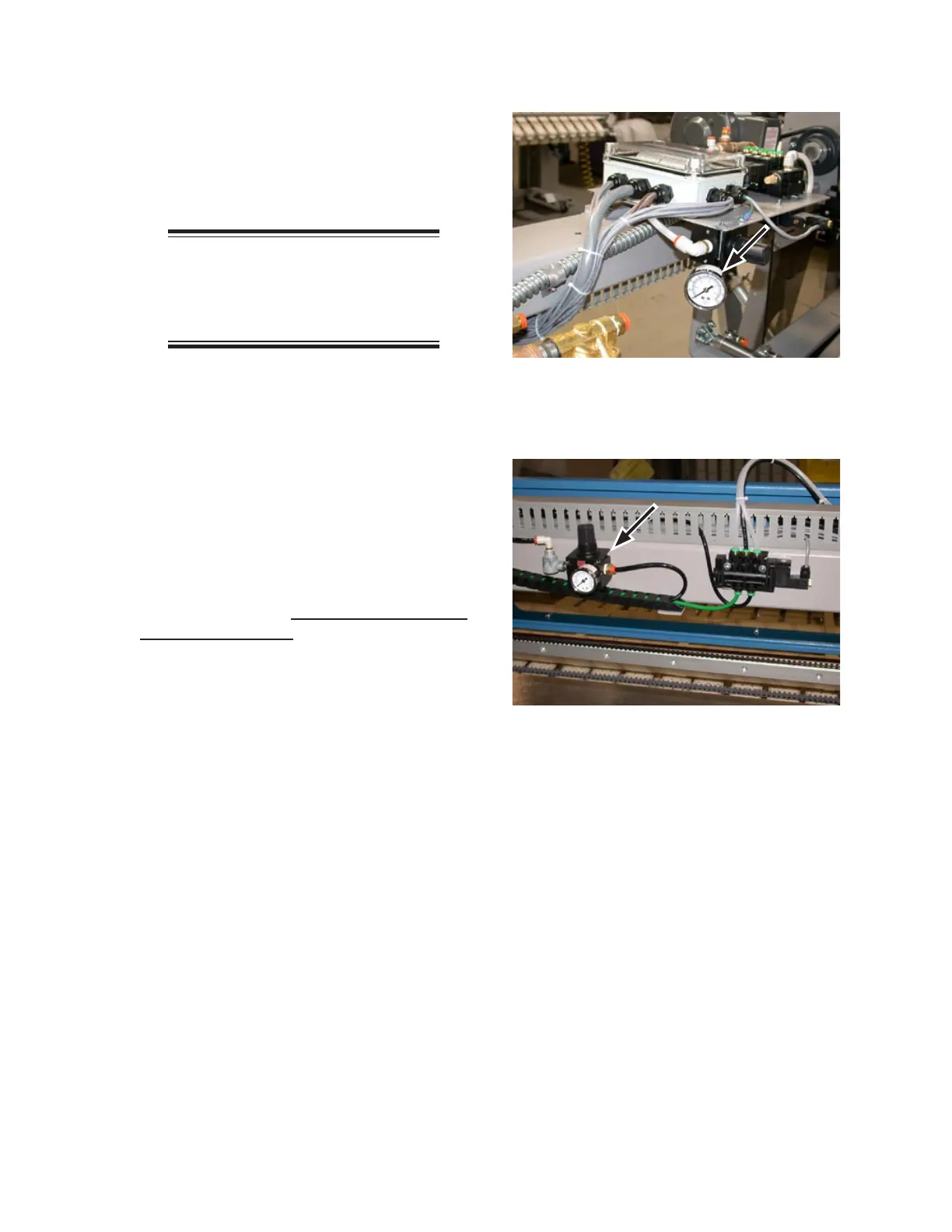

Figure 4-9: Left spreader clamp pressure regulator
in back/left of machine.
Figure 4-8: Low air pressure regulator in center/
right of machine.
