Chison ECO 3 EXPERT - B Image Menu Adjustments

ECO 3 EXPERT Ultrasound Diagnostic System
Page 38 / 191

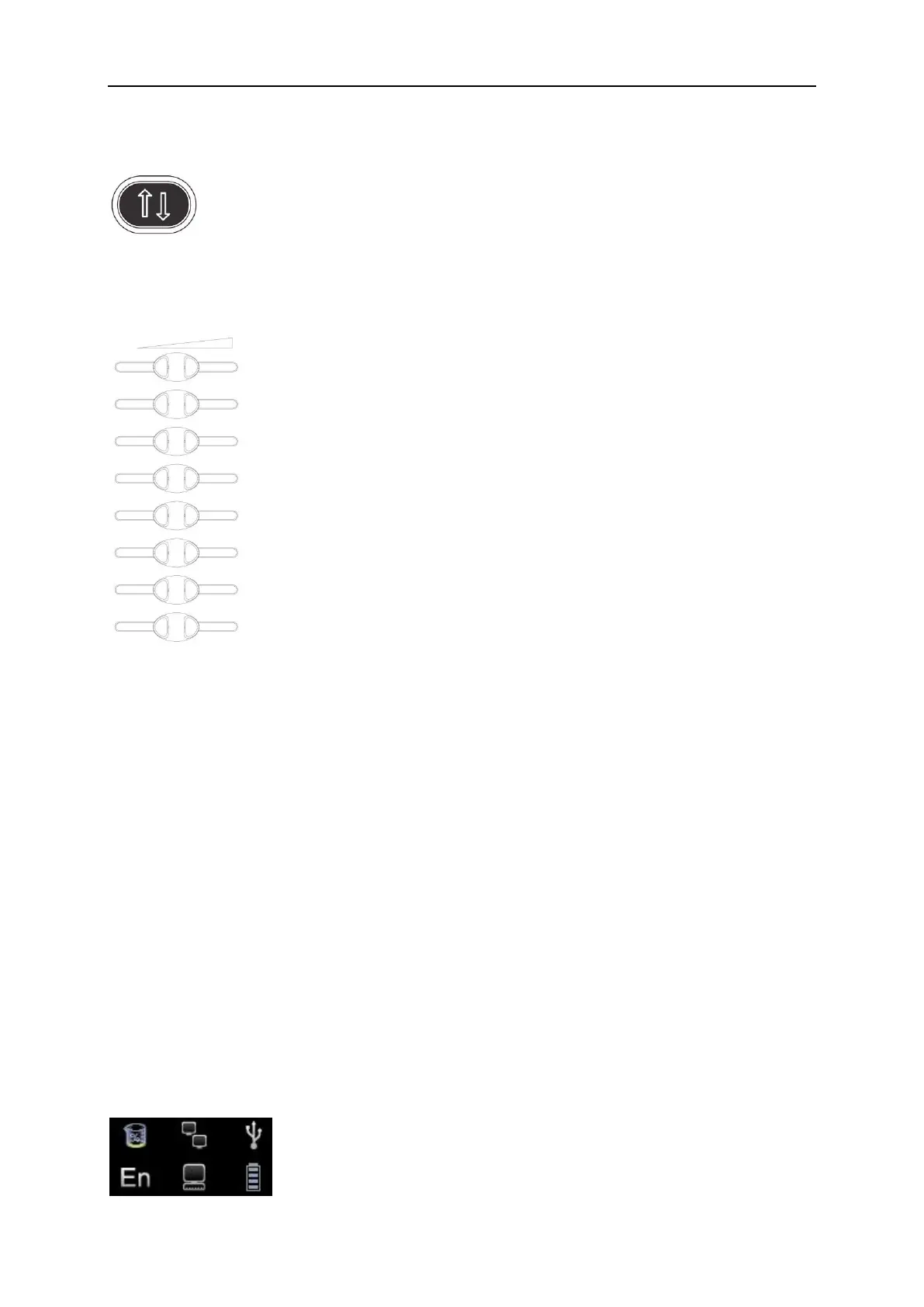

4.5.6 Up and Down Invert
Press this key to invert the image from up and down.
4.5.7 STC
STC can be used for adjusting gain compensation in different image depth.
4.5.8 GAIN
Rotate the knob to adjust the gain of B mode and M mode.
4.5.9 ANGLE/ZOOM Knob
Rotate the knob to adjust the angle or zoom. Press this knob to change the function between
angle and zoom.
4.5.10 DEPTH/FOCUS Knob
Press the knob to adjust the depth and function position. Press the knob to change the function
between depth and focus position.
4.5.11 Information Area Indicating Machine Status
