5.3 Pulse Mode
On CHOICE PAGE (see 3.4), press 6 then ENTER, choose the PULSE functional list.
Press
SHIFT , then to change to next page.
COUNT = 0 [ PULSE ]
Vac = 0.0 F = 60.00 Vdc = 0.0
DUTY = 0.0 % PERIOD = 0.0 ms
<SHIFT> <ENTER> to Execute
T
PAGE CHOICE = 6_
1. SETUP 2.CONF 3.OUTPUT 4. MANUAL CALI
5.
LIST 6. PULSE 7.
STEP
8. HAR 9.
SYN
10. INTERHAR
75ms
80ms
100ms
90∘
SEQ 0
SEQ 1
SEQ 2
50V

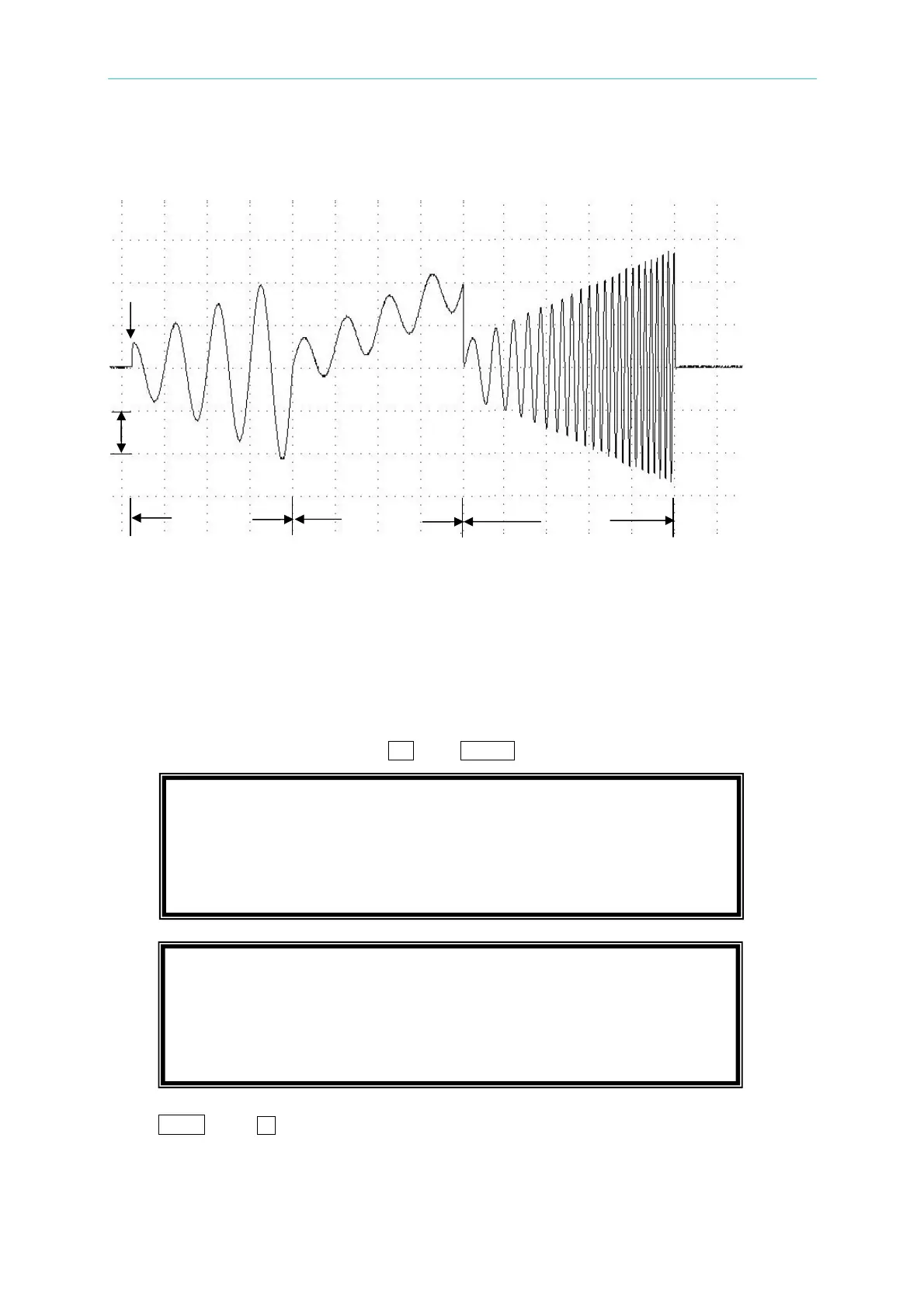

The output waveform:
To Next Page
