Chroma 61503 - Harmonic Measurement and Waveform Synthesis

Application
5-9

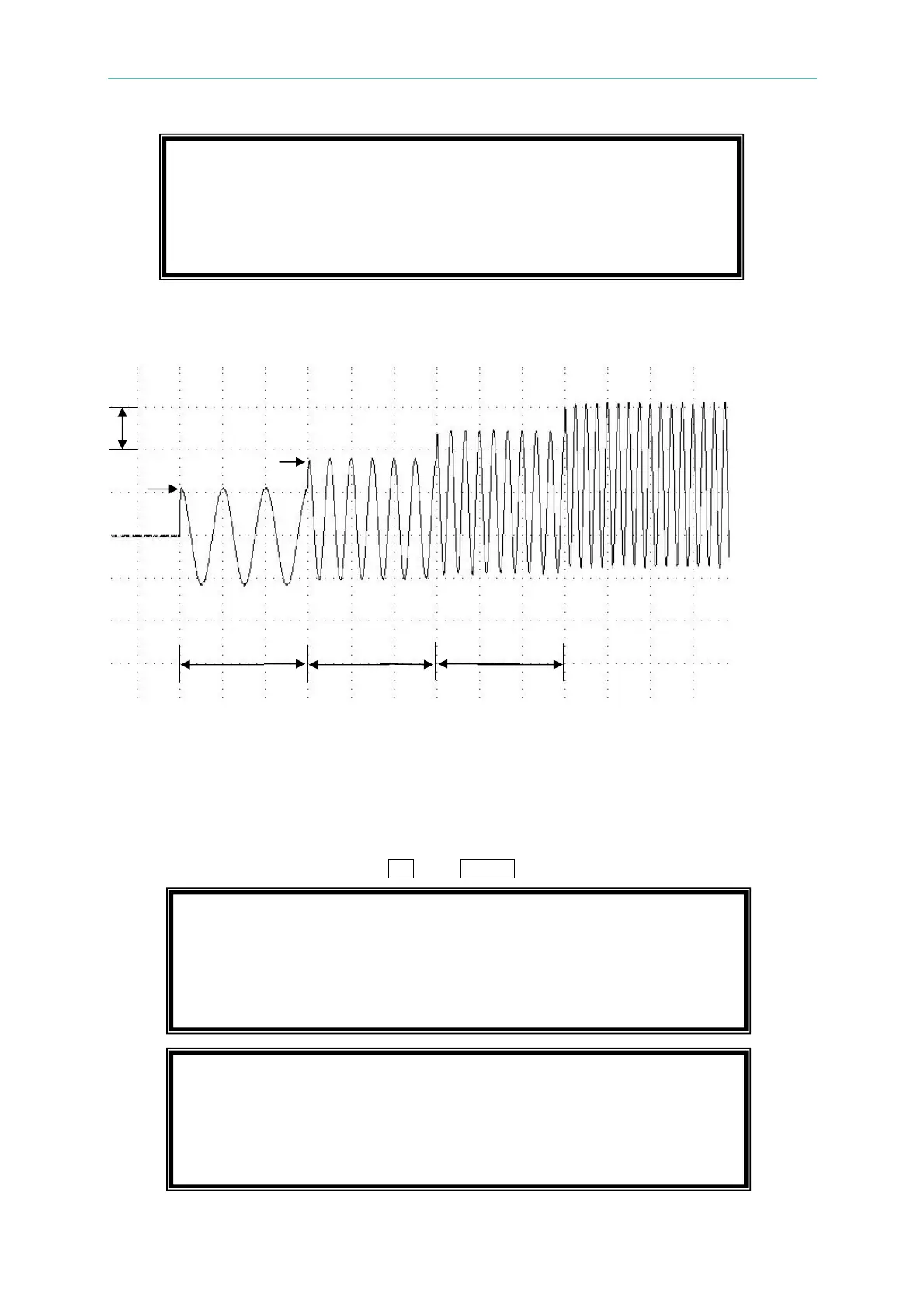

5.5 Harmonic Measurement
On CHOICE PAGE (see 3.4), press 8 then ENTER, choose the HAR functional list.
PAGE CHOICE = 9_
1. SETUP 2.CONF 3.OUTPUT 4. MANUAL CALI
5.
LIST 6. PULSE 7. STEP 8. HAR 9. SYN
10. INTERHAR
SOURCE = I FREQ = 60 Hz [ HAR ]
TIMES = SINGLE PARAMETER = PERCENT
<SHIFT> <ENTER> to measure
TRIG = AUTO WAVE = A [ STEP ]
DEGREE = 90.0
<SHIFT><ENTER> to Execute
S
60ms
60ms
60ms
Initial
Step 1 Step 2 Step 3
40Vac 50Hz
0Vdc
50Vac 100Hz
20Vdc
60Vac 150Hz
40Vdc
70Vac 200Hz
60Vdc
50V
90°
90°
