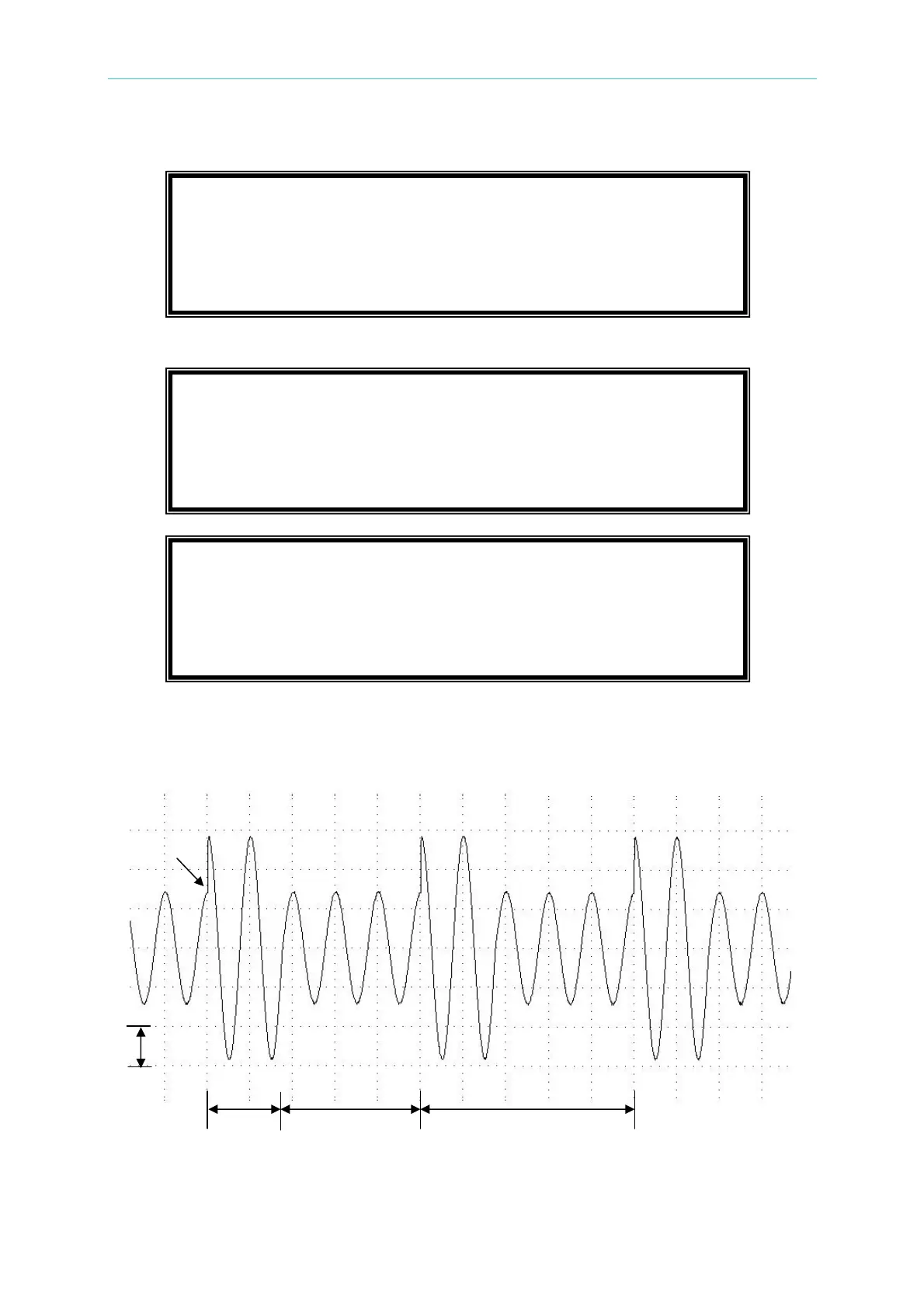

In MAIN PAGE:
In PULSE setting page:
The output waveform:
TRIG = AUTO WAVE = A [ PULSE ]
DEGREE = 90.0
<SHIFT> <ENTER> to Execute S
COUNT = 3 [ PULSE ]
Vac = 100.0 F = 50.00 Vdc = 0.0
DUTY = 35.0 % PERIOD = 100.0 ms
<SHIFT> <ENTER> to Execute
T
Vac = 50.0 F = 50.00 Vdc = 0.0 L
V
= 0.00 F = 0.00 I = 0.00 S
P
= 0.0 PF = 0.000 CF = 0.00 T
35ms
65ms
100ms
Pulse 1 Pulse 2
Pulse 3
100Vac
50Vac
90∘
50V
