Installation
2-5

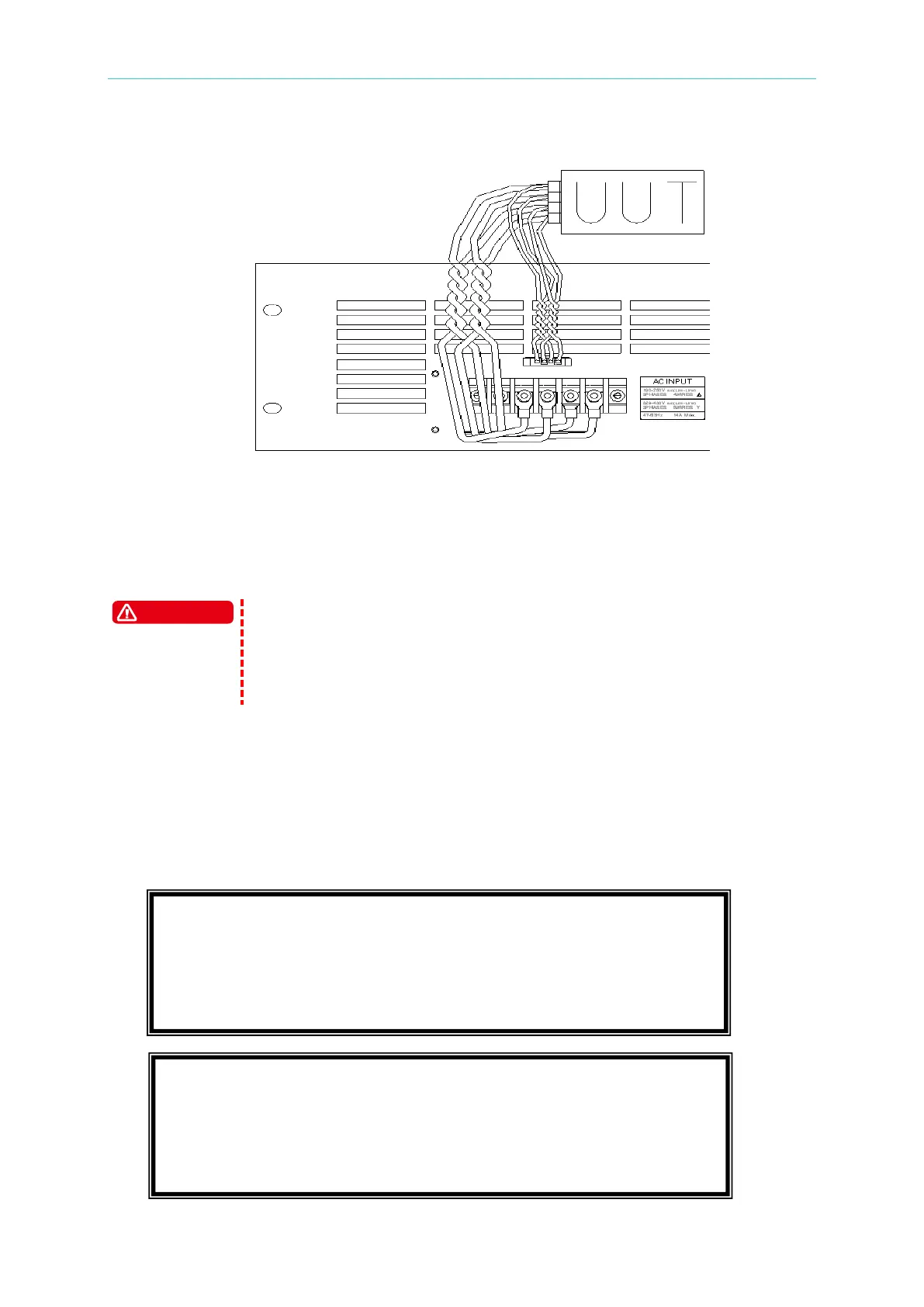

Figure 2-5 Output & Remote Sense Connection
2.6 Power-On Procedures
Before turning on the instrument, all protective earth terminals, extension
cords, and devices connected to the instrument must be connected to a
protective earth ground. Any interruption of the protective earth
grounding will cause a potential shock hazard that could result in
Apply the line power and turn on the power switch on the front panel. The AC Source will do
a series of self-tests. The LCD on the front panel will light up and display as below.
Meanwhile, the AC Source will do the memory, data and communication self-test. After the
routines of self-tests are done, the display shows the MODEL number, and the serial number
of the AC Source, and it shows an “OK” at the right side of each test item indicating that the
item is no problem. It takes about six seconds to complete the routines of the self-test.
Then the display shows the versions of software as below.
Programmable AC Source
WAVEFORM1 OK PANEL OK
WAVEFORM2 OK REMOTE OK
WAVEFORM3 OK
To Next Page
