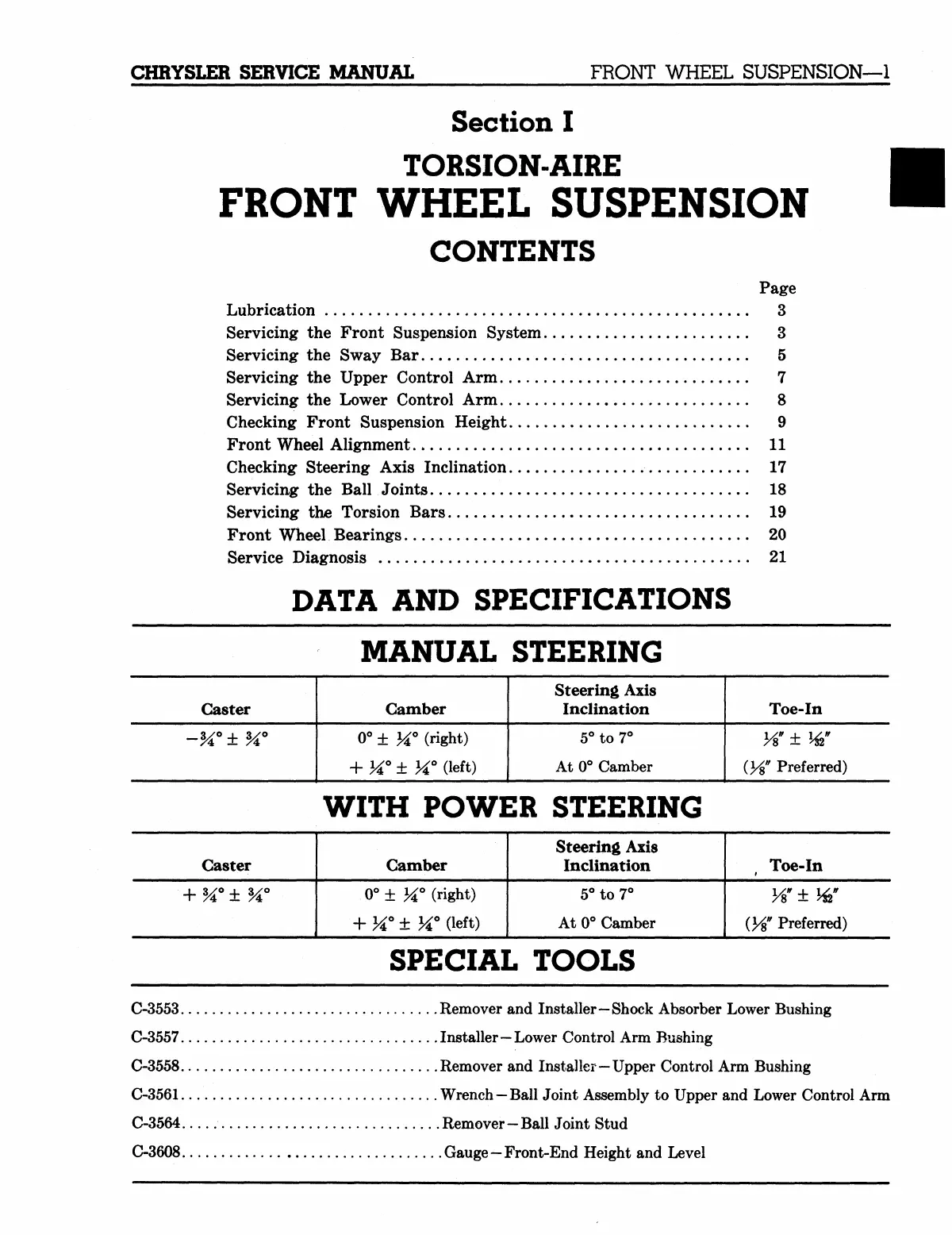

CHRYSLER SERVICE MANUAL
FRONT WHEEL SUSPENSION—1
Section I
TORSION-AIRE
FRONT WHEEL SUSPENSION
CONTENTS
Page
Lubrication 3
Servicing the Front Suspension System 3
Servicing the Sway Bar 5
Servicing the Upper Control Arm 7
Servicing the Lower Control Arm 8
Checking Front Suspension Height 9
Front Wheel Alignment 11
Checking Steering Axis Inclination 17
Servicing the Ball Joints 18
Servicing the Torsion Bars 19
Front Wheel Bearings 20
Service Diagnosis 21
DATA AND SPECIFICATIONS
MANUAL STEERING
Caster
-H" ± W
Camber
0° ± H° (right)
+ M° ±
l
A° (left)
Steering Axis
Inclination
5° to 7°
At 0° Camber
Toe-In
y* ± w
W Preferred)
WITH POWER STEERING
Caster Camber
0°± M° (right)
+ M°±M°(left)
Steering Axis
Inclination
5° to 7°
At 0° Camber
Toe-In
(%" Preferred)
SPECIAL TOOLS
C-3553 Remover and Installer—Shock Absorber Lower Bushing
C-3557 Installer—Lower Control Arm Bushing
C-3558 Remover and Installer —Upper Control Arm Bushing
C-3561 Wrench—Ball Joint Assembly to Upper and Lower Control Arm
C-3564 Remover-Ball Joint Stud
C-3608 Gauge-Front-End Height and Level
