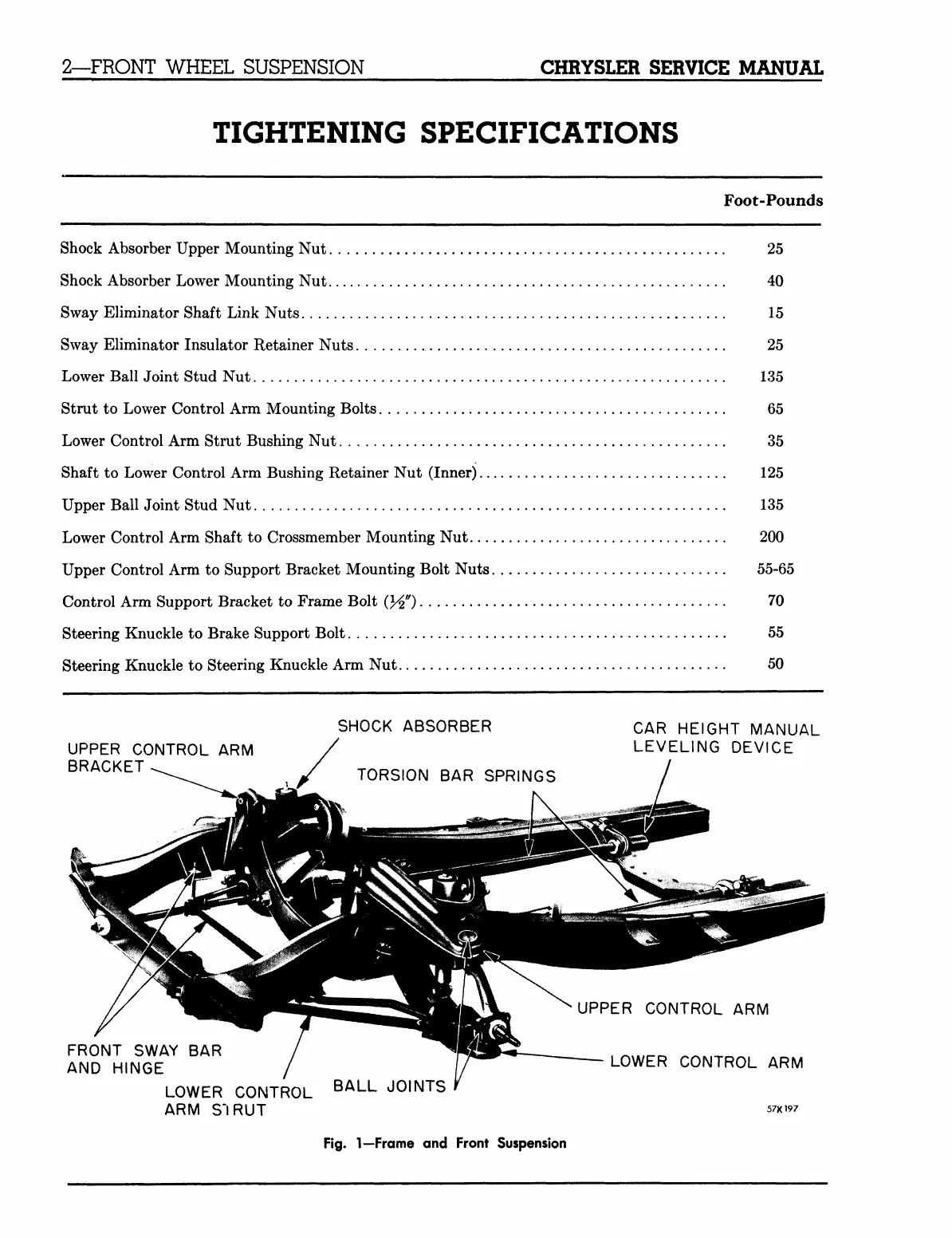

2—FRONT WHEEL SUSPENSION
CHRYSLER SERVICE MANUAL
TIGHTENING SPECIFICATIONS
Foot-Pounds
Shock Absorber Upper Mounting
Nut 25
Shock Absorber Lower Mounting
Nut 40
Sway Eliminator Shaft Link Nuts
15
Sway Eliminator Insulator Retainer Nuts
25
Lower Ball Joint Stud
Nut 135
Strut
to
Lower Control Arm Mounting Bolts
65
Lower Control Arm Strut Bushing
Nut 35
Shaft
to
Lower Control Arm Bushing Retainer
Nut
(Inner)
125
Upper Ball Joint Stud
Nut 135
Lower Control Arm Shaft
to
Crossmember Mounting
Nut 200
Upper Control Arm
to
Support Bracket Mounting Bolt Nuts 55-65
Control Arm Support Bracket
to
Frame Bolt (}/£")
70
Steering Knuckle
to
Brake Support Bolt
55
Steering Knuckle
to
Steering Knuckle Arm
Nut 50
UPPER CONTROL ARM
BRACKET
SHOCK ABSORBER
TORSION BAR SPRINGS
CAR HEIGHT MANUAL
LEVELING DEVICE
FRONT SWAY BAR
AND HINGE
LOWER CONTROL
BALL
J0INT
S
ARM
SI
RUT
UPPER CONTROL ARM
LOWER CONTROL ARM
57X197
Fig.
1—Frame
and
Front Suspension
