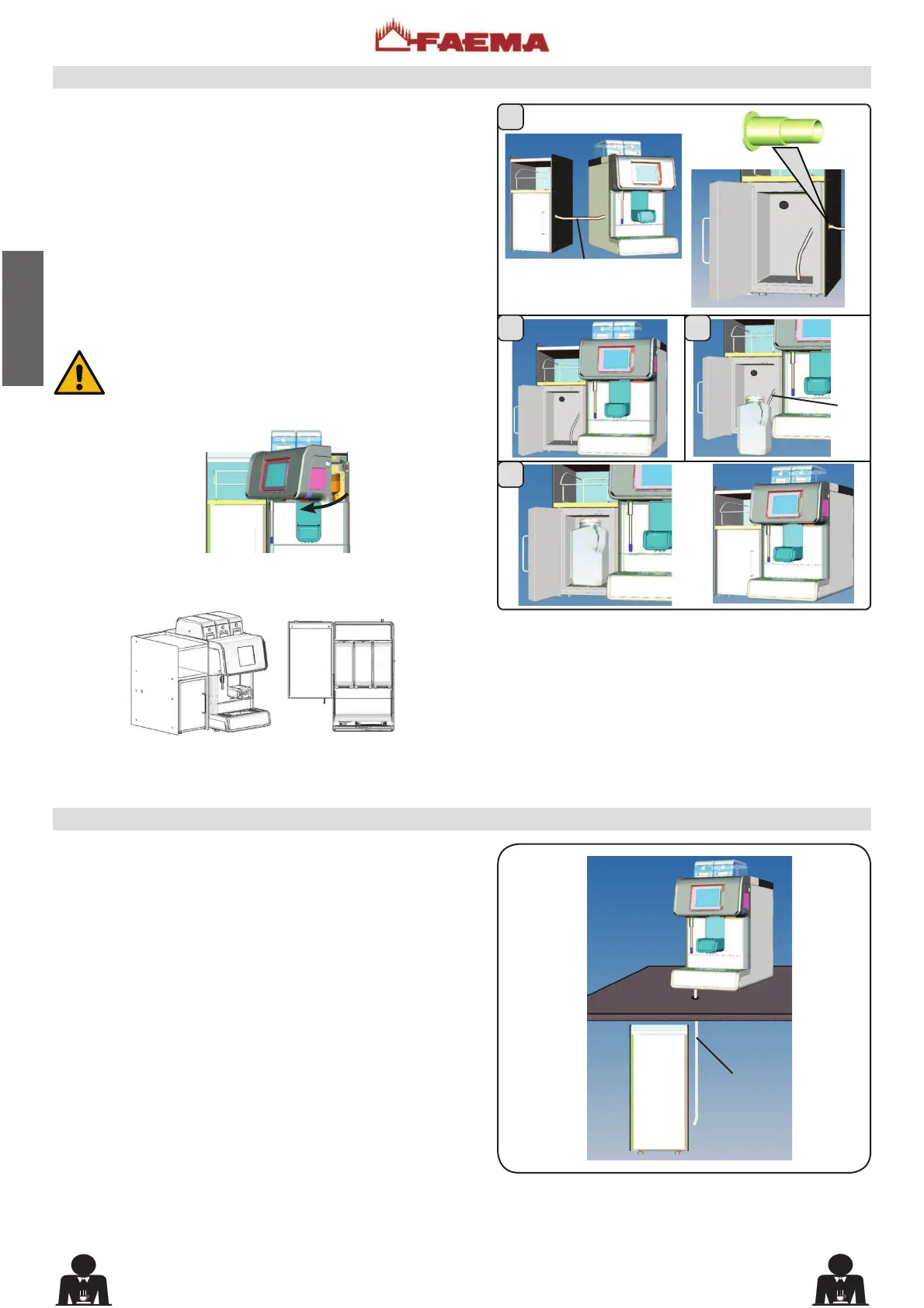

Please follow these steps to connect the MODULO MILK
+ CUP to the machine:
1) insert the milk intake tube (40), from the machine, in
the manifold (CSRVLWLRQHGLQWKHVSHFL¿FKROHRIWKH
MODULO MILK + CUP;
2) Place the module next to the machine as shown in the
¿JXUH0DNHVXUHWKHPDQLIROGC) is inserted in the side
hole of the machine;
3) Insert the intake tube (40) into the milk container;
4) Insert the milk container in the MODULO MILK + CUP
and close the door.
When placing the MODULO MILK + CUP next
to the machine, make sure the control panel can
be opened.
The correct position is show below:
Besides being able to connect the machine to the MODULO
MILK + CUP, it can also be used with a generic milk cooler.
The position of the generic milk cooler is different from the
position of the MODULO MILK + CUP. For example, the
illustration here shows how to connect the machine to the
milk cooler positioned underneath the machine counter.
Note: In this case, the milk intake tube (40) comes from the
machine base and not from the side as with the MODULO
MILK + CUP.
The installer connects the milk tube.
Connecting the Machine – Modulo Milk + Cup
Connecting the machine to a generic fridge module
