Chapter 4
Changing Symbology Settings

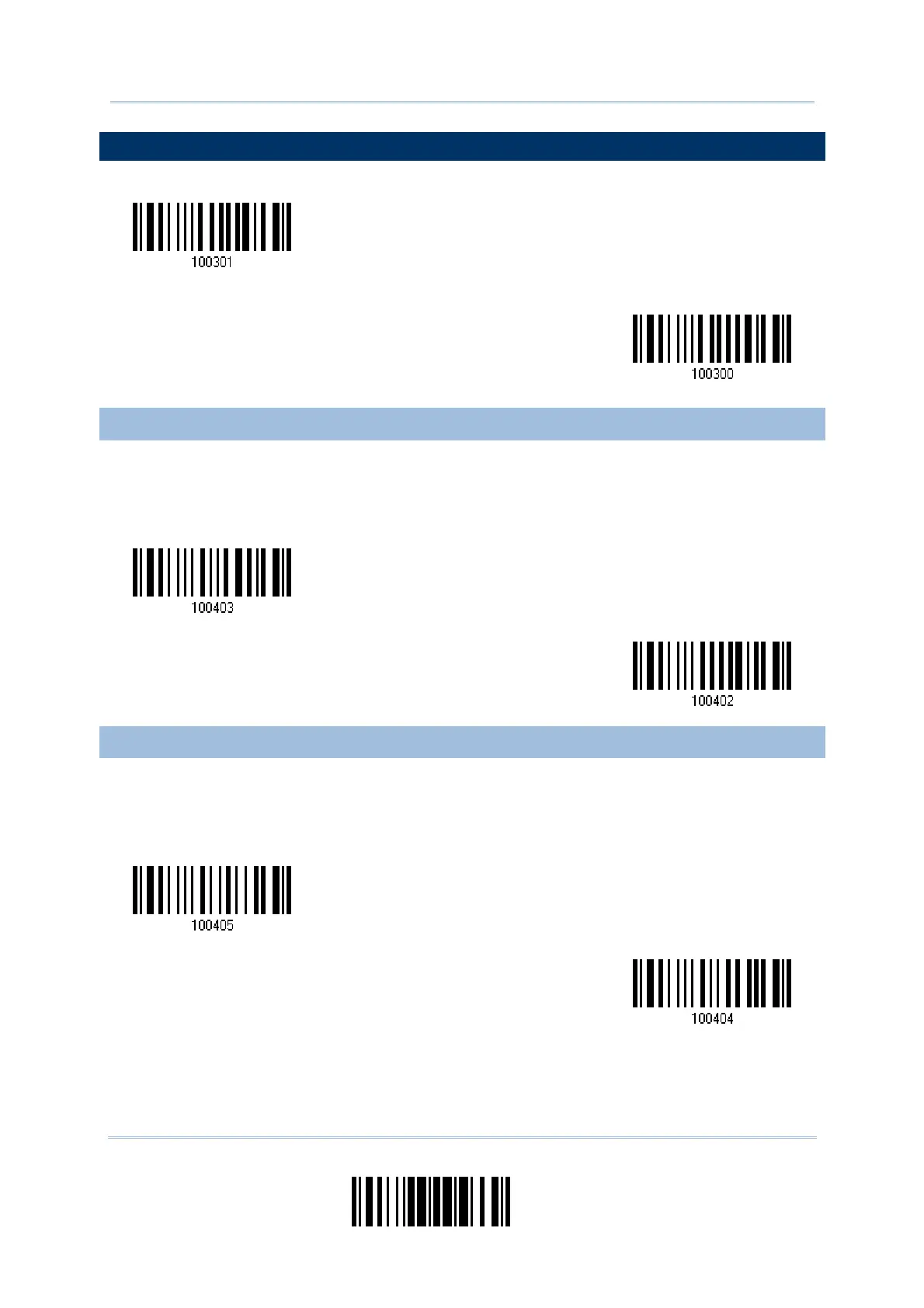

4.5 CODE 39
4.5.1 START/STOP TRANSMISSION
Decide whether to include the start/stop ch
aracters in the
data being transmitted.
4.5.2 VERIFY CHECK DIGIT
Decide whether t
o verify check digit.
If incorrect, the barcode will no
t be accepted.
*Enable Code 39
D
isable Code 39
Transmit Code 39
Start/Stop Characters
*
Do Not Transmit
Verify Code 39
Check Digit
*
Do Not Verify
126
