140
Enter Setup
1560 Series Barcode Sca
nner
User Guide

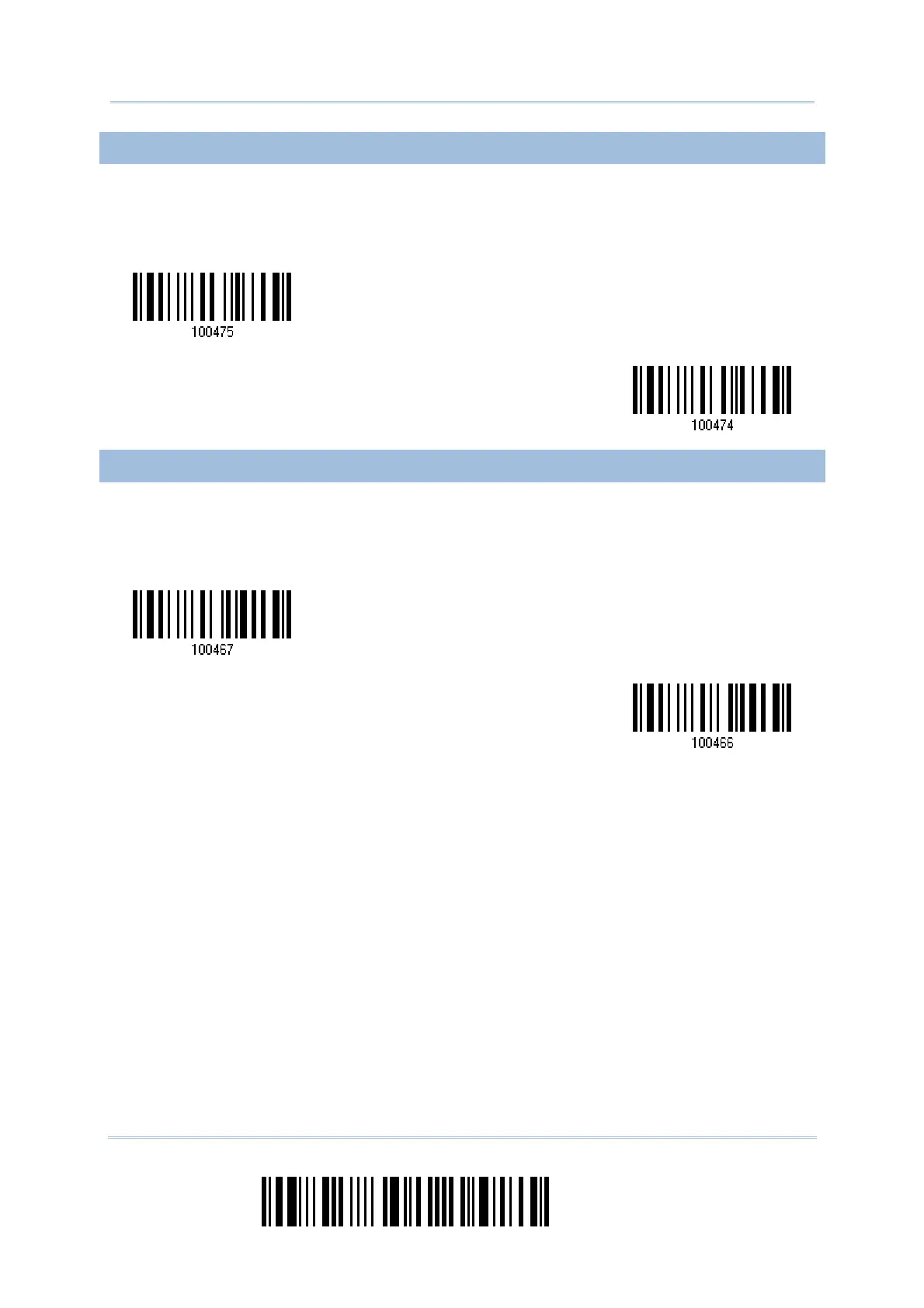

4.19.3 SYSTEM NUMBER TRANSMISSION
Decide whether to include the system
number in the data
being transmitted.
4.19.4 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
D
o Not Transmit
*Transmit UPC-E
Check Digit
*
Do Not Transmit
Transmit UPC-E
System Number
151
153
Table of Contents
Default Chapter
3
For Canada
3
For Hand-Held Product with RF Functions
3
Important Notices
3
Care & Maintenance
4
For Product with Laser
4
Safety Precautions
4
Release Notes
5
Table of Contents
7
Introduction
13
Getting Familiarized with 1560/1562 and 3656
14
Installing the Battery to 1560/1562
14
Setting up 3656
15
Charging the Battery Via 3656
17
Inside the Package
18
Product Highlights
18
Symbologies Supported
19
Quick Start
21
Enter Configuration Mode
23
Exit Configuration Mode
23
Default Settings
24
Save User Settings as Defaults
24
Restore User Defaults
24
Restore System Defaults
24
Read a Setup Label
25
Configure Parameters
25
List the Current Settings
29
Chapter 1
31
Battery
31
How to Operate the Scanner
31
Auto Power off & Power-Saving
32
Understanding the Barcode Scanner
31
Memory
34
Transmit Buffer
34
Memory Mode
35
Send Data
36
LED Indicator
37
Good Read LED
38
Good Read LED Duration
38
Beeper
39
Beeper Volume
40
Good Read Beep
41
Low Battery Alarm
42
Send "NR" to Host
43
Scan Modes
44
Continuous Mode
45
Test Mode
46
Laser Mode
46
Auto off Mode
46
Auto Power off Mode
47
Aiming Mode
47
Multi-Barcode Mode
48
Alternate Mode
48
Scanning Timeout
49
Delay between Re-Read
50
Read Redundancy for All Symblogies
51
Addon Security for UPC/EAN Barcodes
52
Auto-Sense Mode (1560 Only)
53
CCD Sensor Always Active (1560 Only)
55
Negative Barcodes
55
Effective Decoding Area
56
Positioning Window
56
Adjusting Window
56
Selecting Output Interface
59
Chapter 2
60
Bt Hid
60
Activate BT HID & Select Keyboard Type
60
Reset Connection
61
Keyboard Settings
62
Inter-Function Delay
68
HID Character Transmit Mode
68
BT SPP Slave
69
Activate BT SPP Slave Mode
69
Inter-Function Delay
69
ACK/NAK Timeout
70
BT SPP Master
71
Activate BT SPP Master Mode
71
Inter-Function Delay
73
ACK/NAK Timeout
74
Switch between Master/Slave Mode
74
Keyboard Wedge Via 3656
75
Activate Keyboard Wedge & Select Keyboard Type
75
Keyboard Settings
76
Inter-Character Delay
82
Inter-Function Delay
82
Via 3656
83
Activate RS-232 Interface
83
Baud Rate
83
Data Bits
84
Parity
84
Stop Bit
85
Flow Control
85
Inter-Character Delay
86
Inter-Function Delay
86
ACK/NAK Timeout
87
USB HID Via 3656
88
Activate USB HID & Select Keyboard Type
88
Keyboard Settings
90
Inter-Function Delay
96
HID Character Transmit Mode
96
USB Virtual COM Via 3656
97
Activate USB Virtual COM
97
Inter-Function Delay
97
ACK/NAK Timeout
98
Setting up a Wpan Connection
99
Connecting Via 3656
100
Connect to 3656
100
Change Interface
101
Configure Related Settings
102
Connecting Via Bluetooth ® Dongle
103
Change Interface
103
Configure Related Settings
104
Connect to Dongle
107
Changing Symbology Settings
115
Chapter 4
116
Codabar
116
Start/Stop Characters Selection
116
Start/Stop Transmission
117
CLSI Conversion
117
Code 25 - Industrial 25
118
Start/Stop Pattern Selection
118
Verify Check Digit
119
Transmit Check Digit
119
Code Length Qualification
120
Code 25 - Interleaved 25
121
Start/Stop Pattern Selection
121
Verify Check Digit
122
Transmit Check Digit
122
Code Length Qualification
123
Code 25 - Matrix 25
124
Start/Stop Pattern Selection
124
Verify Check Digit
125
Transmit Check Digit
125
Code Length Qualification
126
Code 39
127
Start/Stop Transmission
127
Verify Check Digit
127
Transmit Check Digit
128
Standard/Full ASCII Code 39
128
Code 39
128
Code 93
129
Code 128
129
Ean-8
130
118
130
Convert to EAN-13
131
Transmit Check Digit
131
120
132
Ean-13
132
ISBN Conversion
133
ISSN Conversion
133
Transmit Check Digit
133
Security Level
134
Gs1-128 (Ean-128)
135
Code ID Transmission
135
Field Separator (GS Character)
135
Isbt 128
136
Msi
137
Verify Check Digit
137
Transmit Check Digit
138
Code Length Qualification
139
French Pharmacode
140
Transmit Check Digit
140
Italian Pharmacode
141
Transmit Check Digit
141
Plessey
142
Convert to UK Plessey
142
Transmit Check Digit
142
GS1 Databar (RSS Family)
143
Code ID Selection
143
GS1 Databar Omnidirectional (RSS-14)
143
GS1 Databar Expanded (RSS Expanded)
144
GS1 Databar Limited (RSS Limited)
145
Check Digit
146
Telepen
147
Telepen Output - Full Ascii/Numeric
147
Upc-A
148
Convert to EAN-13
149
System Number Transmission
149
Transmit Check Digit
149
Upc-E
150
System Number Selection
151
Convert to UPC-A
151
System Number Transmission
152
Transmit Check Digit
152
Chapter 5
153
Letter Case
153
Character Substitution
154
Select a Set for Character Substituion
154
Symbologies for Character Substitution (All 3 Sets)
155
Prefix/Suffix Code
160
Code ID
161
Select Pre-Defined Code ID
161
Change Code ID
162
Clear Code ID Settings
164
Length Code
165
Multi-Barcode Editor
168
Edit a Concatenation of Barcodes
169
Activate the Concatenation of Barcodes
170
Removal of Special Character
171
Defining Output Format
153
Applying Formats for Data Editing
173
Chapter 6
174
Activating Editing Formats
174
Activate Editing Formats
174
Exclusive Data Editing
175
How to Configure Editing Formats
176
Select Format to Configure
177
Restore Default Format
178
Configuring Format - Define Data Criteria
179
Applicable Code Type
179
Data Length
183
Matching String & Location
184
Configuring Format - Define Data Field
185
Start Position
185
Field Adjustment
185
Total Number of Fields
186
Field Settings
187
Configuring Format - Define Transmission Sequence
193
Programming Examples
195
Example I
195
Example II
196
Specifications
197
Firmware Upgrade
199
How to Upgrade 1560/1562 Firmware
199
Using 3656
199
Using a Generic Dongle
201
How to Upgrade 3656 Firmware
203
Upgrading 3656 CPU Firmware
203
Upgrading 3656 USB Bridge Firmware
205
Host Serial Commands
207
1560/1562 Serial Commands
207
Example
208
3656 Serial Commands
209
Example
212
Keyboard Wedge Table
213
Key Type & Status
213
Key Type
213
Key Status
214
Example
215
Numeral Systems
217
Decimal System
217
Hexadecimal System
218
ASCII Table
219
Entering PIN Code for Authentication
220
Use Preset PIN
220
Disable Authentication or Use Random PIN
221
5
