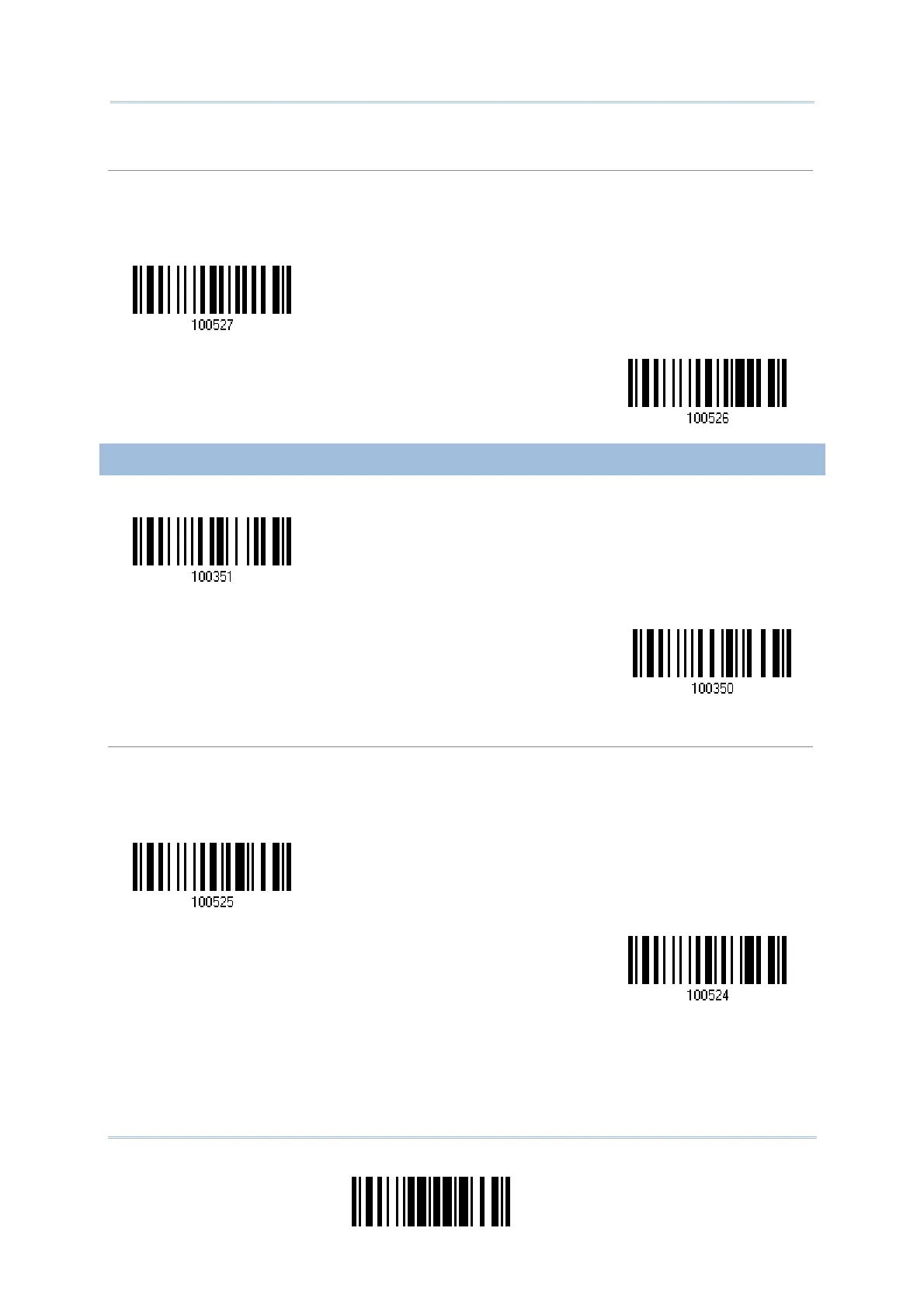

133
Update
Chapter 4
Changing Symbology Settings
Code ID Transmission
Decide whether to include the Code ID
in the data being transmitted.
4.16.4 GS1 DATABAR LIMITED (RSS LIMITED)
Code ID Transmission
Decide whether to include the Code ID
in the data being transmitted.
Enable RSS Limited
*
Disable RSS Limited
*Transmit RSS
Expanded Code ID
D
o Not Transmit
*Transmit RSS
Limited Code ID
D
o Not Transmit
144
