A-5
Cisco 2600 Series Routers Hardware Installation Guide
OL-2171-02
Appendix A Troubleshooting the Router
Reading the LEDs

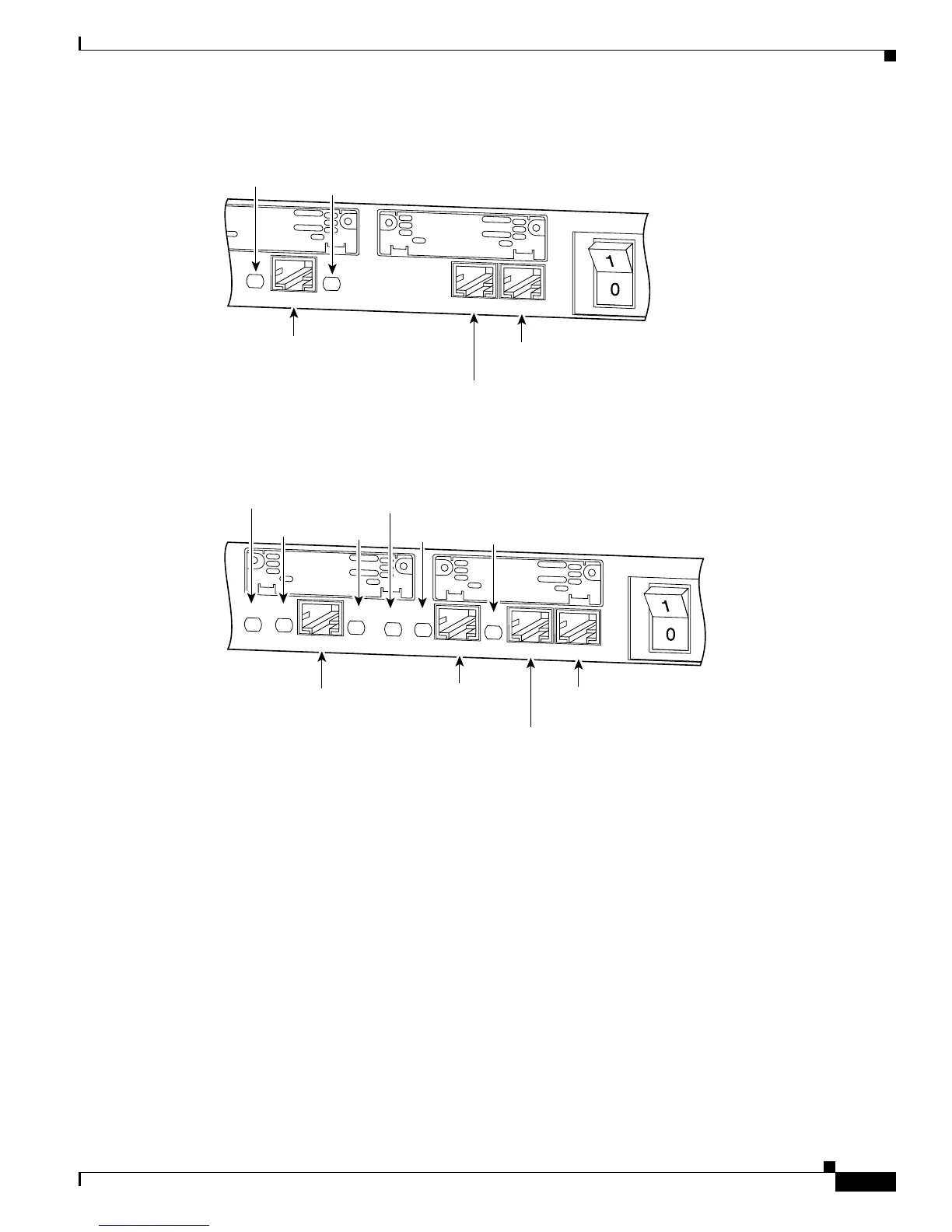

Figure A-4 Cisco 2613 —Rear-Panel LEDs
Figure A-5 Cisco 2621—Rear-Panel LEDs
11546
SEE MANUAL BEFORE INSTALLATION
SERIAL 1
SERIAL 0
CONN
CONN
WIC
2A/S
SEE MANUAL BEFORE INSTALLATION
SERIAL 1
SERIAL 0
CONN
WIC
2A/S
Cisco 2613
W0
AUX
CONSOLE
ACT
TOKEN RING 0/0
LINK
Token Ring 0/0
(RJ-45)
Link
LED
ACT
LED
Auxiliary
port (RJ-45)
Console
port (RJ-45)
14326
SEE MANUAL BEFORE INSTALLATION
SERIAL 1
SERIAL 0
CONN
CONN
WIC
2A/S
SEE MANUAL BEFORE INSTALLATION
SERIAL 1
SERIAL 0
CONN
CONN
WIC
2A/S
Cisco 2621
W0
W1
AUX
CONSOLE
10/100 ETHERNET 0/0
10/100 ETHERNET 0/1
10/100BASE-T
Ethernet 0/0
(RJ-45)
10/100BASE-T
Ethernet 0/1
(RJ-45)
Auxiliary
port (RJ-45)
Console
port (RJ-45)
FDX
LED
FDX
LED
Link
FDX
FDX
Link
LED
100 M
bps
100 Mbps
LED
Link
Link
LED
100 M
bps
100 Mbps
LED
