Chapter 7 Building the Second Row Table Assembly
Parts List

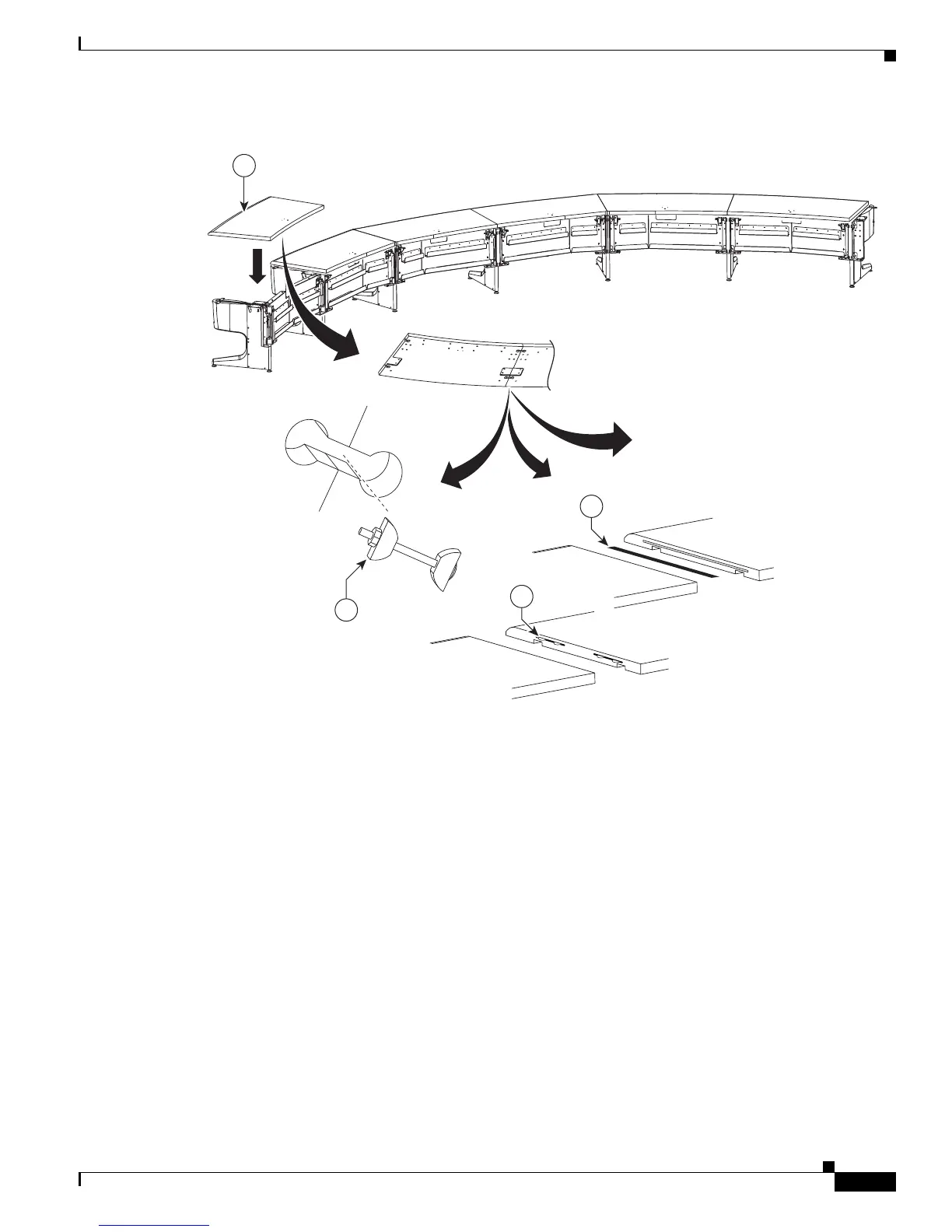

Figure 7-21 Tabletop, Section 5 Right (Section 2)
Step 22 Attach the left tabletop end to tabletop section 5 using the using the draw bolts, spline or biscuits, and
alignment plate.
204115
39
40
18
57
5(2)
