Chapter 2 Building the Display Assembly
Parts List
Step 5 Attach the Display Tilt brackets to each Display structure.

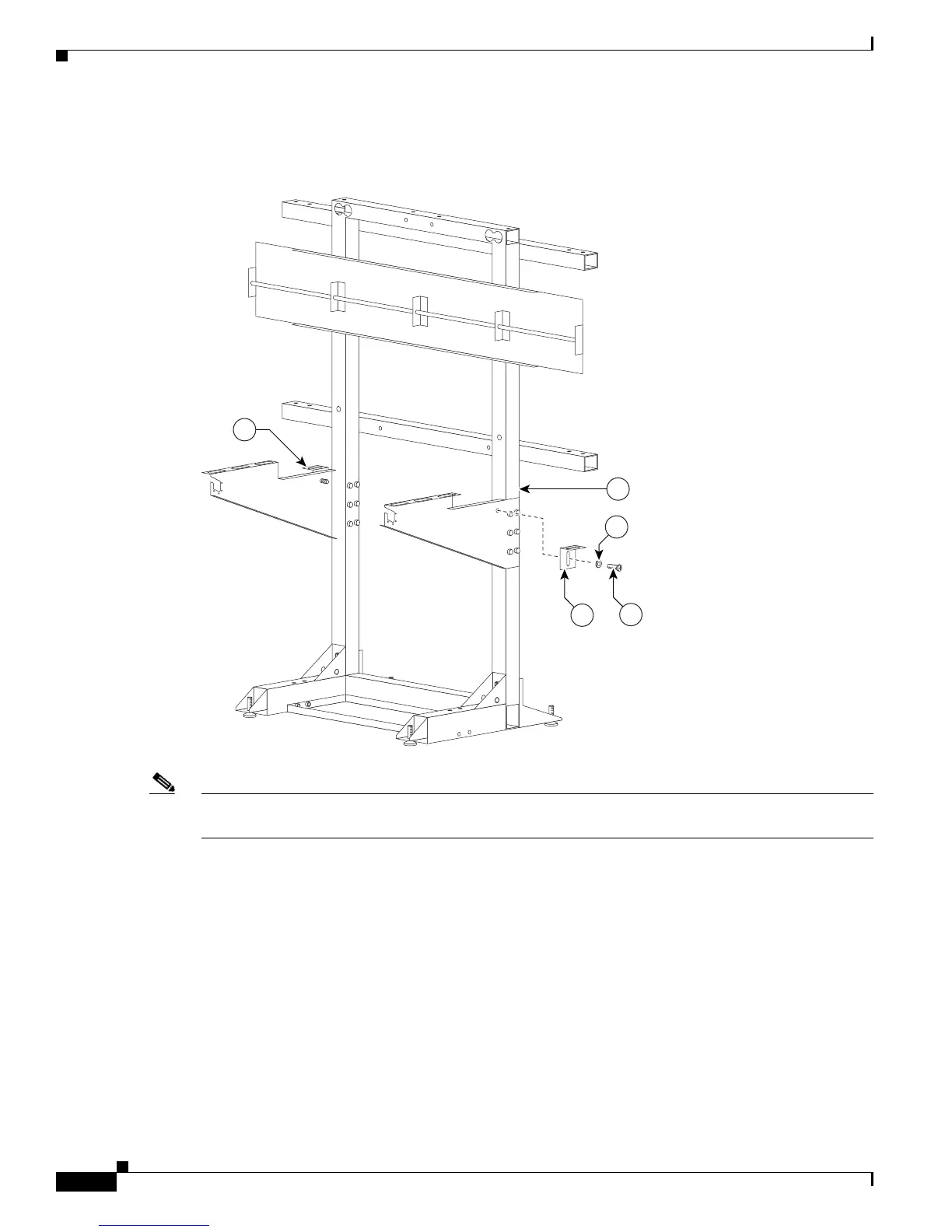

Figure 2-4 Display Tilt brackets
Note Do not tighten the Display Tilt brackets. You will need to adjust them to level the Plasma displays in
Chapter 3, “Mounting and Leveling the Plasma Displays.”
