Chapter 3 Mounting and Leveling the Plasma Displays
Purpose of Leveling the Plasma displays
Leveling Alignment Points
Step 3 Use the leveling alignment points to level and align the Plasma displays.

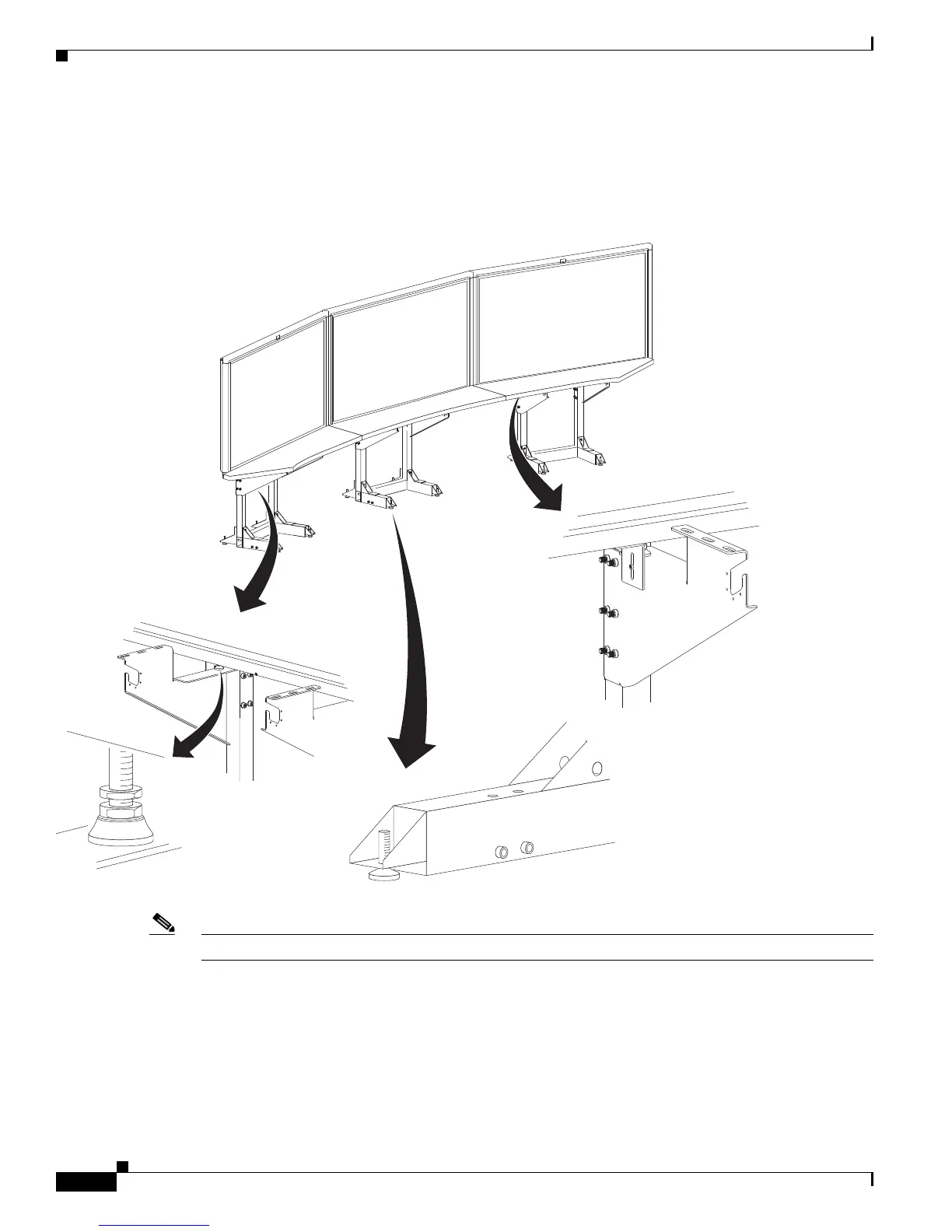

Figure 3-3 Leveling Alignment Points
Note You can use a 5 mm hex key to adjust the display structure’s front and rear Foot Levelers.
Leveling Goals
Leveling the Display shelves and the Plasma displays, and aligning the seams of the Display shelves with
the edges of the Plasma displays ensure that images displayed from the remote conference room match
the local conference room configuration.
