Chapter 3 Mounting and Leveling the Plasma Displays
Purpose of Leveling the Plasma displays
Warning The displays are heavy and may cause injury or damage if care is not taken to support them properly
while mounting. Use caution and additional assistance as needed.
Step 2 Loosely attach the Display shelves to the Display shelf supports.

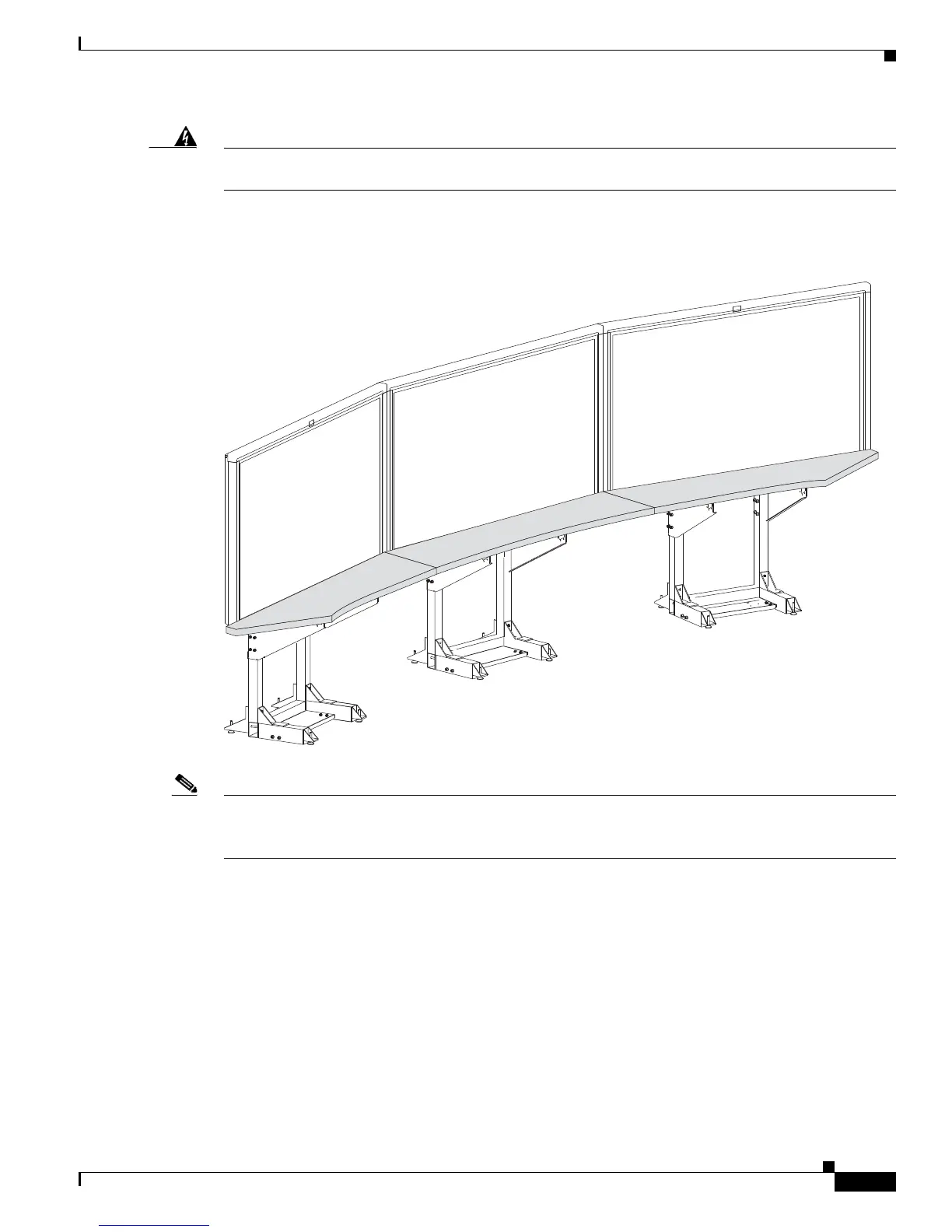

Figure 3-2 Loosely Attach the Display shelves to the Display Shelf Supports
Note The Display shelves are used in this chapter for leveling purposes only. See Chapter 4, “Building the
Display Shelf Assembly” and use the M8 x 20 mm screws in the Accessory Kit to attach the display
shelves.
Purpose of Leveling the Plasma displays
The three Plasma displays act as windows allowing a three-way view into the remote Cisco TelePresence
conference room. The Display shelf in front of each Plasma display acts as a visual bridge between the
local and remote conference rooms. In order to provide the experience of one seamless conference area,
the Display shelf must appear seamlessly integrated with the remote conference tables.
