Cisco TelePresence System 3200
OL-14521-01
Chapter 2 Building the Display Assembly
Parts List
Step 6 Attach the Camera Assembly bracket to the center Display structure, making sure that this structure uses
the larger codec tray.

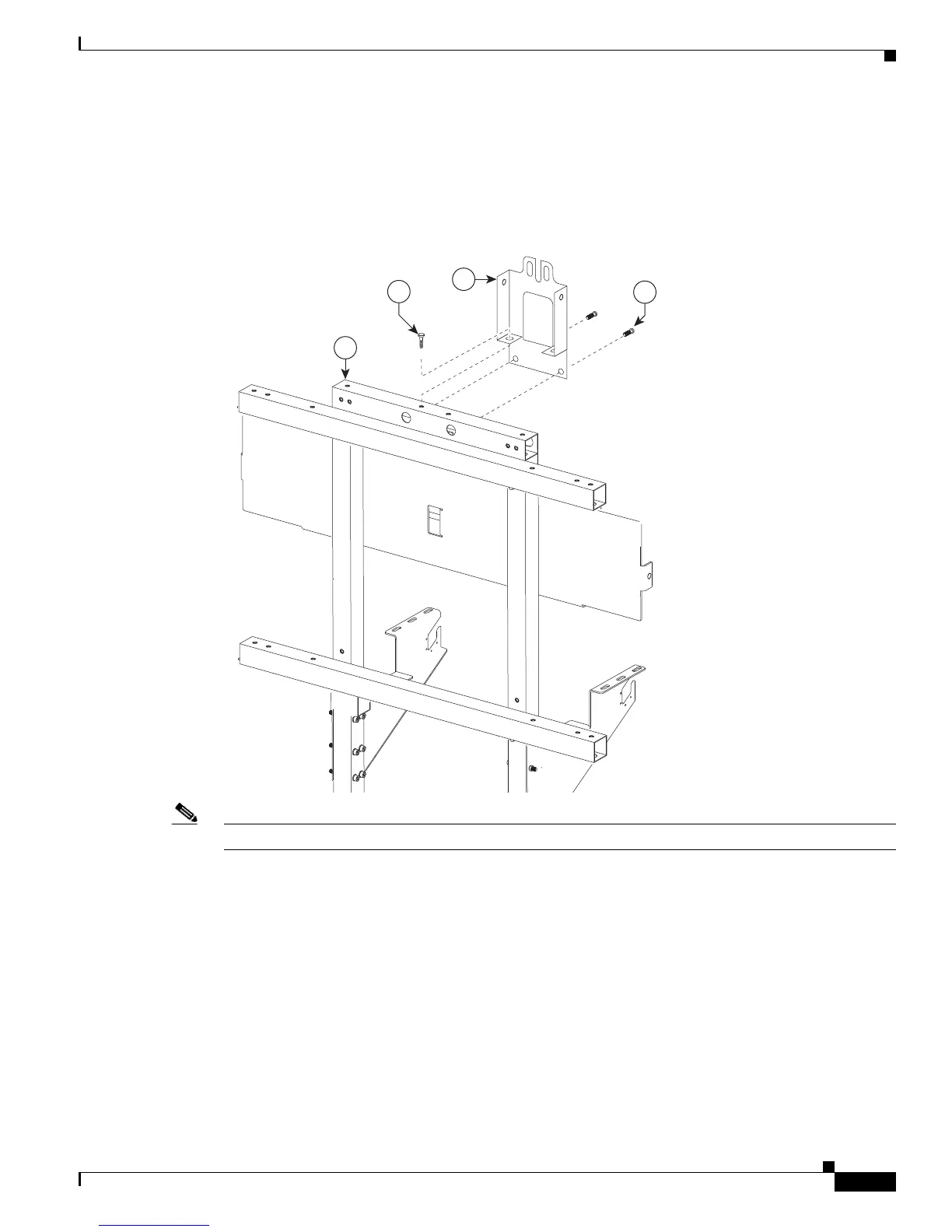

Figure 2-5 Camera Assembly bracket
Note The Camera Assembly bracket attaches to the center Display structure.
