Chapter 9 Routing Power and Signal Cables
Power Requirements for the Cisco TelePresence 3200
Step 14 Attach the ferrite cores to the ends of all six camera cables (both the video and Ethernet cables, 12 ferrite
cores total).
Wrap the cables around the ferrite as shown in Figure 9-14. Attach the ferrites so that they are
approximately 1 1/2 inches (4 cm) from the connectors.

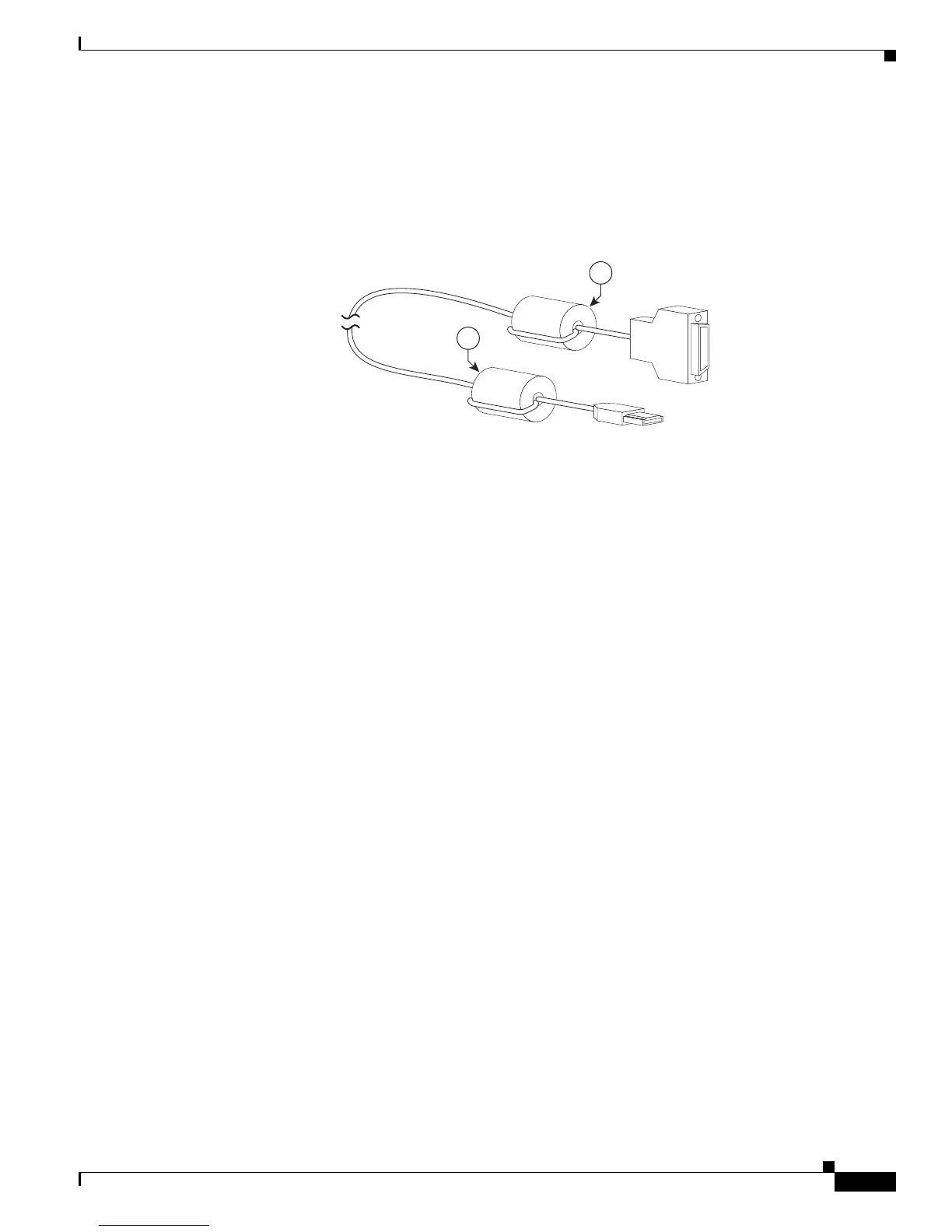

Figure 9-14 Connecting the Ferrite Cores
