3-9
Cisco TelePresence System 3200
OL-14521-01
Chapter 3 Mounting and Leveling the Plasma Displays
Purpose of Leveling the Plasma displays
Caution While moving the Plasma display to the left or right you need to make sure the Plasma display
Leveling feet remain firmly seated on top of the Display shelf supports.

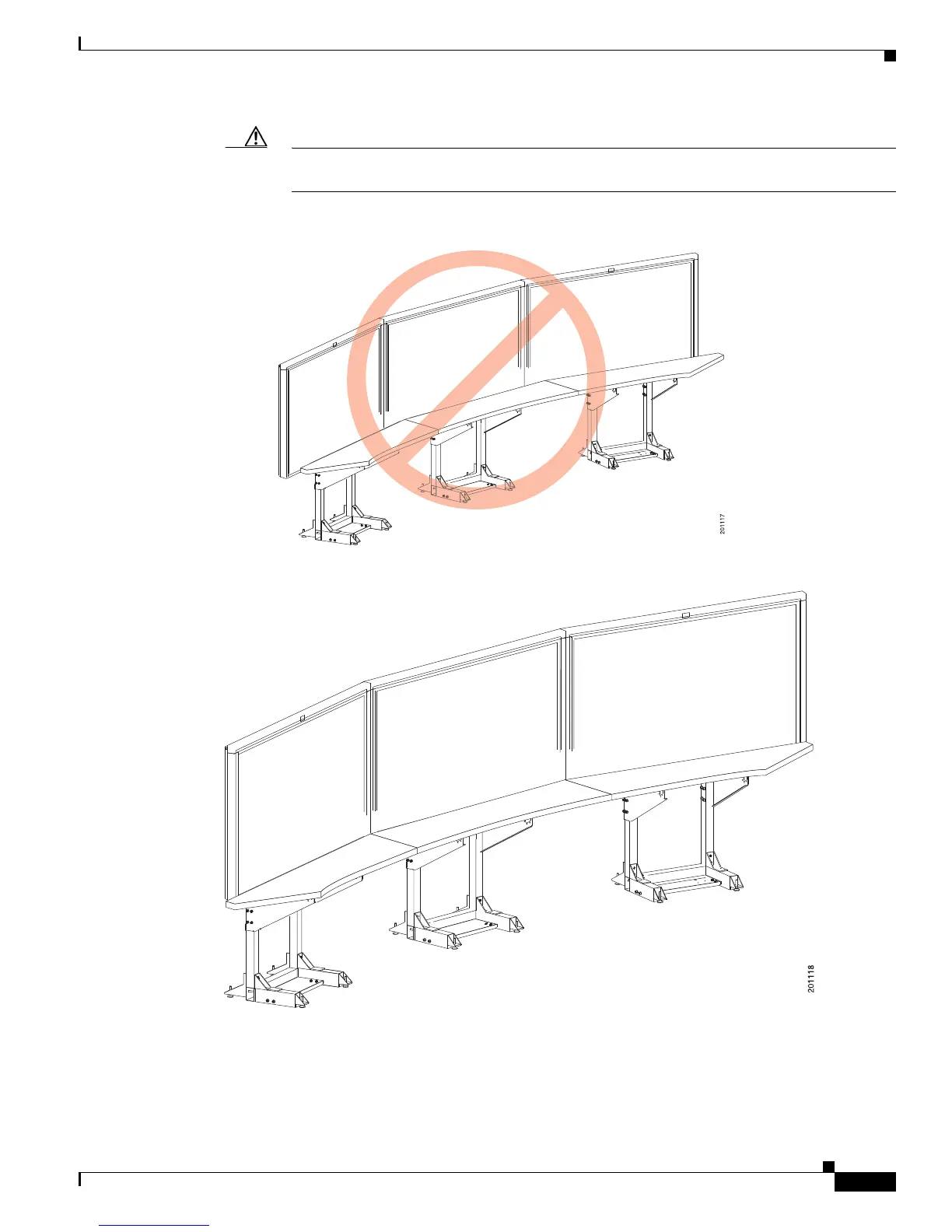

Figure 3-8 Align the seams of the Display shelves with the seams between Plasma displays
Step 9
Complete the plasma display screen setup by applying the Black Buffer strips.
