6-12
Cisco TelePresence System 3200
OL-14521-01
Chapter 6 Building the First Row Table Assembly
Parts List
b. While a draw bolt is being tightened, hold the table edges together to avoid damage to the draw bolt
or the table segment.
c. Tighten the draw bolts so the two table segments are connected snugly.
d. While one person is tightening the draw bolts from below, it is important for the support person to
maintain the alignment of the table segment edges.

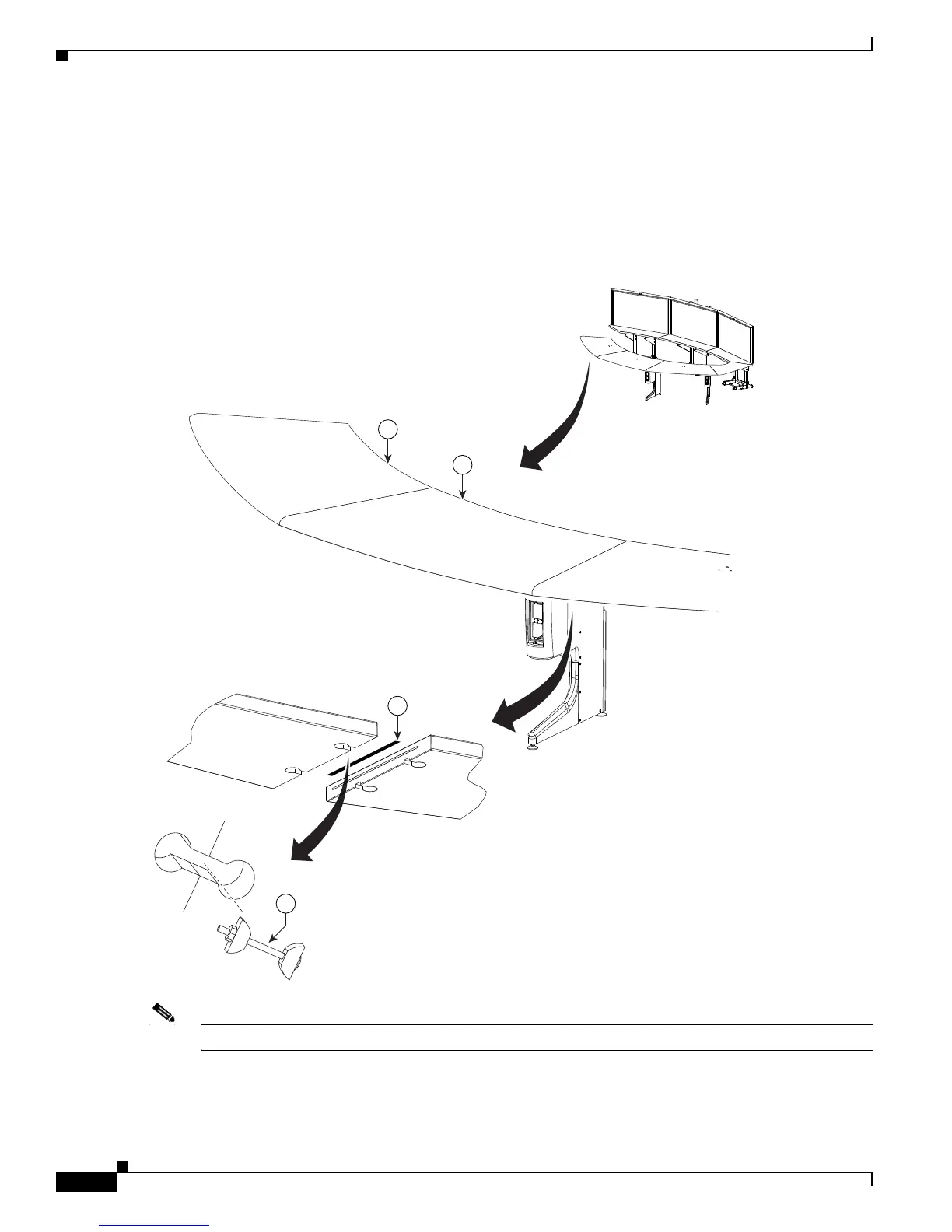

Figure 6-10 Left Table segment
Note The splines have different lengths. Use a spline that is slightly smaller than the slot in the table top.
Step 11 Attach the left center Table leg.
