7-7
Firepower 7000 and 8000 Series Installation Guide
Chapter 7 Hardware Specifications
Firepower 7000 Series Devices
See the following sections for more information:
Firepower 7110 and 7120 Chassis Front View, page 7-7
Firepower 7110 and 7120 Chassis Rear View, page 7-11
Firepower 7110 and 7120 Physical and Environmental Parameters, page 7-12
Firepower 7110 and 7120 Chassis Front View
The front of the chassis contains the LCD panel, USB port, front panel, and either copper or fiber sensing
interfaces.

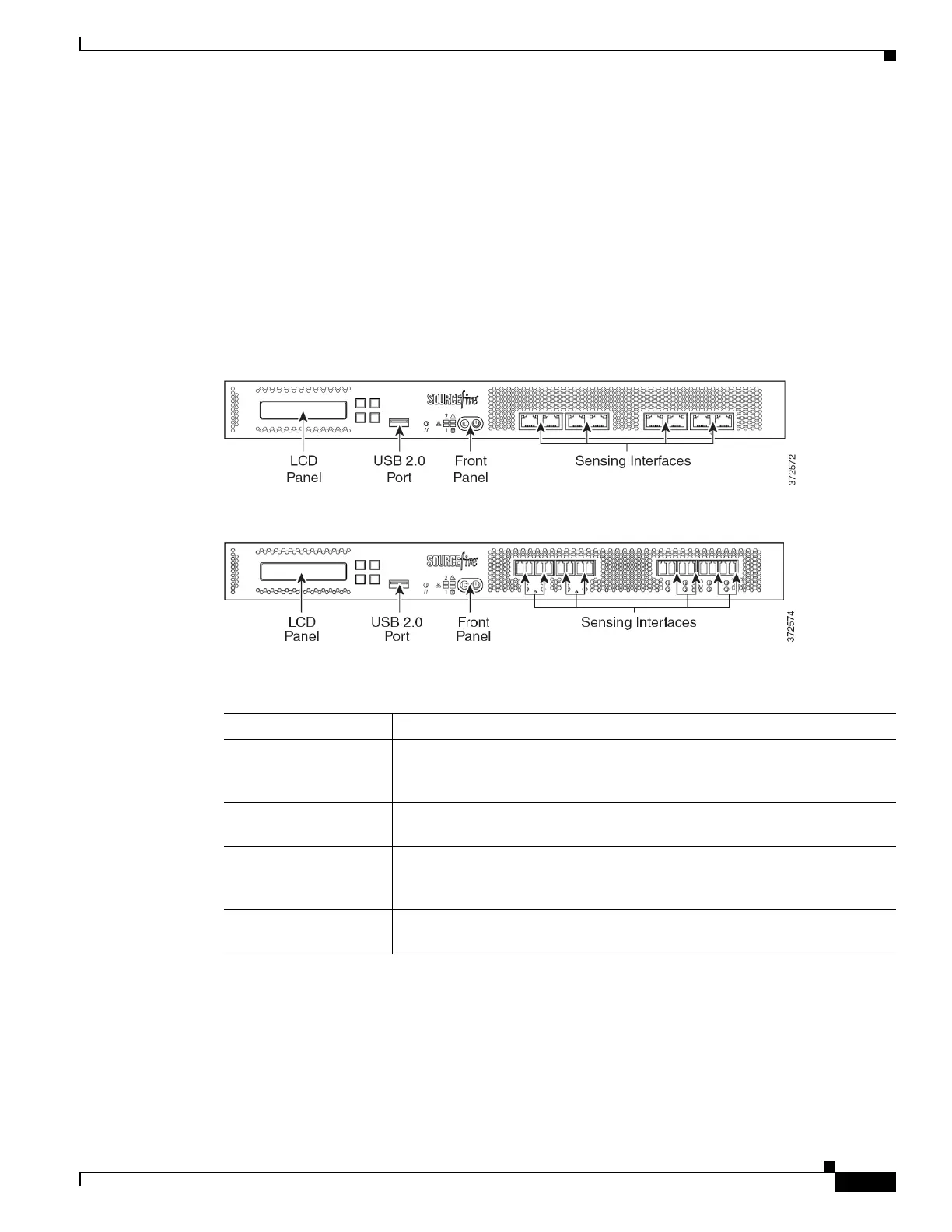

Figure 7-5 Firepower 7110 and 7120 with Copper Interfaces (Chassis: GERY-1U-8-C-AC)
Figure 7-6 Firepower 7110 and 7120 with Fiber Interfaces (Chassis: GERY-1U-8-FM-AC)
The following table describes the features on the front of the appliance.
Table 7-10 Firepower 7110 and 7120 System Components: Front View
Feature Description
LCD panel Operates in multiple modes to configure the device, display error messages,
and view system status. For more information, see Using the LCD Panel on
a Firepower Device, page 6-1.
Front panel USB 2.0
port
Allows you to attach a keyboard to the device.
Front panel Houses LEDs that display the system’s operating state, as well as various
controls, such as the power button. For more information, see
Figure 7-7Firepower 7110 and 7120 Front Panel, page 7-8.
Sensing interfaces Contain the sensing interfaces that connect to the network. For more
information, see Firepower 7110 and 7120 Sensing Interfaces, page 7-9.
