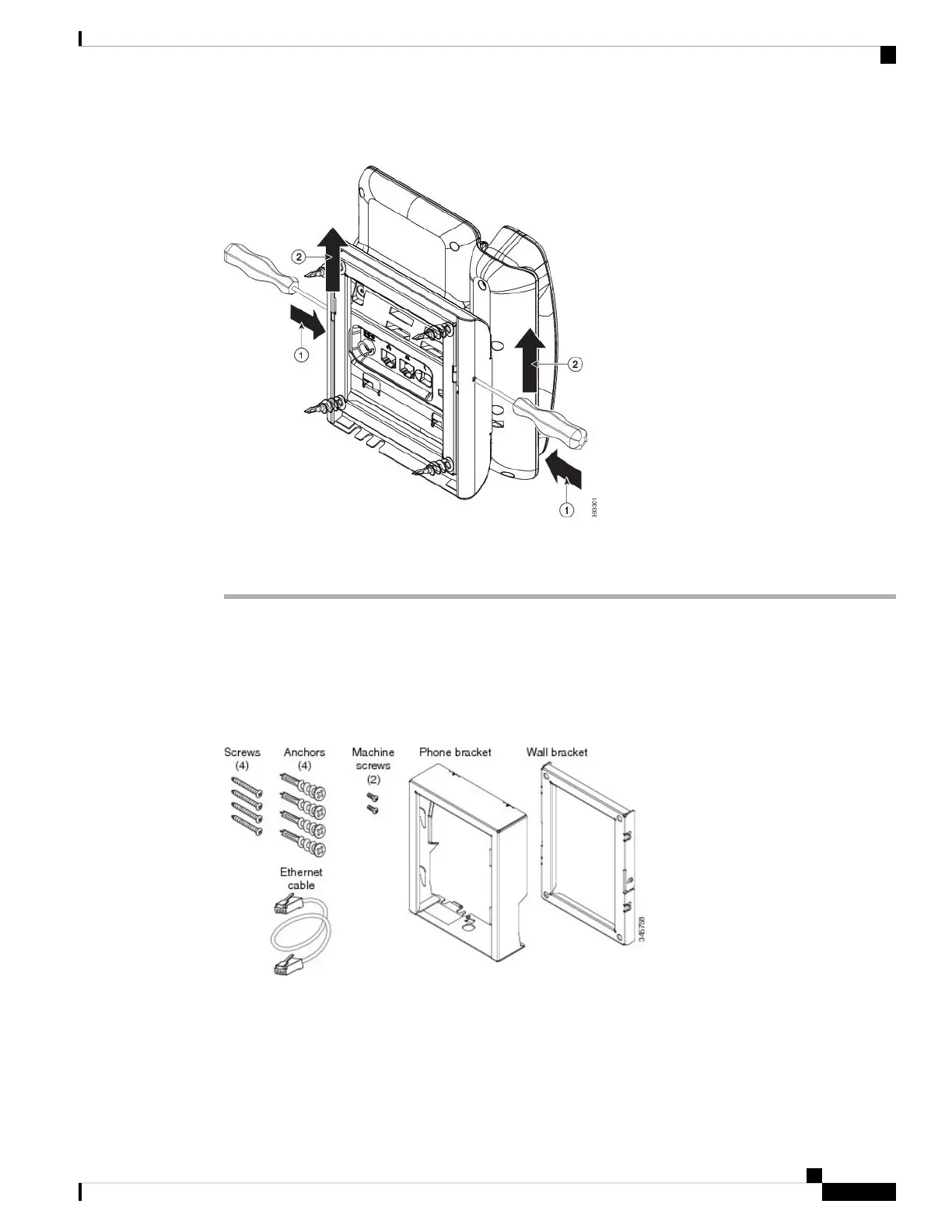

Figure 10: Disengage Tabs
Step 3 Press firmly to disengage the tabs and move the phone up at the same time to release the phone from the wall
bracket.
Non-Lockable Wall Mount Components
The following figure shows the components of the Cisco IP Phone 7800 Series Wall Mount Kit.
Figure 11: Wall Mount Kit Components
The package includes these items:
• One phone bracket
• One wall bracket
• Four M8-18 x 1.25-inch Phillips-head screws with four anchors
Cisco IP Phone 7800 Series Multiplatform Phones Administration Guide
99
Hardware and Accessory Installation
Non-Lockable Wall Mount Components

Cisco 7800 Series Specifications

General

Wireless	No
Video Support	No
PoE	Yes, 802.3af/at
Audio Codec Support	G.711, G.722, G.729, iLBC
Network Protocols	SIP, SDP, IPv4, IPv6, UDP, TCP, DNS, TFTP, HTTP, HTTPS, DHCP
Security Features	802.1X, TLS, SRTP
Power Options	PoE
Headset Port	3.5mm
Buttons	Line keys, navigation cluster, softkeys, mute, speakerphone, headset, volume control
Bluetooth	No
Ethernet Switch	Yes, 2-port 10/100/1000
USB Port	Yes, for headset (7875)
