Cisco 7800 Series Administration Guide

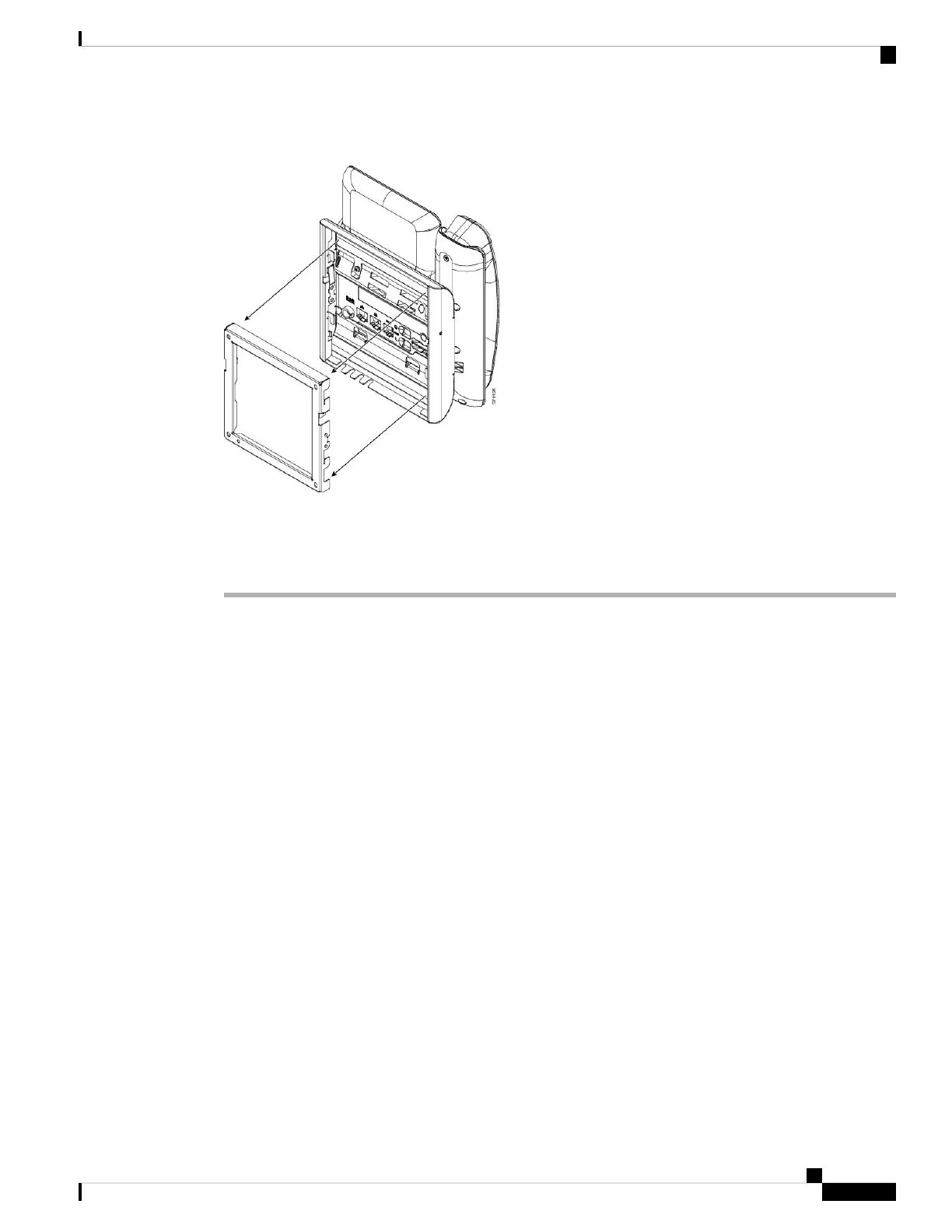

Figure 17: Phone to Wall Bracket Attachment
Step 5 Press the phone firmly into the wall bracket and slide the phone down. The tabs in the bracket click into
position.
Step 6 Proceed to Adjust the Handset Rest, on page 115.
Remove the Phone from the Non-Lockable Wall Mount
The phone mounting plate contains two tabs to lock the plate into the wall bracket. The following figure shows
the location and shape of the tabs.
Cisco IP Phone 7800 Series Multiplatform Phones Administration Guide
105
Hardware and Accessory Installation
Remove the Phone from the Non-Lockable Wall Mount

Cisco 7800 Series Specifications

General

Wireless	No
Video Support	No
PoE	Yes, 802.3af/at
Audio Codec Support	G.711, G.722, G.729, iLBC
Network Protocols	SIP, SDP, IPv4, IPv6, UDP, TCP, DNS, TFTP, HTTP, HTTPS, DHCP
Security Features	802.1X, TLS, SRTP
Power Options	PoE
Headset Port	3.5mm
Buttons	Line keys, navigation cluster, softkeys, mute, speakerphone, headset, volume control
Bluetooth	No
Ethernet Switch	Yes, 2-port 10/100/1000
USB Port	Yes, for headset (7875)
