Cisco 7800 Series Administration Guide

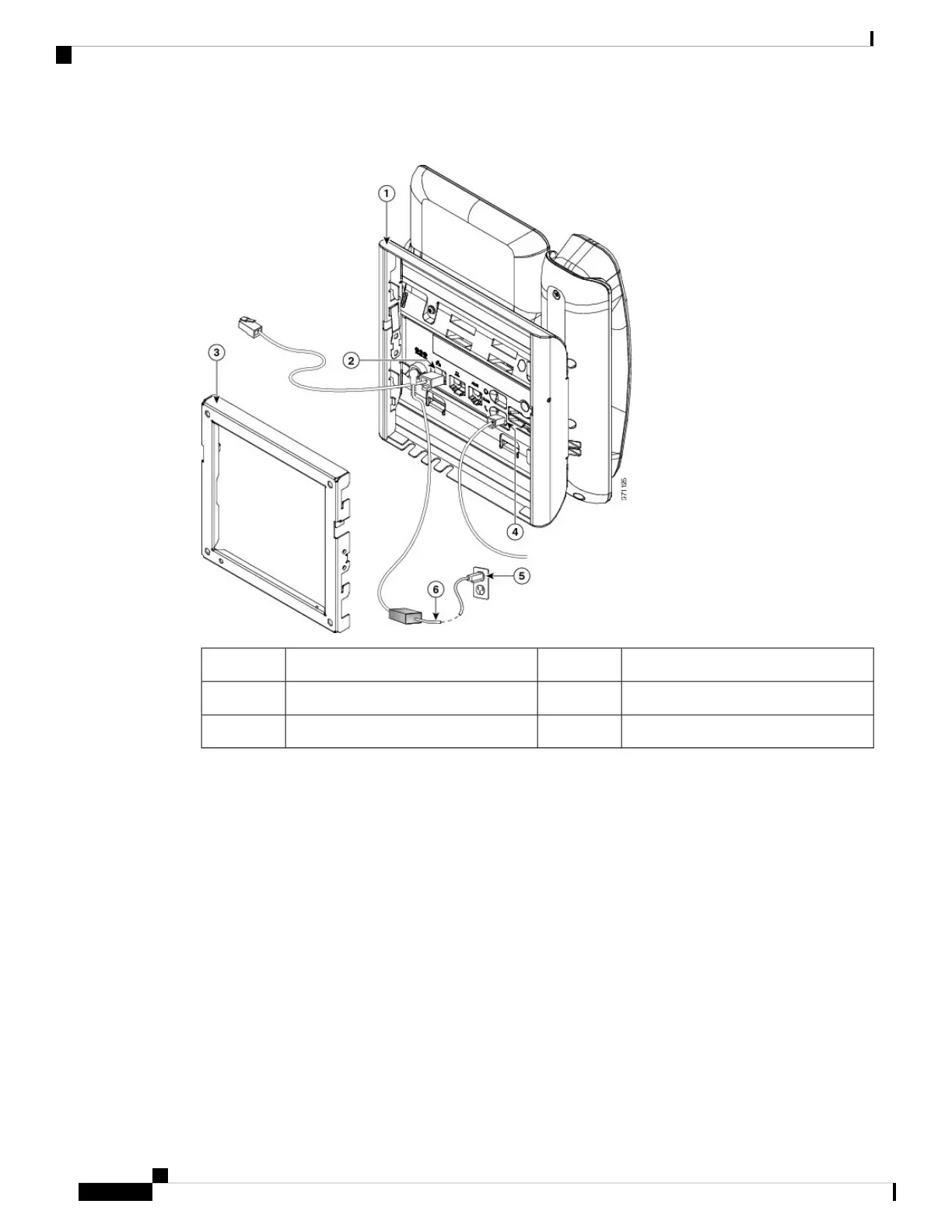

Figure 16: Cable Attachment
Handset Port4Phone Bracket1
AC Adapter Port5Network Port2
Optional Power Cable6Wall Bracket3
Step 4 Attach the phone to the wall bracket by inserting the tabs on the top of the wall bracket into the slots on the
phone bracket.
For cables that terminate outside of the brackets, use the cable-access openings in the bottom of the bracket
to position the power cord and any other cable that does not terminate in the wall behind the bracket. The
phone and wall bracket openings together form circular openings with room for one cable per opening.
Cisco IP Phone 7800 Series Multiplatform Phones Administration Guide
104
Hardware and Accessory Installation
Install the Non-Lockable Wall Mount Kit

Cisco 7800 Series Specifications

General

Wireless	No
Video Support	No
PoE	Yes, 802.3af/at
Audio Codec Support	G.711, G.722, G.729, iLBC
Network Protocols	SIP, SDP, IPv4, IPv6, UDP, TCP, DNS, TFTP, HTTP, HTTPS, DHCP
Security Features	802.1X, TLS, SRTP
Power Options	PoE
Headset Port	3.5mm
Buttons	Line keys, navigation cluster, softkeys, mute, speakerphone, headset, volume control
Bluetooth	No
Ethernet Switch	Yes, 2-port 10/100/1000
USB Port	Yes, for headset (7875)
