Connecting Your Phone
Cisco IP Phone 7970 5
Connecting Your Phone

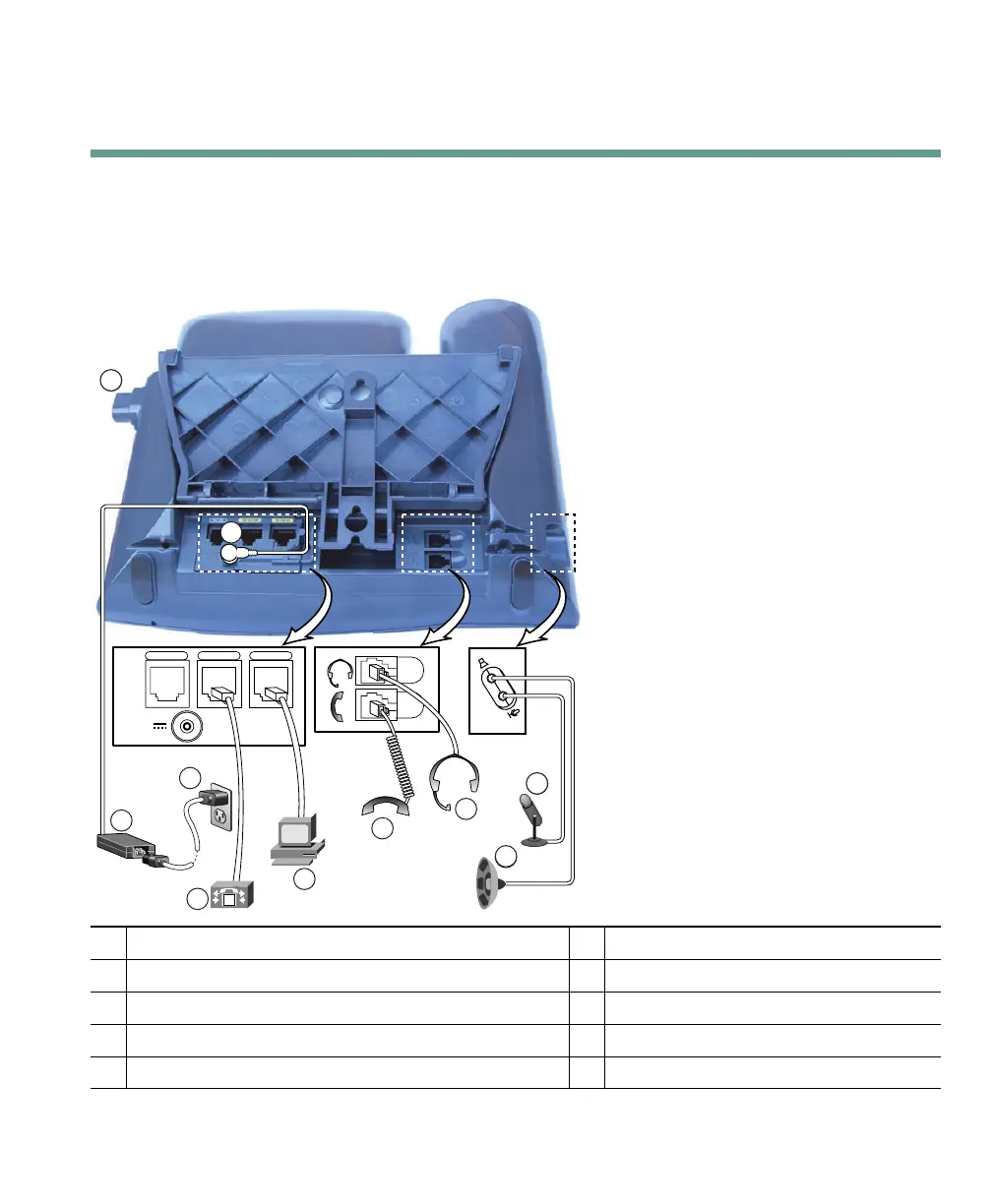

Your system administrator will likely connect your new Cisco IP Phone to the corporate IP telephony
network. If that is not the case, refer to the to the graphic and table below to connect your phone.
1
DC Adaptor port
6
Handset port
2
AC/DC Power supply with DC connector for phone
7
Headset port
3
AC power cable with wall socket plug
8
External speakers port
1
1. Contact your system administrator for assistance if you want to connect devices to these ports.
4
Network port (10/100 SW)
9
External microphone port
1
5
Access port (10/100 PC)
10
Footstand button
1
8
9
105271
RS232 10/100 SW 10/100 PC
DC48V
9
9
10
8
7
5
4
3
2
6
