2-7

Cisco Integrated Services Router Hardware Installation Guide

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

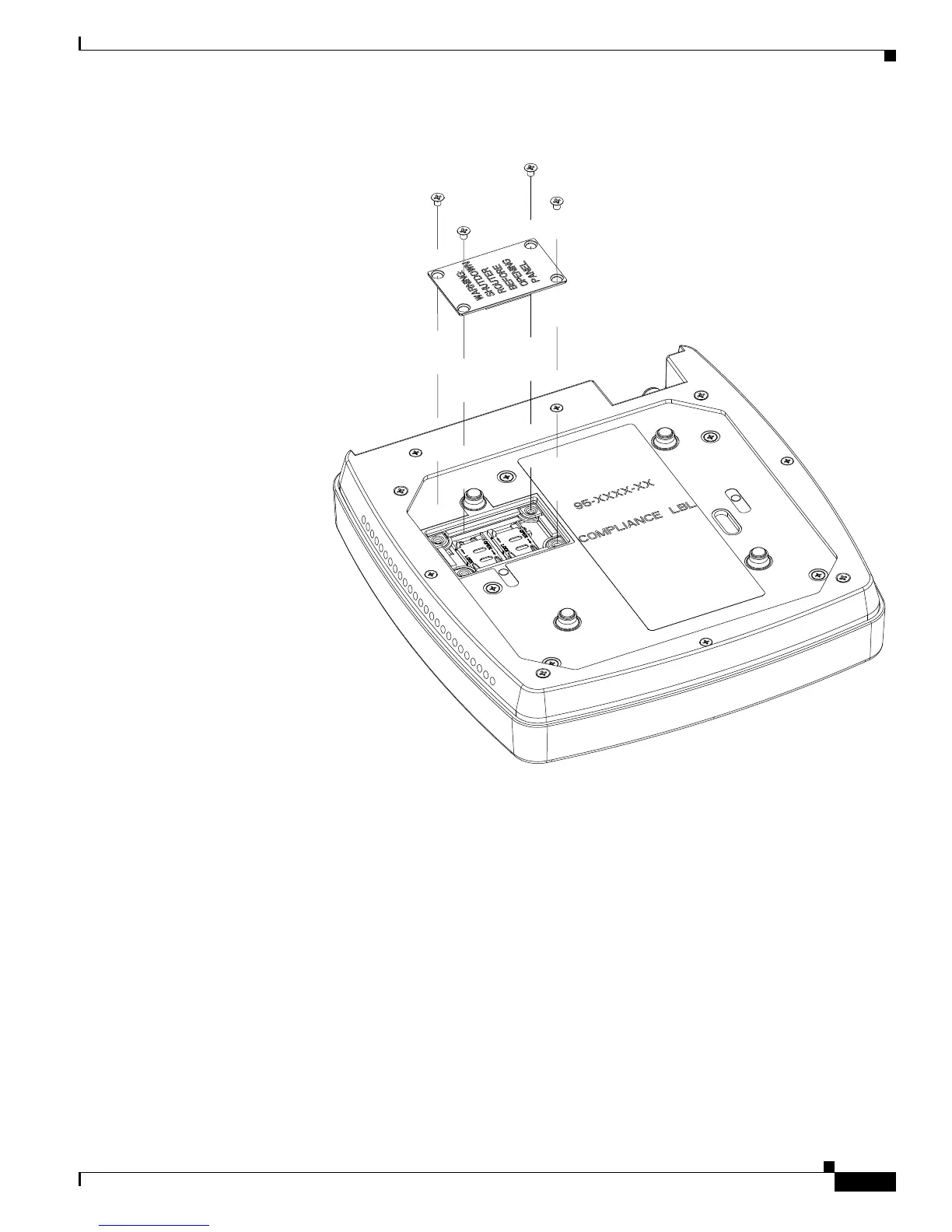

Figure 2-6 Accessing the SIM Card

Step 4 Remove the SIM card and install the new cards.

Step 5 Reinstall the same 6-32 flat head screws using a screw driver to secure the access panel back in place.

Figure 2-7 shows the SIM card installed and the SIM access panel closed.

344397
