2-30
Cisco Integrated Services Router Hardware Installation Guide
Chapter 2 Installing the Router
Installing the Cisco 810 ISR
Installing the Router Using the Configurable Low Profile DIN Mount
If space is limited between the DIN rail and the enclosure cover, the Configurable Low Profile DIN
Mount can be utilized to mount the router flat against the DIN rail. It can also be configured in three
different ways to allow router cabling to exit from the bottom, right or left.

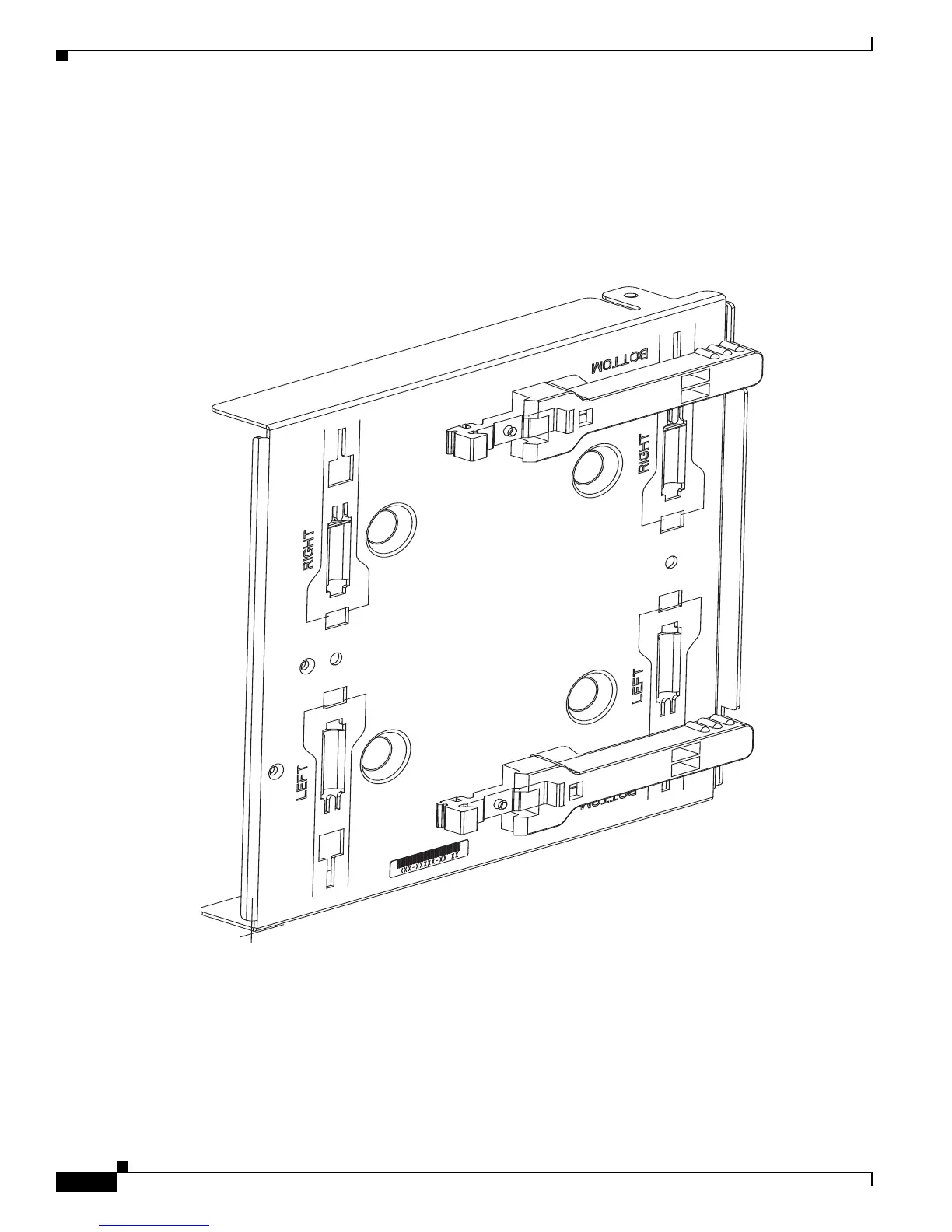

Figure 2-26 Configurable Low Profile DIN Mount standard configuration
391198

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
