Cisco 860 Series User Manual

3-31
Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series
Connecting a GE Line to an GE WAN Port
To connect the Gigabit Ethernet (GE) WAN port on the router, follow these steps:
Step 1 Connect one end of the yellow cable to the GE WAN port as shown in Figure 3-27.

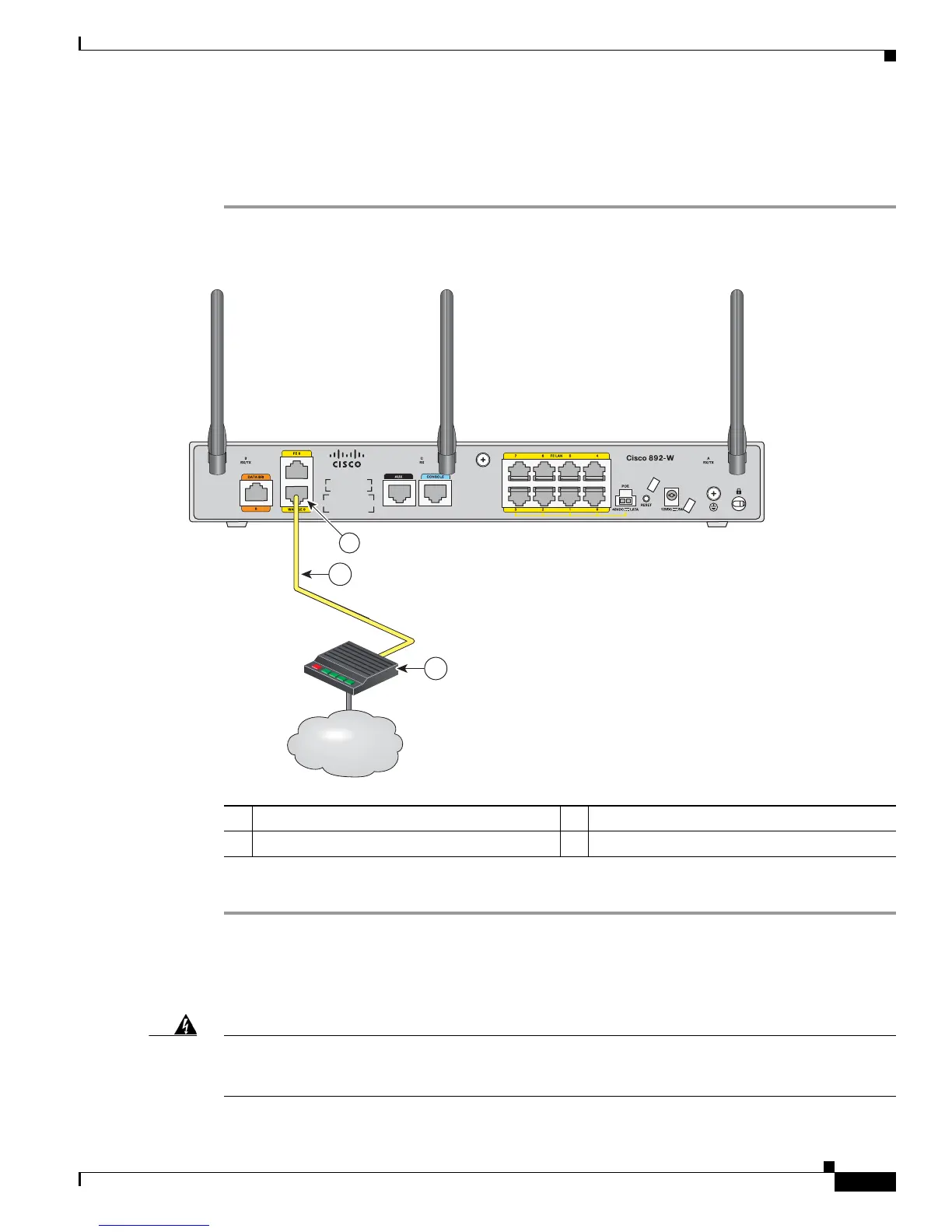

Figure 3-27 Connecting the GE WAN Port
Step 2 Connect the other end of cable to an available port on the modem.
Connecting an xDSL Line
Warning Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF
or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables,
detach the end away from the unit first. Statement 1026
1 GE WAN port 3 Modem connected to the Internet
2 CAT 5 cable
Internet
Internet
Internet
2
3
274493
1

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
