3-2
Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 810 Series
Preventing Damage to the Router
To prevent damage to your router, follow these guidelines when connecting devices to your router:
• Turn off power to the devices and to the router until all connections are completed.
Caution Do not turn on the devices until after you have completed all connections to the router.
• If you must supply your own cable, see the “Cisco 860, 880, 890 Series” section on page A-11 for
cabling specifications. If this appendix does not provide specifications for a particular cable, we
strongly recommend ordering the cable from Cisco.
Connecting a PC, Server, or Workstation
To connect a PC (or other Ethernet devices) to an Ethernet switch port, follow these steps:
Step 1 Connect one end of the yellow Ethernet cable to an Ethernet switch port on the router. See Figure 3-1.

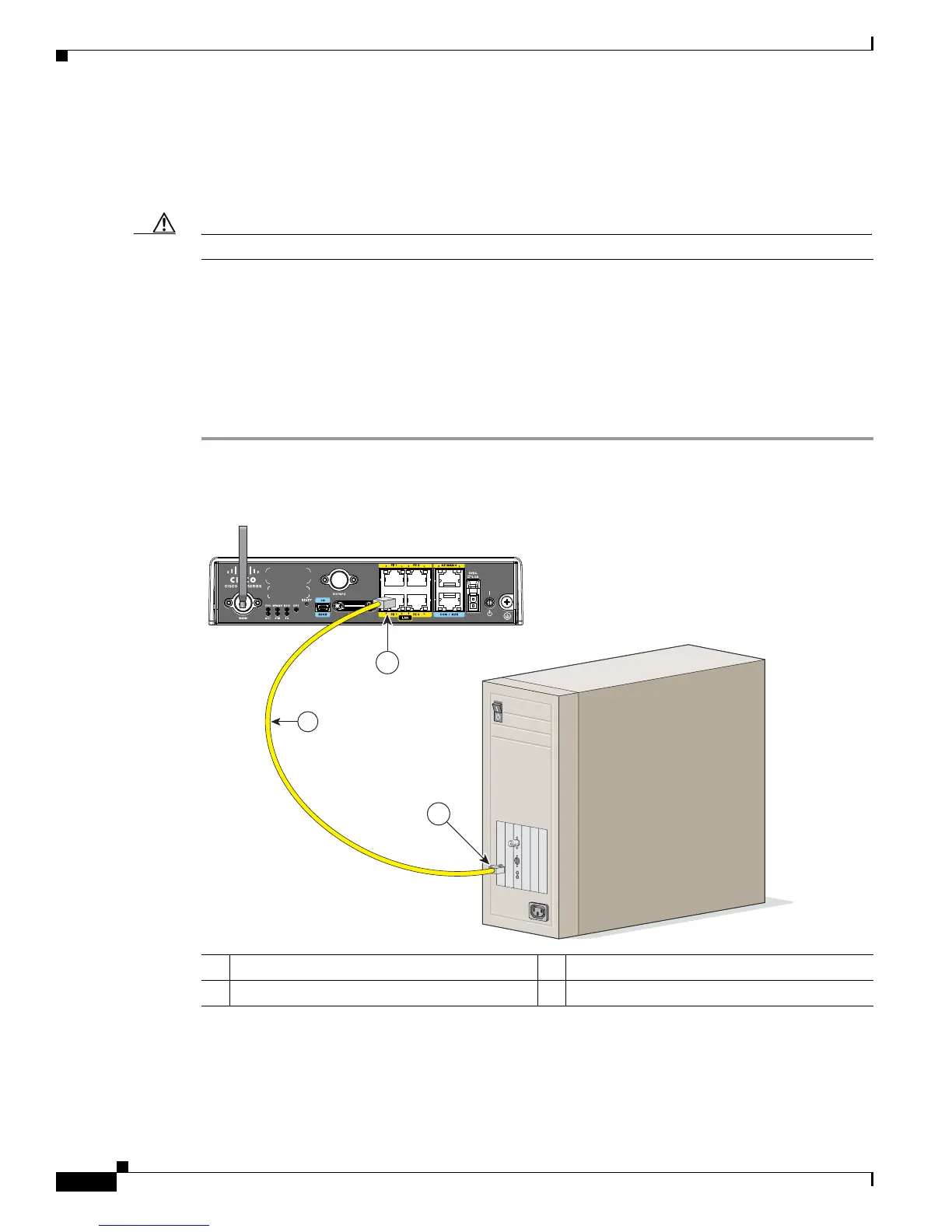

Figure 3-1 Connecting a Server, PC, or Workstation
Step 2
Connect the other end of the cable to the RJ-45 port on the network interface card (NIC) that is installed
in the PC, server, or workstation.
1 Yellow Ethernet cable 3 RJ-45 port on the network interface card
2 Ethernet switch port on the router
245583
3
2
1

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
