Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series
To connect the FXS line, follow these steps:
Step 1 Connect one end of the straight-through RJ-11 cable to the FXS port.

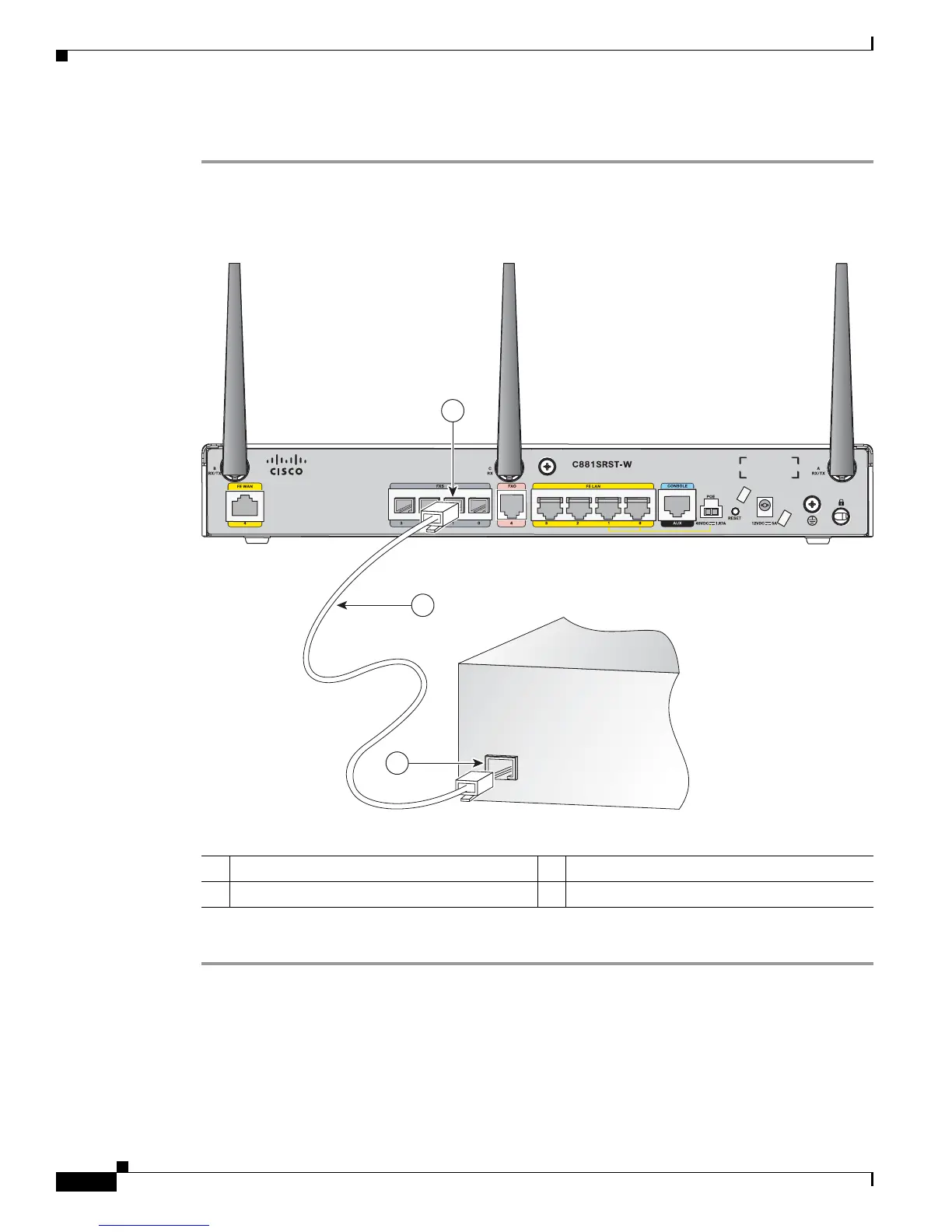

Figure 3-36 shows an FXS line connection.
Figure 3-36 Connecting an FXS Line
Step 2 Connect the other end of the cable to the RJ-11 port on the fax machine or telephone.
Connecting an FXO Line
Use a straight-through RJ-11 cable to connect the FXO voice port to the PSTN or PBX through a
telephone wall outlet.
1 FXS port 3 RJ-11 port
2 RJ-11 cable
Fax machine
or telephone
241907
1
2
3

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
