Cisco 860 Series User Manual

3-35
Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series

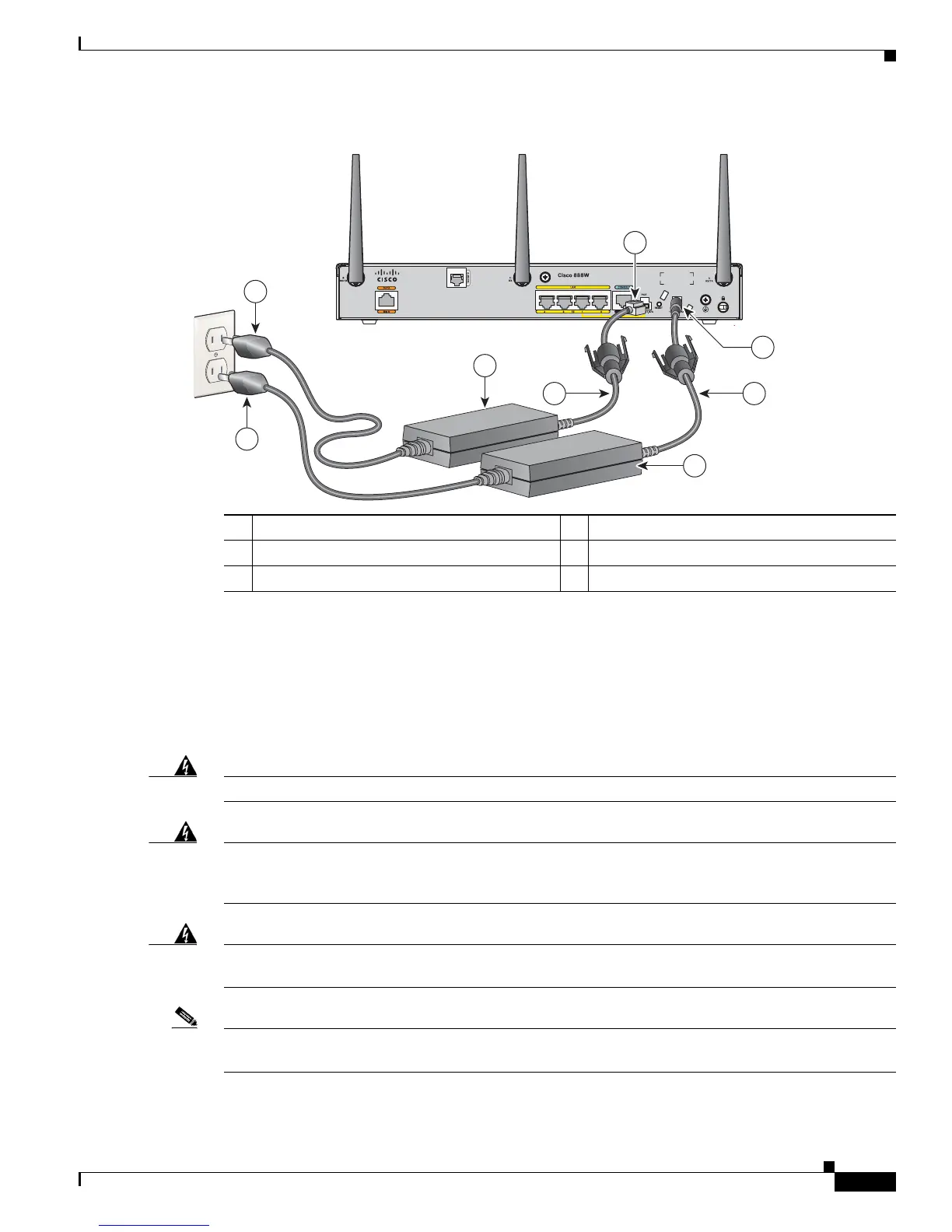

Figure 3-30 Connecting PoE for the Cisco 880 and the Cisco 890 Series Routers
The Cisco 880 series ISRs with embedded WLAN antennas require a single external power supply: a
30-W power supply for non-POE-enabled routers or a 60-W power supply for POE-enabled routers. For
the back panels of some of these routers, see Figure 1-29 and Figure 1-31.
Connecting the AC Adapter
Warning The device is designed to work with TN power systems. Statement 19
Warning This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
the protective device is rated not greater than:
120 VAC, 20 A U.S. (240 VAC, 16 to 20 A international). Statement 1005
Warning This unit might have more than one power supply connection. All connections must be removed to
de-energize the unit. Statement 1028
Note The Cisco 892FSP utilizes a single 4-pin power connector type. Figure 3-33 shows the pin number
assignment of the Cisco 892FSP Power Adapter Connector.
1 48-VDC PoE input jack 4 AC plug
2 Power cord 5 12-VDC input power-jack plug
3 Power adapter—48 VDC 6 Power adapter—12 VDC
231995
5
22
6
4
4
3
1

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
