Cisco Integrated Services Router Hardware Installation Guide
Chapter 2 Installing the Router
Installing the Cisco 810 ISR

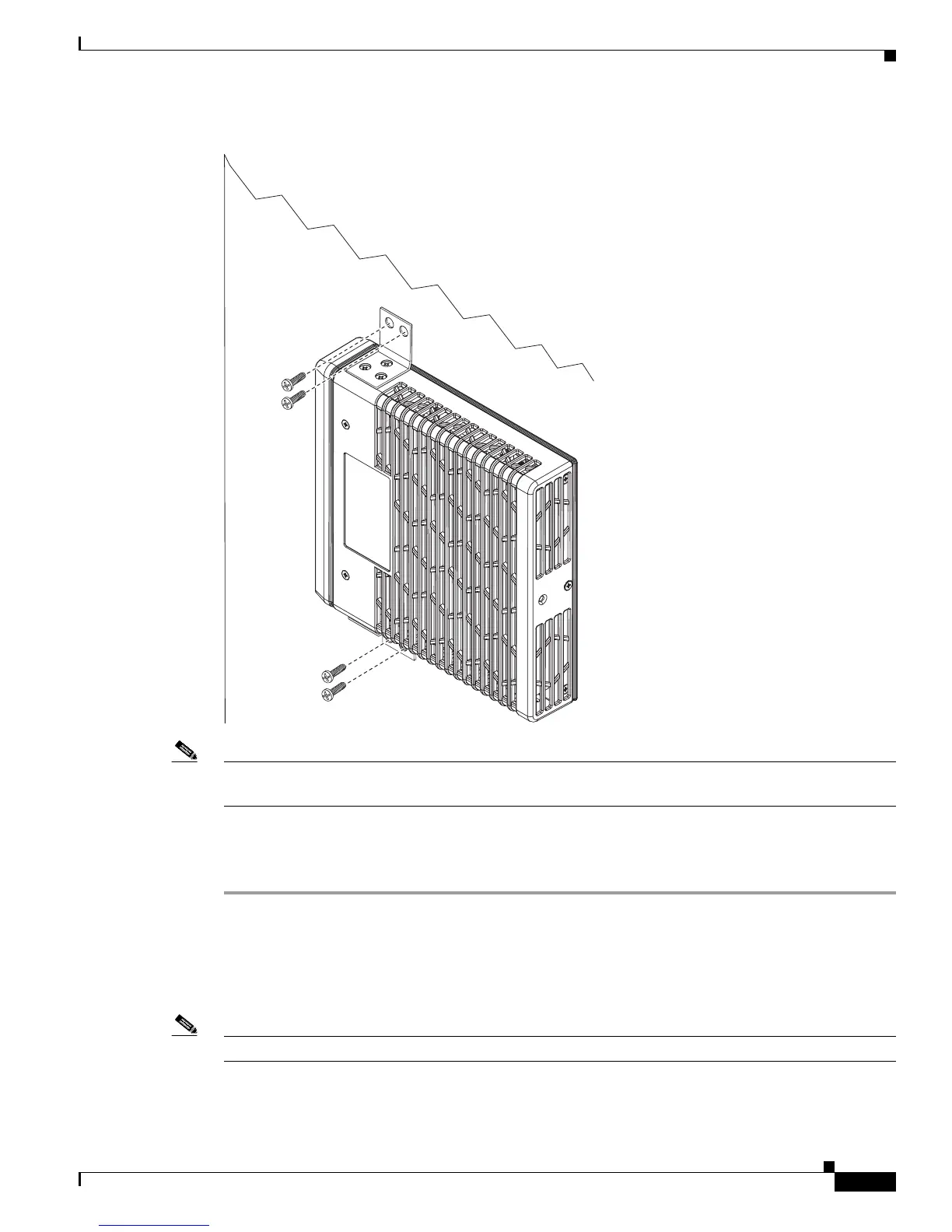

Figure 2-22 Installing the Router to the Wall
Note For hollow-wall mounting, each bracket requires two wall anchors with washers. Wall anchors and
washers must be size number 10.
Step 4 Route the cables so that they do not put a strain on the connectors or mounting hardware.
To comply with IP 41, cables should be routed down relative to the router to prevent water from
travelling on the cables.
Installing a DIN Rail
You can use either the 7.5-mm or the 15-mm thick DIN rail for the Cisco 819 ISR. Secure the DIN rail
to the mounting surface approximately every 7.8 inches (200 mm) and use end-anchors appropriately.
Note DIN rail mounting is not supported on Cisco 819HGW and Cisco 819HWD ISRs.
282623

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
