Cisco Integrated Services Router Hardware Installation Guide
Chapter 2 Installing the Router
Installing the Cisco 810 ISR
To attach the Cisco 819 ISR to a 35-mm wide DIN rail, follow these steps.
Step 1 Attach the DIN rail to the back of the router using the three screws provided. (See Figure 2-23.)

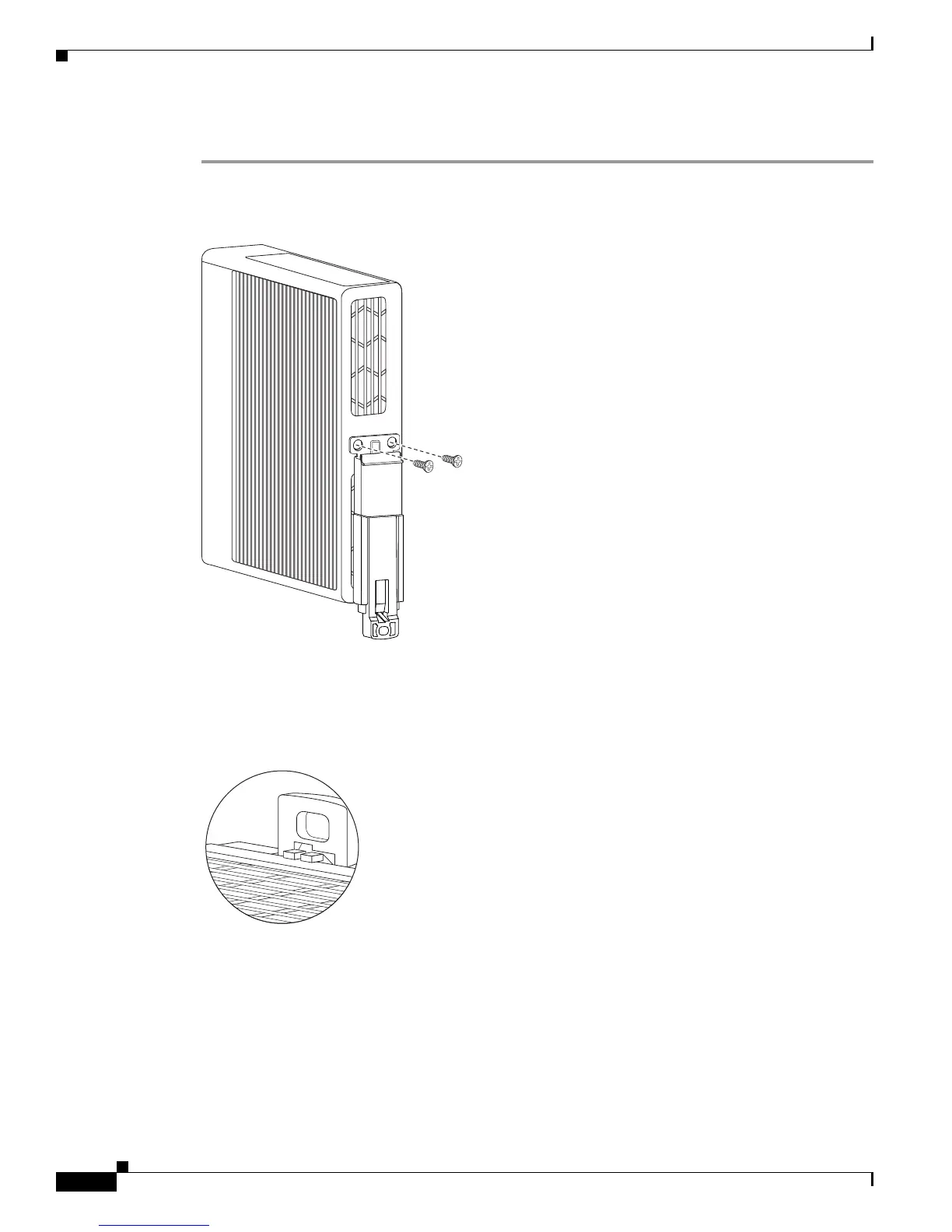

Figure 2-23 Attaching the DIN Rail to the Cisco 819 ISR
Step 2 Find the tab on the end of the DIN rail that extends past the router. (See Figure 2-24.) Press the tab in
and slide the DIN rail out while the tab is pressed down.
Figure 2-24 DIN Rail Tab
Step 3
Turn the router sideways so that the antenna is at the top.
Step 4 Position the rear edge of the router directly in front of the DIN rail, making sure that the DIN rail fits in
the space between the latch and hook.
Step 5 Position the router so that the hook on the DIN rail bracket hooks onto the top edge of the DIN rail. The
weight of the product can rest on the hook temporarily while the DIN rail bracket latches are secured.
Step 6 Push the DIN rail bracket latch up after the router is over the DIN rail to secure it. The router is now
installed in the DIN rail. (See Figure 2-25.)
282624
282625

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
