2-15
Cisco Integrated Services Router Hardware Installation Guide
Chapter 2 Installing the Router
Installing the Cisco 810 ISR

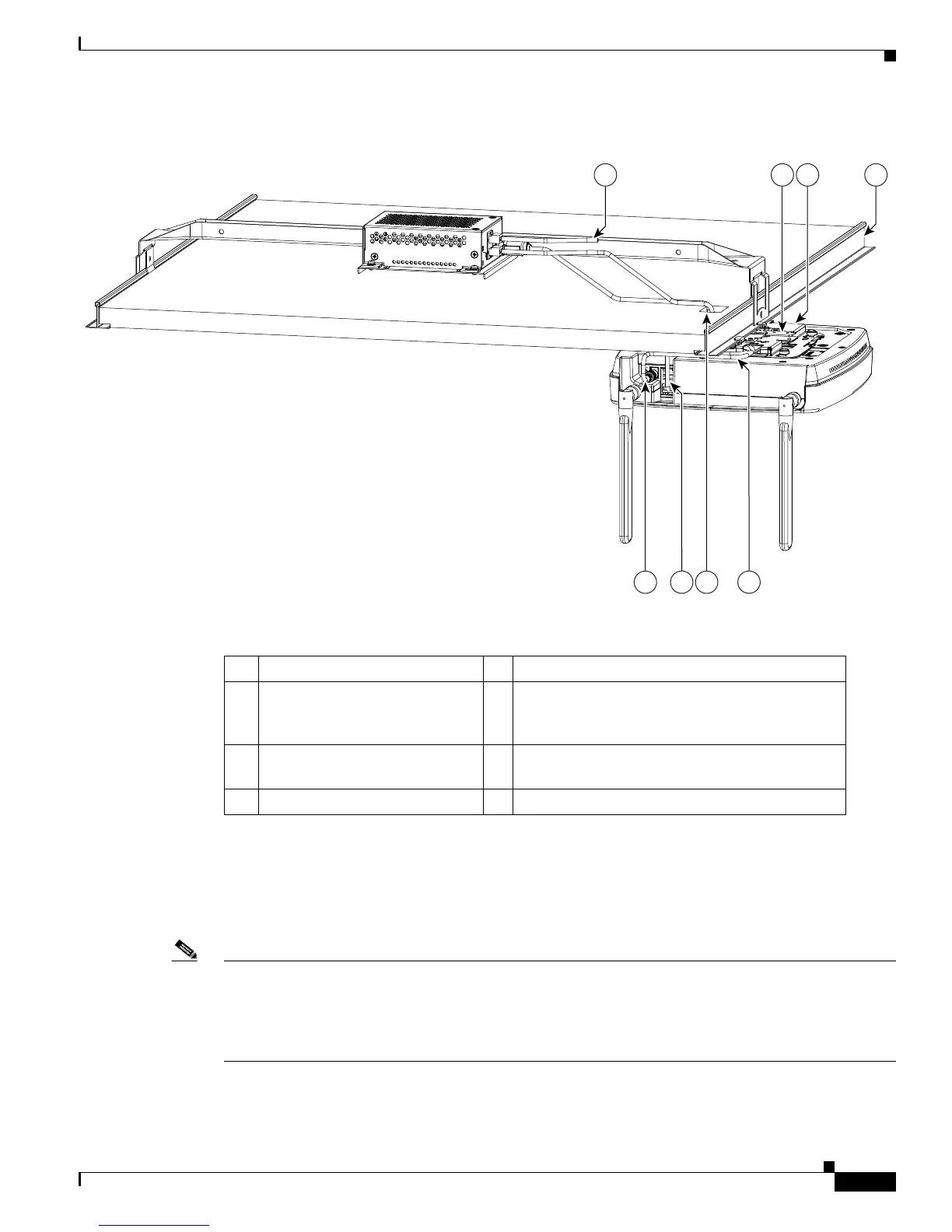

Figure 2-14 Suspended Ceiling Mounting Details
Mounting the Cisco 812 ISR on a Hard Ceiling or a Wall
This procedure describes the steps required to mount the Cisco 812 ISR on a ceiling constructed of
3/4-inch (19.05 mm) or thicker plywood using #8 fasteners using the universal mounting bracket
(C810-BR-CM).
Note The Cisco 812 ISR integrated antennas perform best when the router is mounted on horizontal surfaces
such as a table top or ceiling. For advanced features such as voice, location, and router detection, ceiling
mounting is strongly recommended. However, for smaller areas such as conference rooms, kiosks,
transportation environments, or hot-spot usage where data coverage is the primary concern, the unit may
be wall mounted using wall anchors or screws.
344533
1 27 8
4 3
65
1 To PoE+ power source 5 GE CAT5 cable to PoE+ splitter
2 Ceiling T-rail 6 Power and GE cable routed through a ceiling
mounting bracket and into the router so that the
cabling is hidden from directly below
3 Ceiling tile with opening cut for
cables
7 Ceiling grip clip
4 Power cable to PoE+ splitter 8 Ceiling mount bracket
