Cisco 860 Series User Manual

2-43
Cisco Integrated Services Router Hardware Installation Guide
Chapter 2 Installing the Router
Installing the Cisco 860, 880, 890 ISR
Step 3 Hang the router on the screw without forcibly pushing towards the wall side. The screw head may
damage the protection wall inside. Place the power adapter on a nearby horizontal surface. See
Figure 2-38.

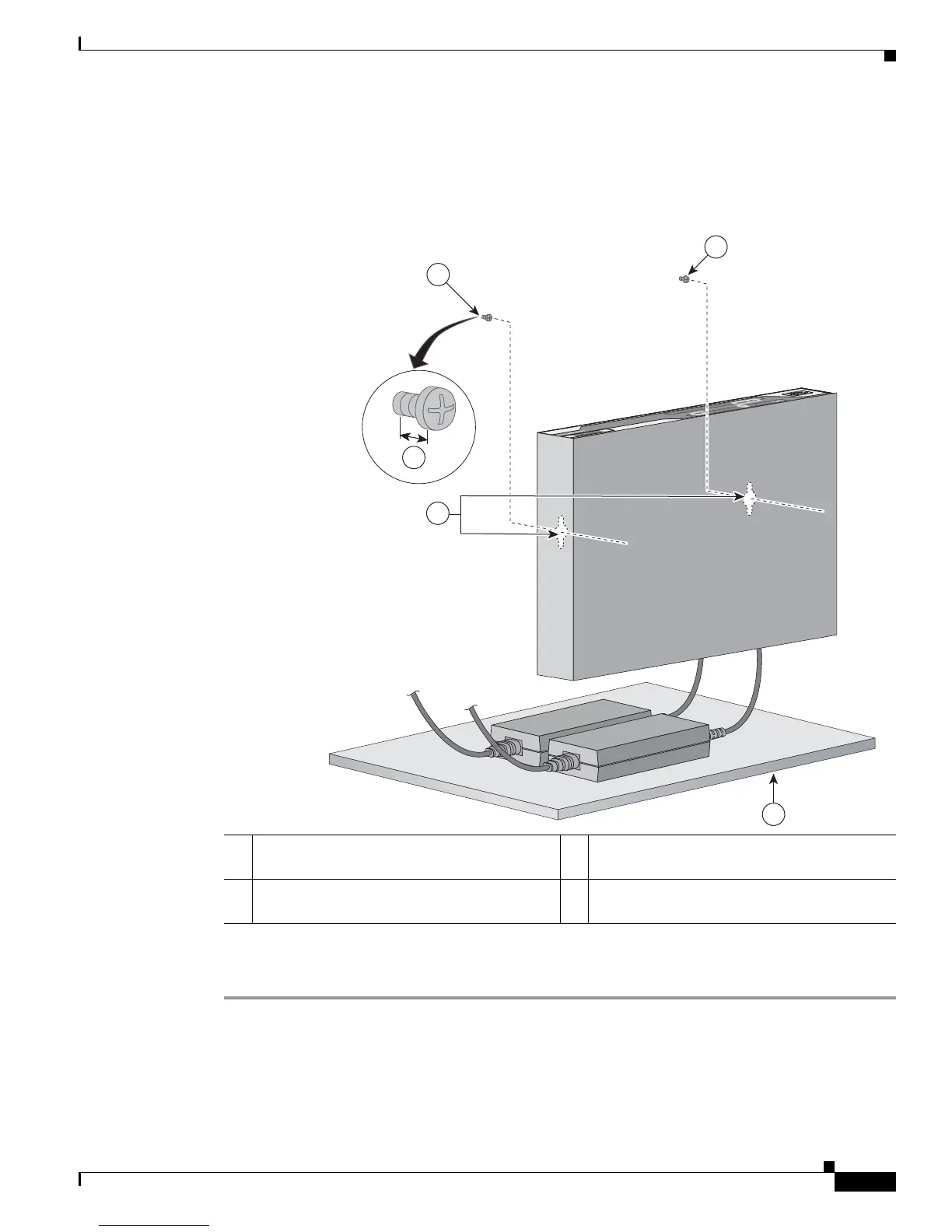

Figure 2-38 Router Mounted on the Wall
Step 4 Connect the chassis to a reliable earth ground. For the chassis ground connection procedures, see the
“Installing Cisco 890 Series in a Rack” section on page 2-52.
1 Two number-10 wood screws mounted on the
wall
3 Horizontal surface on which to place the
power adapter
2 Wall-mount holes 4 Distance between the screw head and the wall,
1/8 in. (0.32 cm)
231982
4
2
1
1
3

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
