3-22
Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series
Note The antenna connector receptacle may be located on the left, right, or front of the 3G card, depending
on your card.
Figure 3-18 and Figure 3-19 show the antenna connected to the 3G card with an SSMB type plug, and
the antenna with the SMK-TS-9 connector.

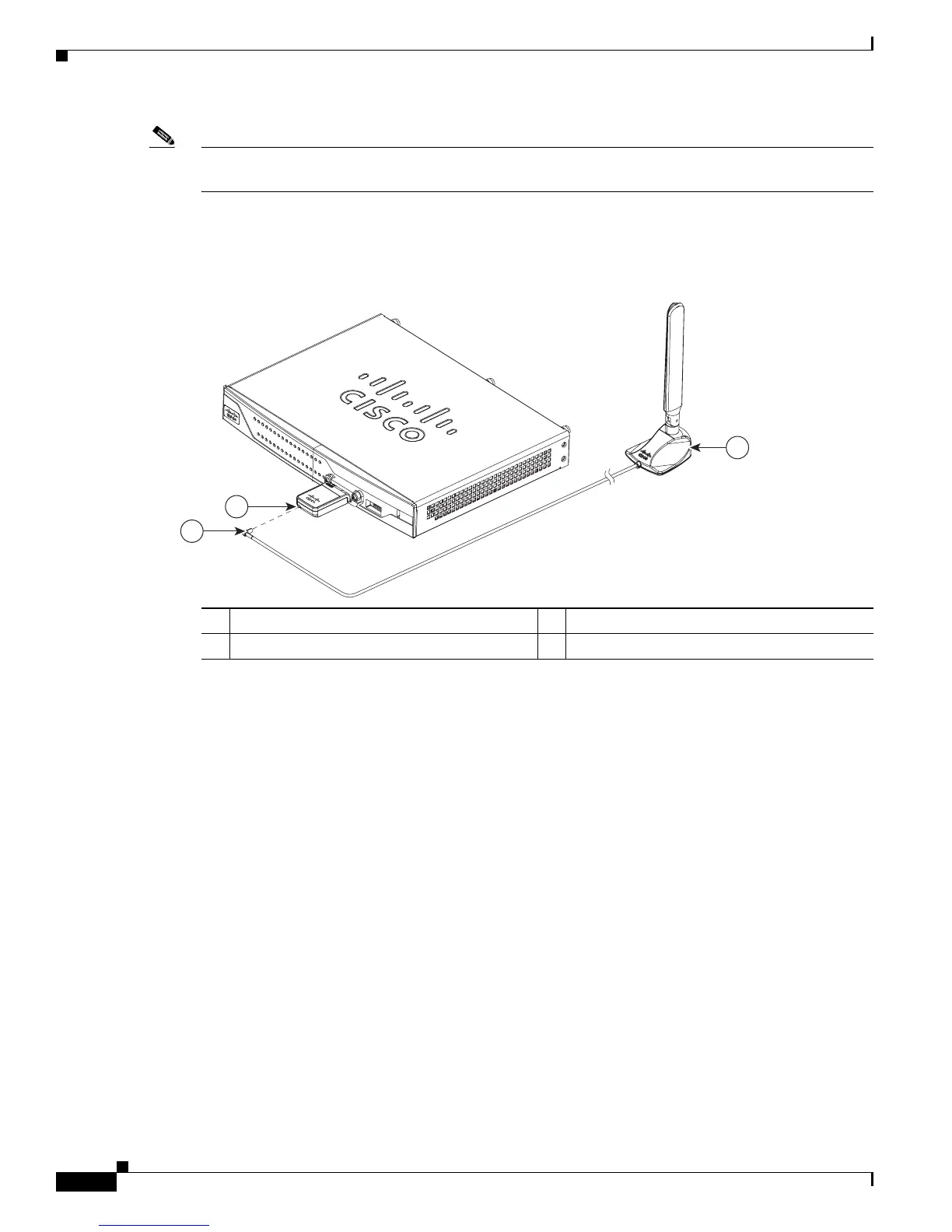

Figure 3-18 Antenna connected to the 3G Card with SSMB connector
1 Antenna on a cradle 3 Antenna connector receptacle
1
1. The antenna connector receptacle is located on either the left, right or front of the card for different SKUs. Please locate the
receptacle of your card before plugging in the cable.
2 Antenna SSMB connector
272653
1
2
3

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
