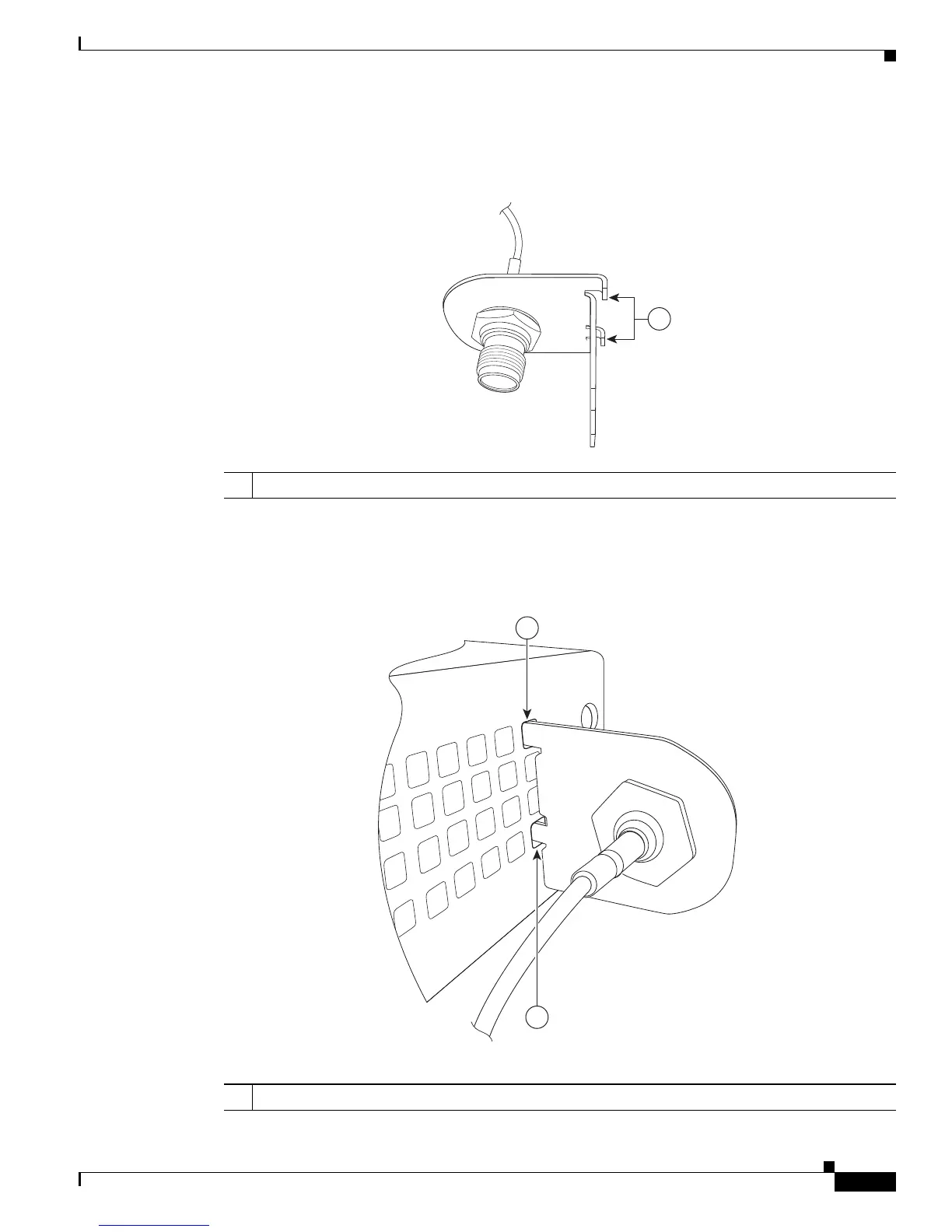

Step 2 Locate the hooks on the adapter as shown in Figure 3-21.
Figure 3-21 Locating the Hooks on the Adapter
Step 3
Align and insert the hooks of the adapter into the air vent holes on the left side router body as shown in
Figure 3-22.
Figure 3-22 Inserting the Hooks
279122
1
1 Hooks on the adapter
279123
1
1
1 Hooks aligned and inserted into the router.

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
