Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series
Step 5 Connect the extension cable to the 3G card, as described in the “Connecting the 3G Card” section on
page 3-18. The complete assembly is shown in Figure 3-24.

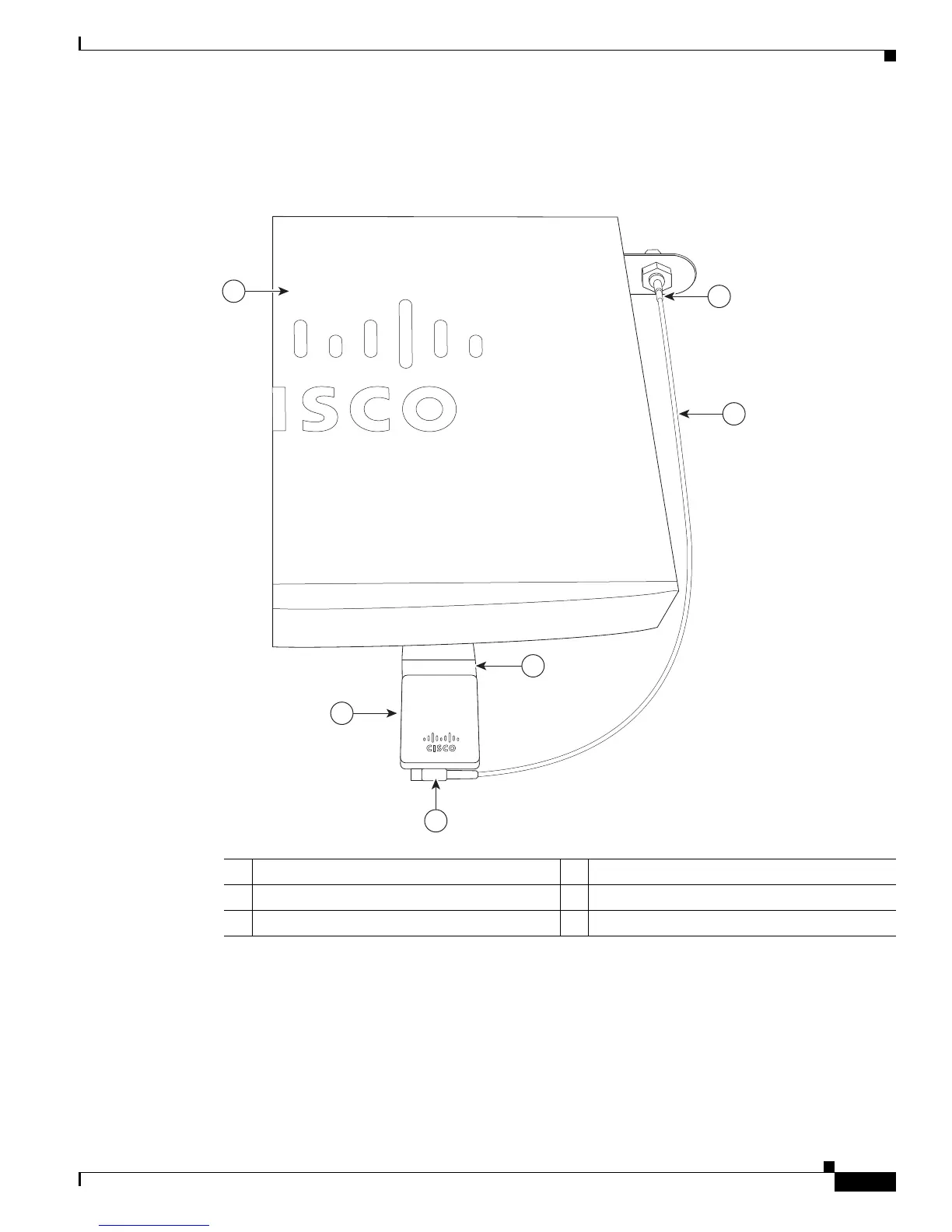

Figure 3-24 Adapter Connected to 3G Card and Router Chassis
Now the adapter is ready for use with the extension cable.
Table 3-3 lists the loss information for the ultra-low-loss (ULL) LMR 400 cables available with the
adapter for the 3G fixed platforms.
1 Router chassis 4 SSMB or SMK-TS-9 connector
2 3G adapter for extended cable/antenna 5 3G card inserted into the router
3 Cable 6 3G card
279089
3
2
1
6
5
4

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
