Cisco 860 Series User Manual

3-29
Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series
To connect the Data BRI port to the ISDN service provider, follow these steps:
Note Although the following procedure shows a Cisco 888W data router, this procedure applies to all
Cisco 880 series router with a Data BRI port.
Step 1 Connect one end of the orange ISDN S/T cable to the Data BRI port on the router. Figure 3-25 shows a
Data BRI connection.

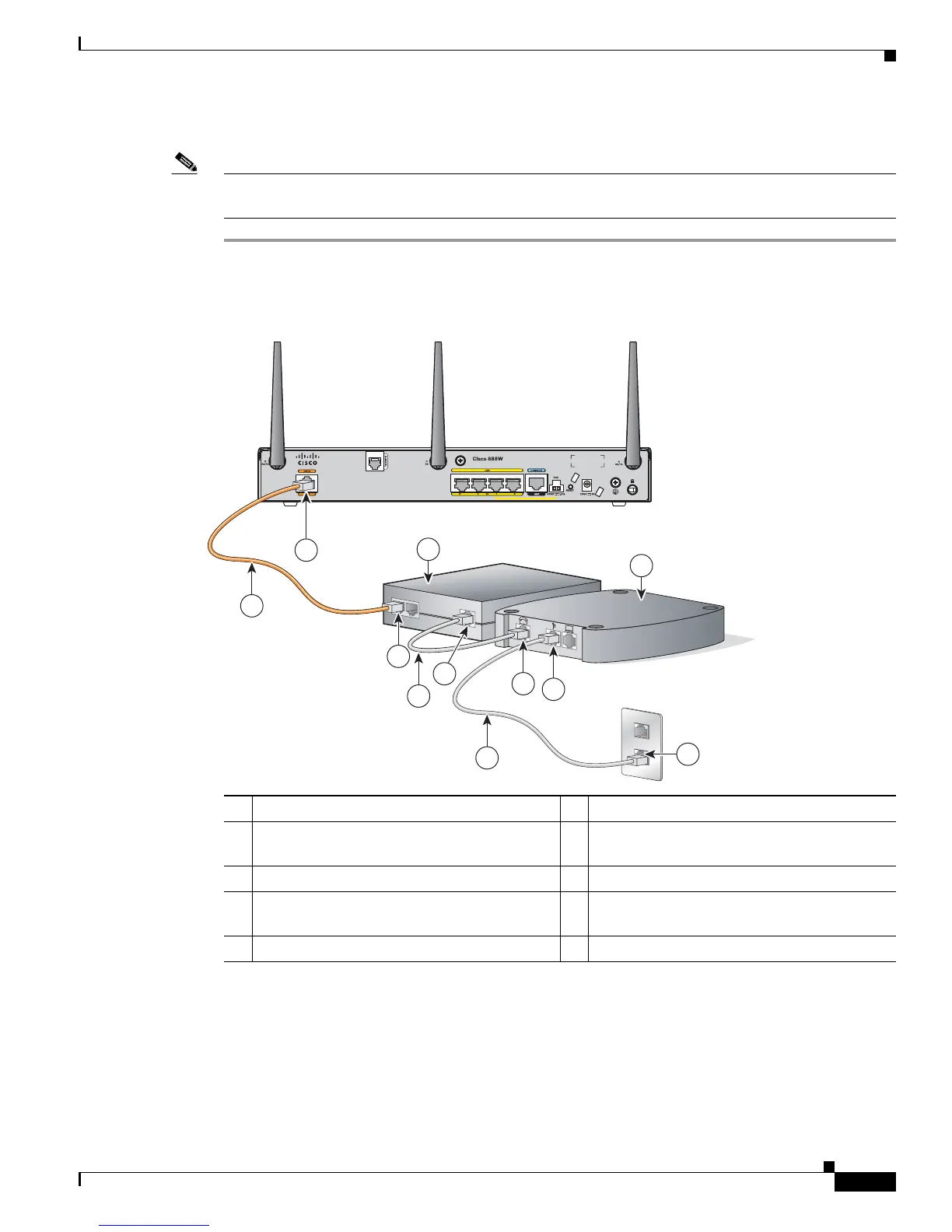

Figure 3-25 Connecting the Data BRI Port to the ISDN Line
Step 2 Connect the other end of the orange ISDN S/T cable to the S/T port on the NT1 box.
Step 3 Connect the first unshielded CAT 5 cable from the U-port on the NT1 box to the telephone line port on
the splitter.
1 Data BRI port on the router 6 U-port on the NT1 box
2 ISDN S/T cable 7 xDSL splitter (provided by the xDSL service
provider)
3 Network termination 1 (NT1) box 8 Telephone line port on the splitter
4 S/T port on the NT1 box 9 Telecommunication service port on the
splitter
5 Unshielded CAT 5 cable 10 Wall jack
231991
3
1
4
2
10
6
9
8
7
5
5

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
