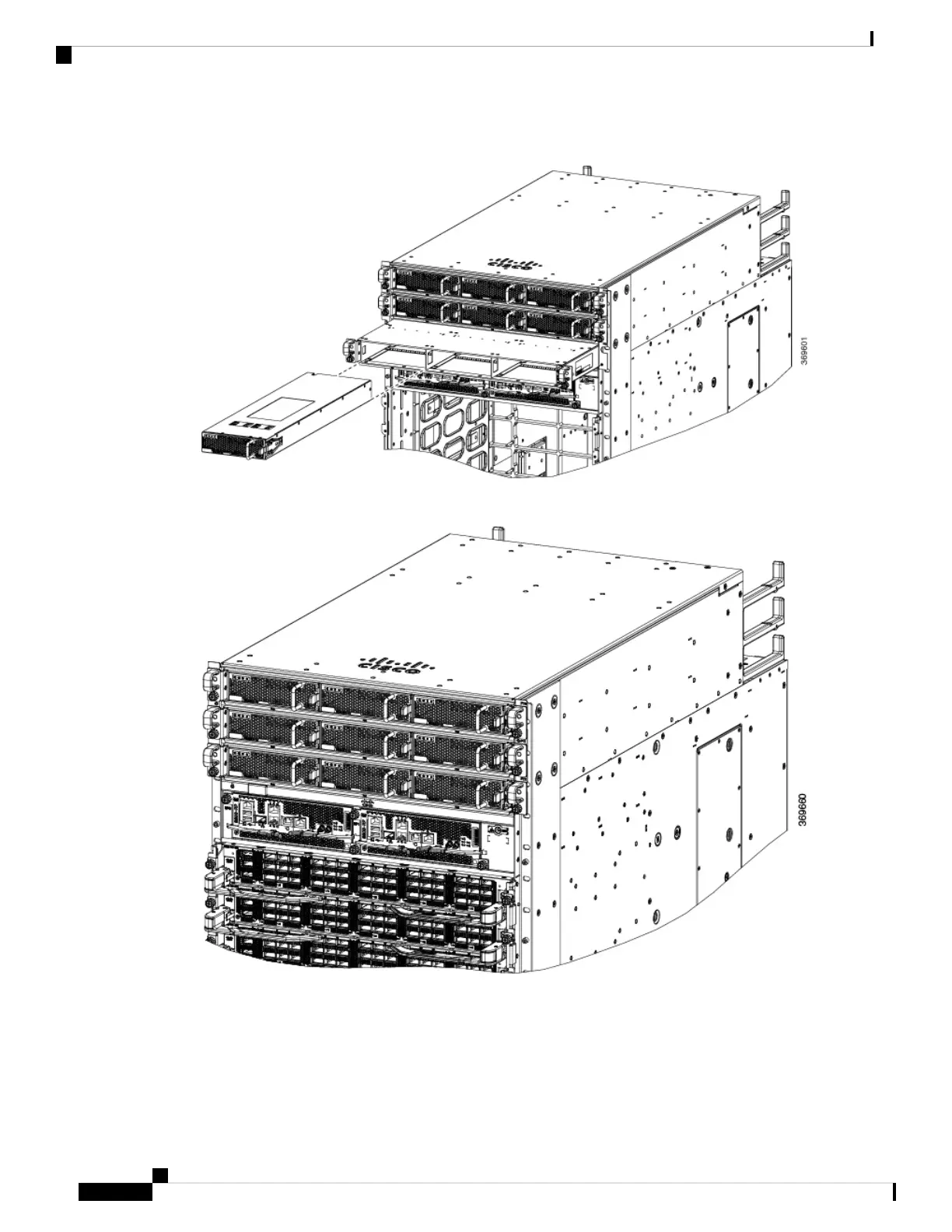

Figure 96: HV Power Supply on Tray
Figure 97: HV Power Supply Trays
Step 4 Verify that the Saf-D-Grid plug is plugged in completely to secure the built-in retaining latch.
Saf-D-Grid plug has a retaining latch that must be depressed and gently pulled to release the plug
from the receptacle.
Note
Hardware Installation Guide for Cisco 8800 Series Routers
132
Replace Chassis Components
Replace HVAC and HVDC Power Module
