Step 6
Repeat Step 4 through Step 5 for the remaining DC input power source wire and the ground wire. This figure shows the
wiring completed for a terminal block plug.

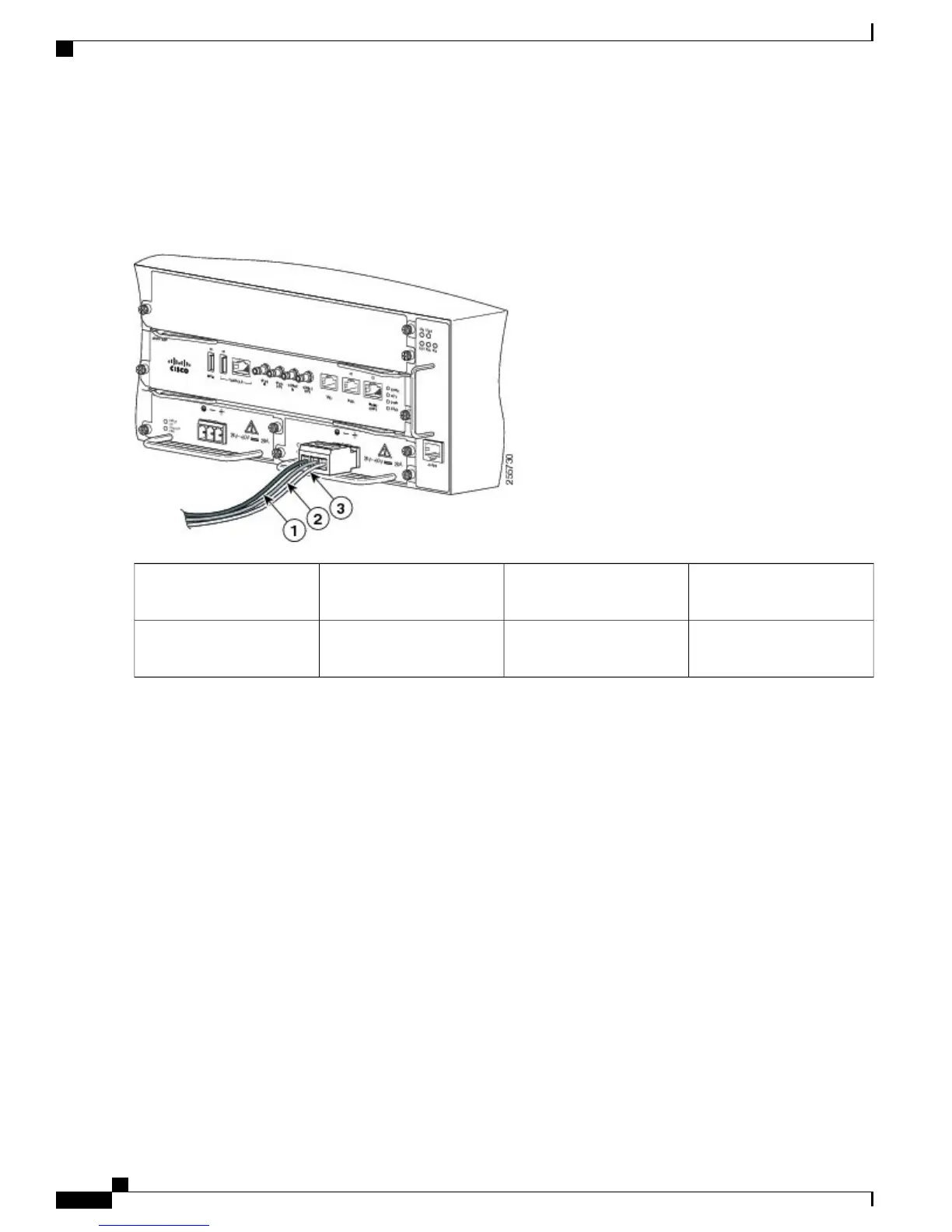

Figure 21: Inserting the DC Power Supply Terminal Block Plug in the Block Header
DC power supply positive
(+) lead wire
3DC power supply ground
lead wire
1
DC power supply negative
(–) lead wire
2
Secure the wires coming in from the terminal block plug so that they cannot be disturbed by casual contact.Caution
