Step 4
Slide the retainer through the other latches to lock it.

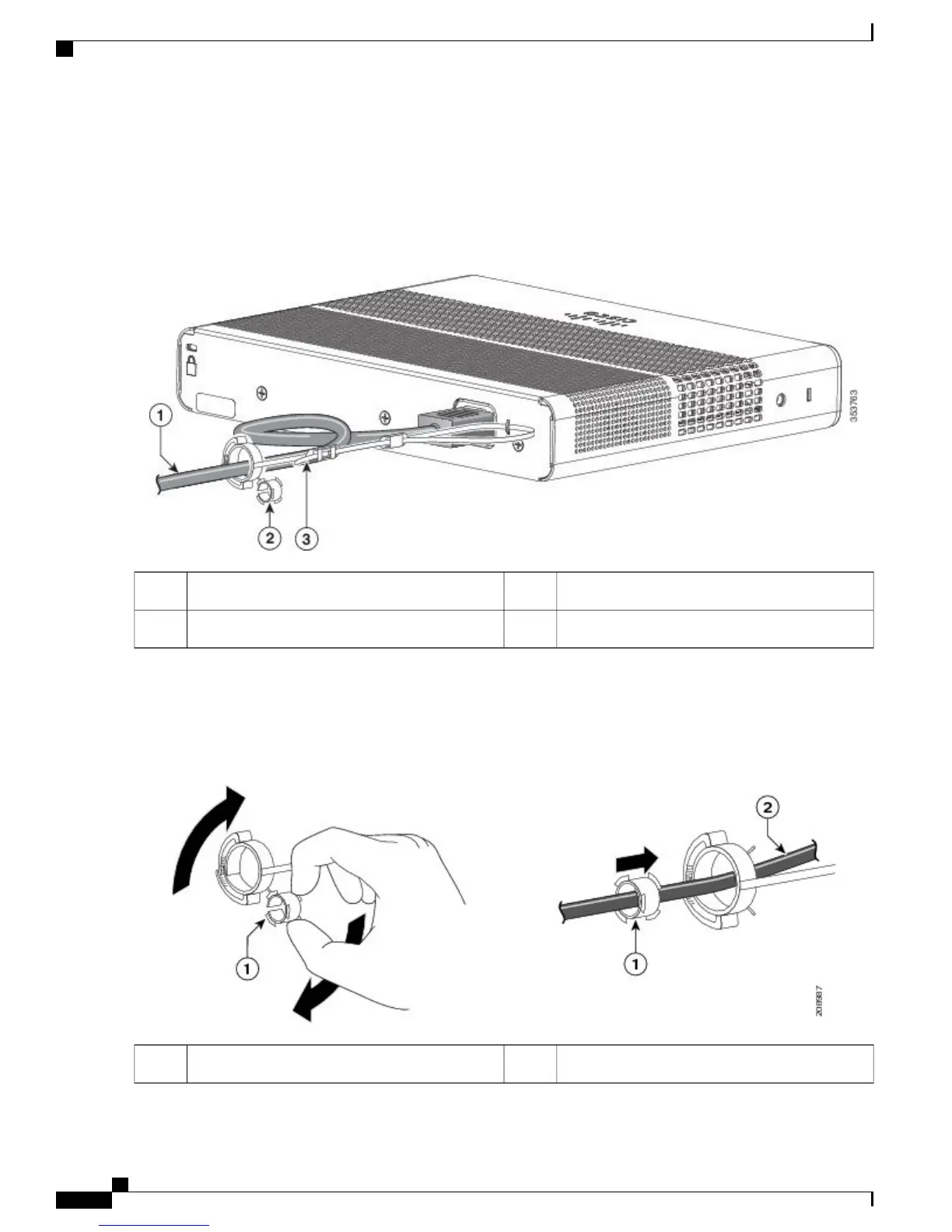

Figure 32: Locking the Retainer
Latches3AC power cord1
Smaller sleeve for thin power cords2
Step 5
(Optional) Use the small sleeve for thin power cords. Use the small sleeve to provide greater stability for thin cords.
Detach the sleeve, and slide it over the power cord.
Figure 33: Sleeve Around the Power Cord
AC power cord2Smaller sleeve for thin power cords1
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
38
Switch Installation
Installing the Power Cord Retainer (Optional)
