Catalyst 2970 Switch Hardware Installation Guide
OL-6422-01
Chapter 2 Switch Installation
Installing the Switch

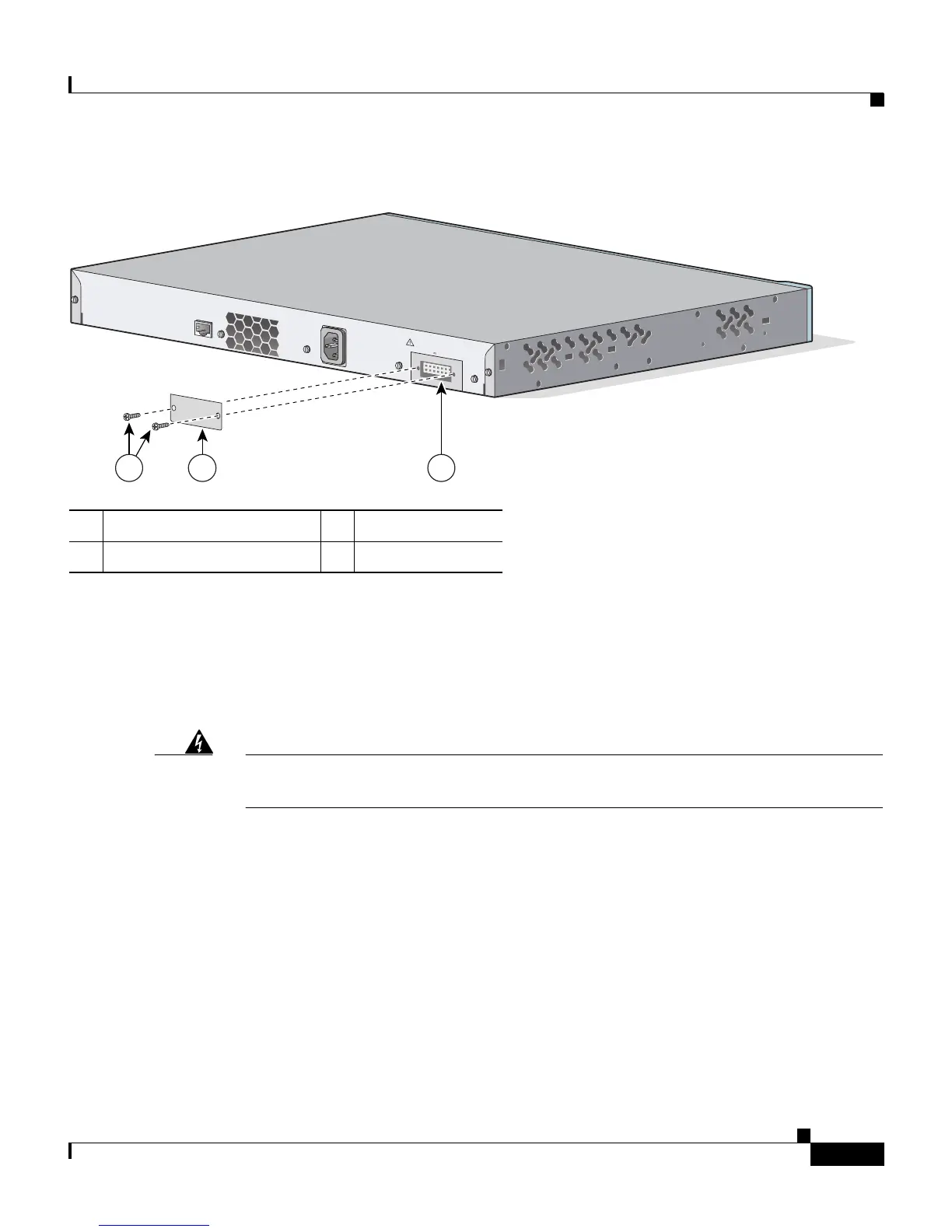

Figure 2-18 Attaching the RPS Connector Cover on the Catalyst 2970 Switch
Mounting the Switch on a Wall
For the best support of the switch and cables, make sure the switch is attached
securely to wall studs or to a firmly attached plywood mounting backboard.
Mount the switch with the front panel facing up, as shown in Figure 2-19.
Warning
To comply with safety regulations, mount the switches on a wall with the front
panel facing up.
1 Phillips pan-head screws 3 RPS connector
2 RPS connector cover
RATING
100-200V ~
1.6A-0.9A, 50-60 HZ
DC INPUTS FOR REMOTE
POWER SUPPLY
SPECIFIED IN MANUAL
+12v @13A
CONSOLE
21 3
87634
