Appendix B Connector and Cable Specifications
Connector Specifications
B-4
Catalyst 2970 Switch Hardware Installation Guide
OL-6422-01

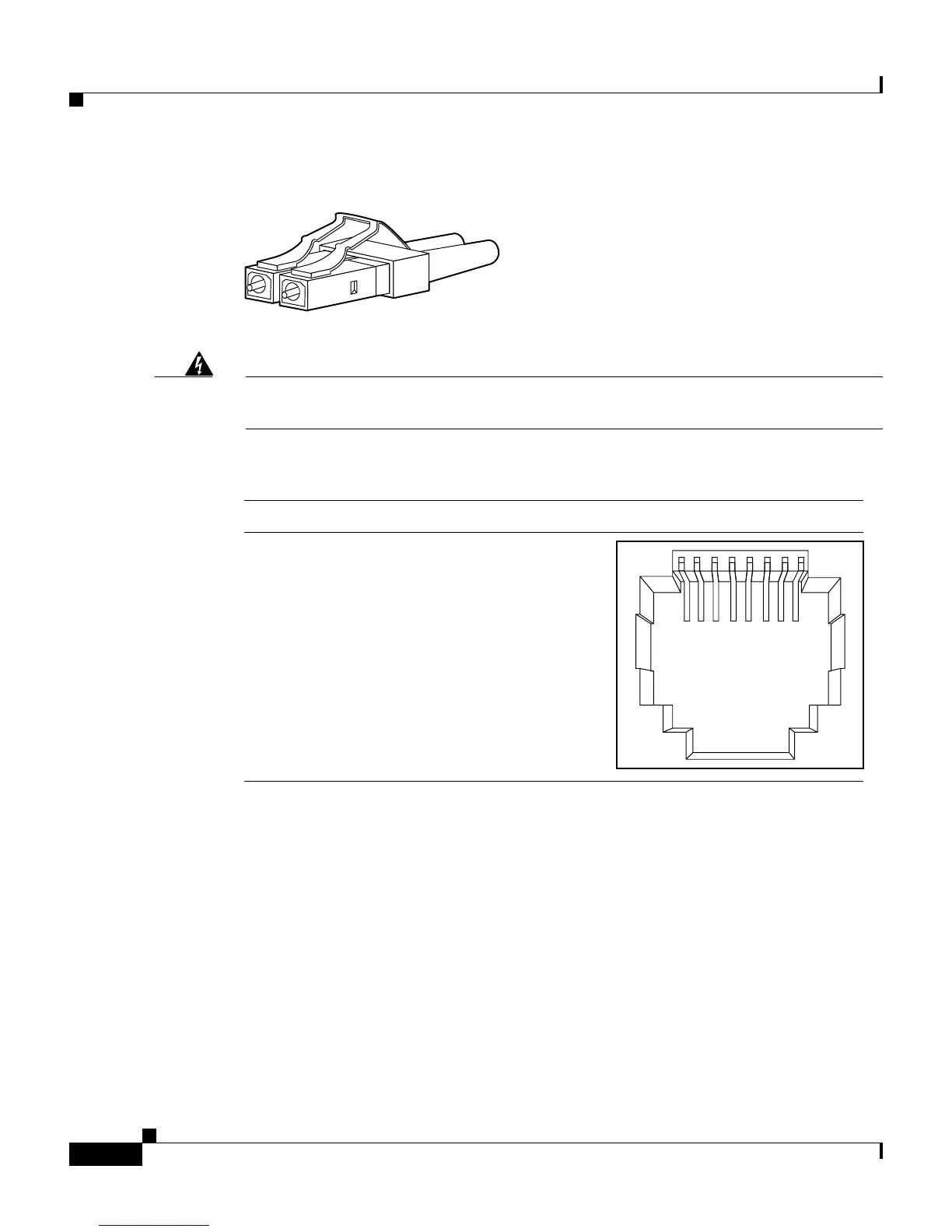

Figure B-2 Fiber-Optic SFP Module LC Connector
Warning Invisible laser radiation may be emitted from disconnected fibers or
connectors. Do not stare into beams or view directly with optical instruments.
Figure B-3 Copper SFP Module RJ-45 Connector
Console Port
The console port uses an 8-pin RJ-45 connector, which is described in Table B-1
and Table B-2. The supplied RJ-45-to-DB-9 adapter cable is used to connect the
console port of the switch to a console PC. You need to provide a RJ-45-to-DB-25
female DTE adapter if you want to connect the switch console port to a terminal.
You can order a kit (part number ACS-DSBUASYN=) containing that adapter
from Cisco. For console port and adapter pinout information, see Table B-1 and
Table B-2.
58476
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
